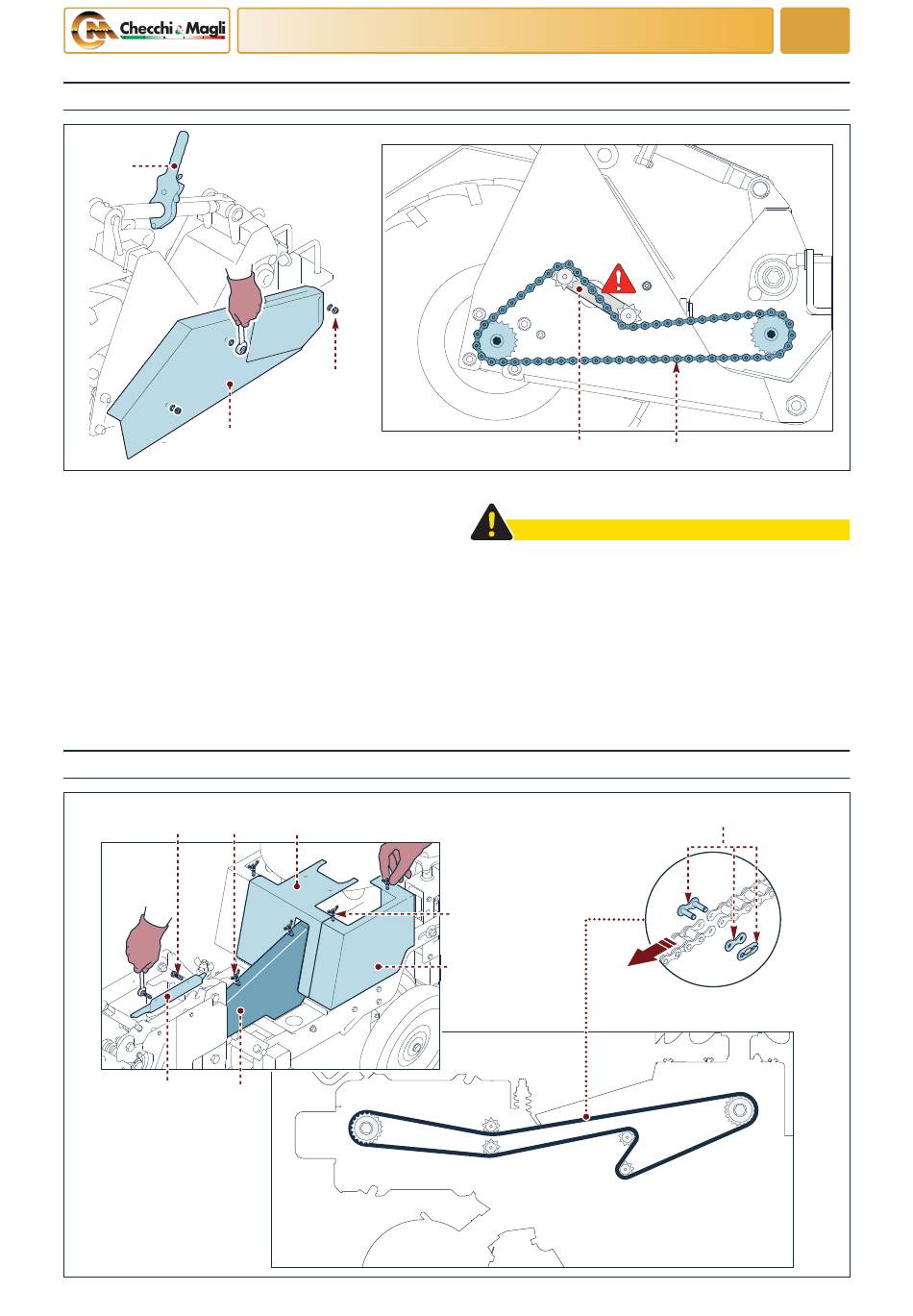

Replacing the driving wheel chain (Rapid Shift)
C
B
UN41-0511MM
For this operation, proceed as outlined below.
1) Move the lever (C) to lift the wheel in order to slacken
off the chain.
2) Unscrew the nuts (A).
3) Remove the casing (B).
Replacing the planting unit chain
A C
B
D
UN41-0512MM
English language
INFORMATION CONCERNING REPLACEMENTS
A
G
E
F
40
D
4) Move the tensioner (D) and remove the chain (E).
CAUTION
The tensioner could move unexpectedly, causing in-
jury to the hands.
Proceed with the utmost caution.
5) Fit a new chain.
6) Fit the casing (B).
7) Tighten the nuts (A).
