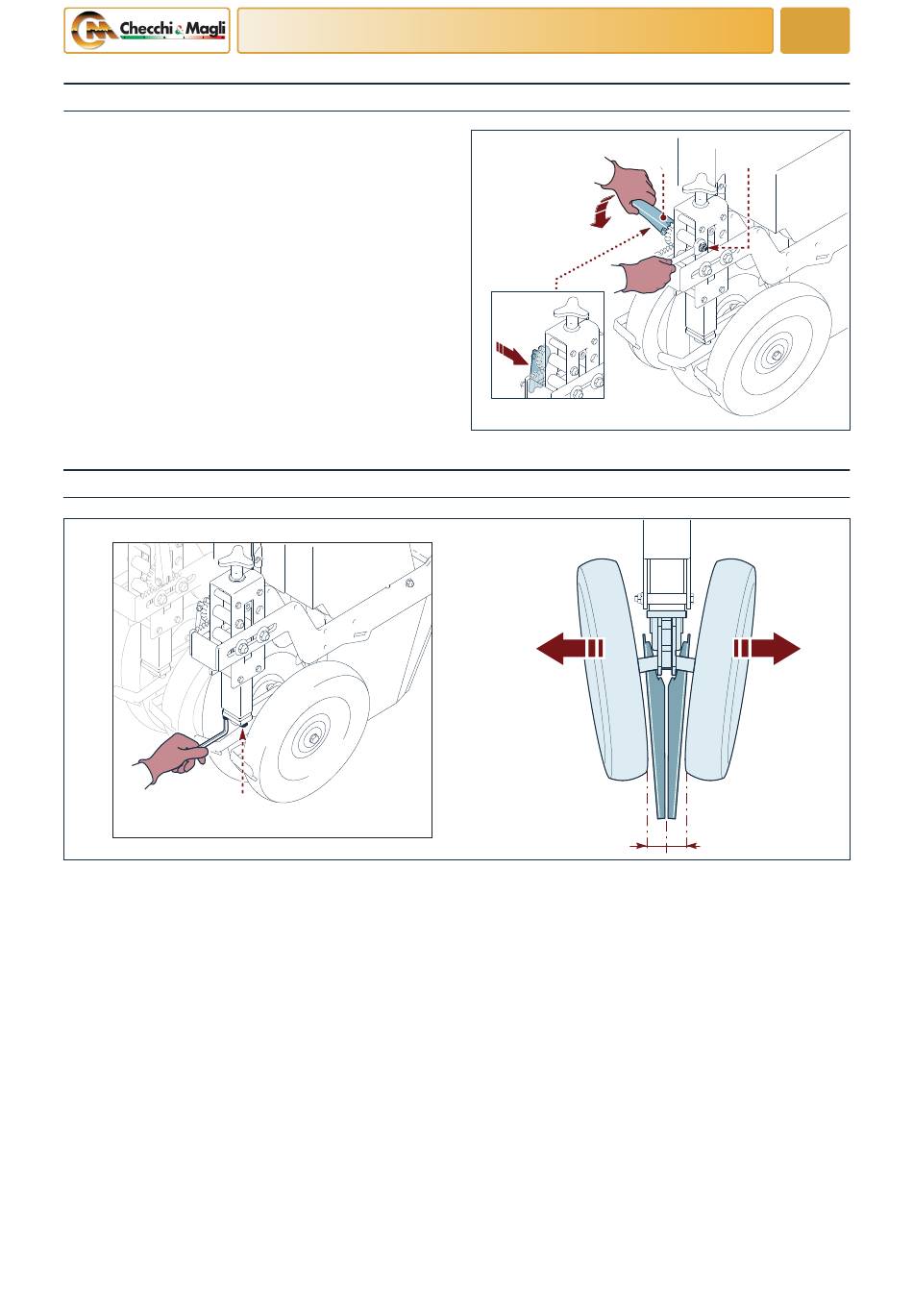

Adjusting the packing wheel lever tightness
The lever is used to lock the packing wheels in the re-
quired position.
Proceed as outlined below.
1) Lower the lever (B).
2) Turn the nut (A) to ensure optimum locking.
3) After adjustment, return the lever (B) to the original
position.
Adjusting the symmetry between the packing wheels and the ploughshare
UN41-0486MM
Because of their incorrect position, the packing wheels
may rub against the share.
For adjustments, proceed as outlined below.
1) Loosen the screws (A).
English language
ADJUSTMENT INFORMATION
A
UN41-0481MM
2) Centre the packing wheels with the ploughshare.
3) Tighten the screws (A).
Carry out the same operations to adjust the packing
wheels of the other planting units installed.
14
5
A
B
= =
