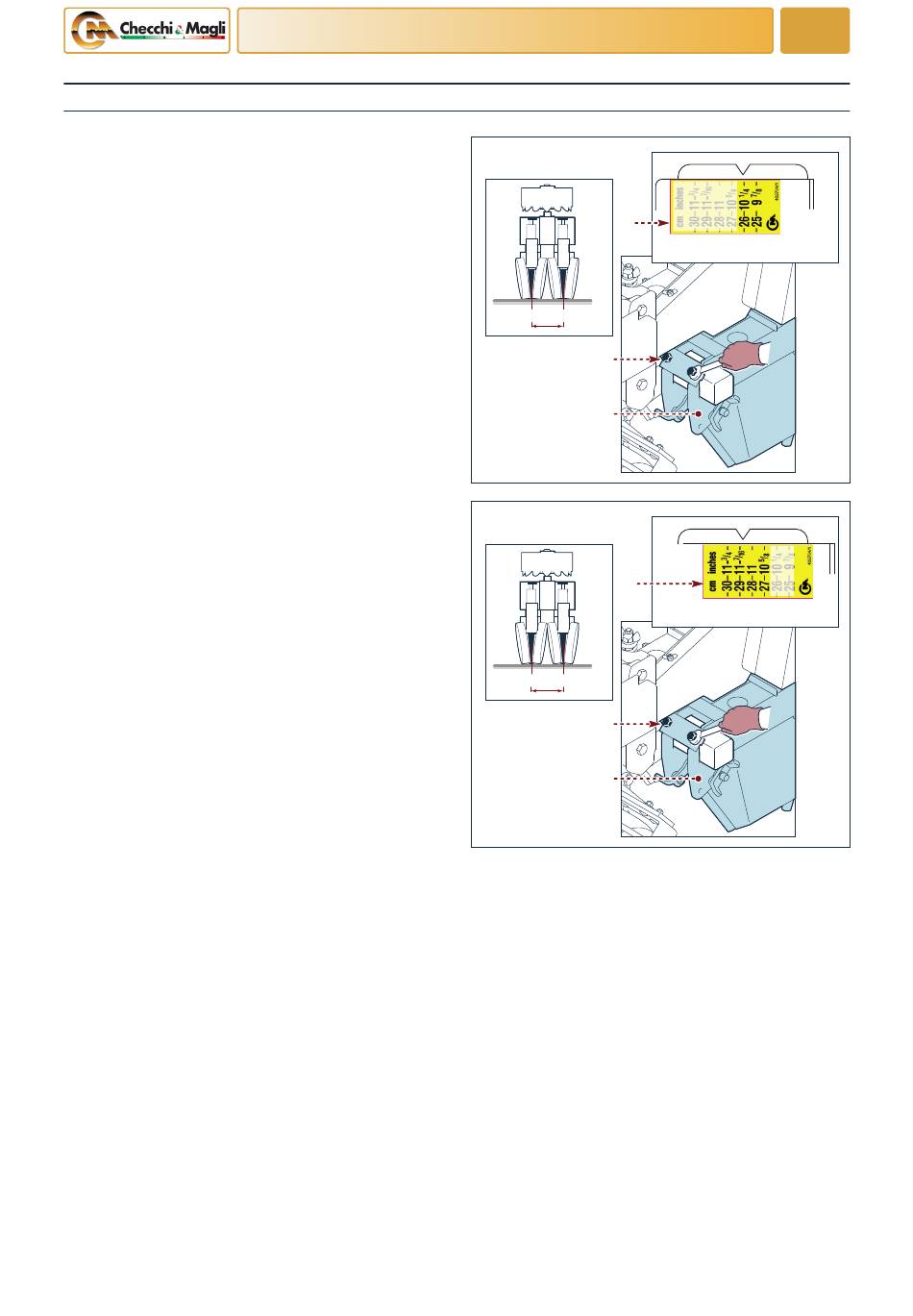

Adjusting the distance between dual rows
- Adjustment of dual rows 25 to 26 and vice versa
Proceed as outlined below.
1) Loosen the screws (A).
2) Slide the side frame (B) along the support until the
required dual row positioning is obtained.
The dual row is shown by the plate (C).
3) Tighten the screws (A).
4) Repeat the same procedure to adjust the other side
frame on the planting unit.
- Adjust the float wheels accordingly (see "Adjusting the
load and position of the float wheels").
- Adjustment of dual rows within the 27 to 30 range and
vice versa
Proceed as outlined below.
1) Loosen the screws (A).
2) Slide the side frame (B) along the support until the
required dual row positioning is obtained.
The dual row is shown by the plate (C).
3) Tighten the screws (A).
4) Repeat the same procedure to adjust the other side
frame on the planting unit.
- Adjust the float wheels accordingly (see "Adjusting the
load and position of the float wheels").
English language
ADJUSTMENT INFORMATION
25 - 26
UN41-0493MM
27 - 28 - 29 - 30
UN41-0516NM
18
C
A
B
C
A
B
