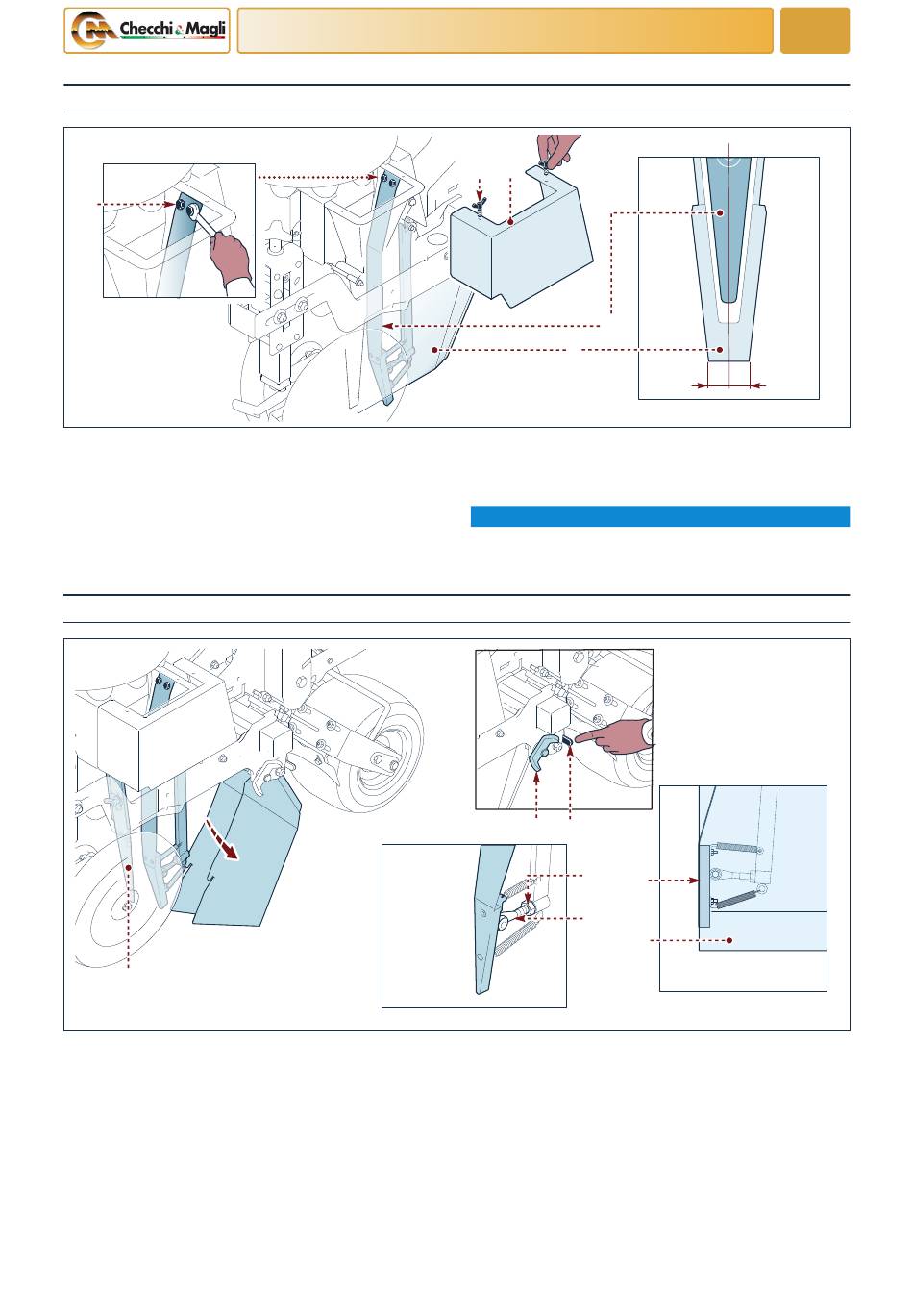

Symmetrical adjustment of the flexible plate with the ploughshare
D
UN41-0491MM
For adjustments, carry out the procedure outlined.
1) Unscrew the screws (A).
2) Remove the casing (B).
3) Loosen the screws (D).
4) Centre the flexible plate (E) in relation to the share
(F).
Adjusting the flexible plate position with the ploughshare
H
UN41-0492MM
For adjustments, proceed as outlined below.
1) Loosen the wing nut (A).
2) Turn the lock lever (B).
3) Push the share forwards and turn it so it is facing
downwards.
4) Loosen the nut (E).
5) Turn the element (D) to position the flexible plate
(L) with the ploughshare (G) as shown in the figure.
English language
ADJUSTMENT INFORMATION
B
A
5) Tighten the screws (D).
6) Position the casing (B).
7) Tighten the screws (A).
NOTICE
Check that the flexible plate does not rub against the
ploughshare.
A
6) Tighten the nut (E).
7) Refit the share in the work position.
8) Check that the Plant Control device (H) is inside the
share.
9) Make sure that the share is secured in place with the
lock lever (B).
10) Tighten the wing nut (A).
