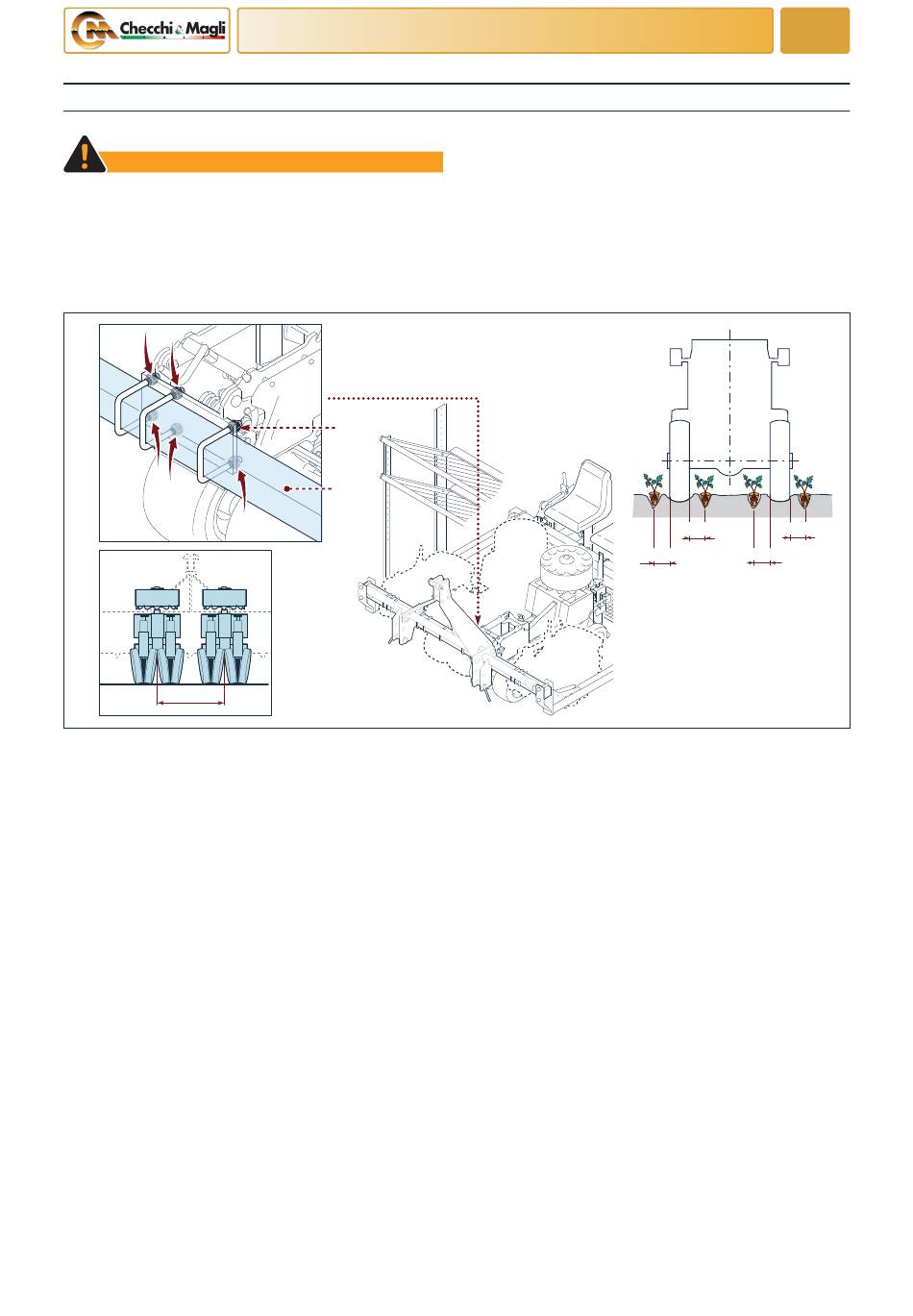

Adjusting the centre to centre of dual rows
WARNING
Secure the work vehicle in position (lifted off the
ground) with external means (trestles, etc.).
Do not stand under the hoisted machine unless it is
suitably secured in position.
D
UN41-0494MM
Proceed as outlined below.
1) Lift the work vehicle slightly off the ground.
2) Loosen the nuts (A).
3) Slide the planting units along the frame (B) until
English language
ADJUSTMENT INFORMATION
The work unit is supplied with the "center to center of
dual rows" requested at the time of order.
For centre to centre distances of dual rows which cannot
be achieved by simply adjusting the planting units con-
tact an authorised service centre or the manufacturer for
details.
A
B
the required centre to centre of dual rows (D) is ob-
tained.
4) Adjust the planting units so that the seedlings are
kept (C) 10 - 12 cm away from tractor wheel.
20
10 - 12
10 - 12
C
cm
cm
10 - 12
10 - 12
C
C
cm cm
