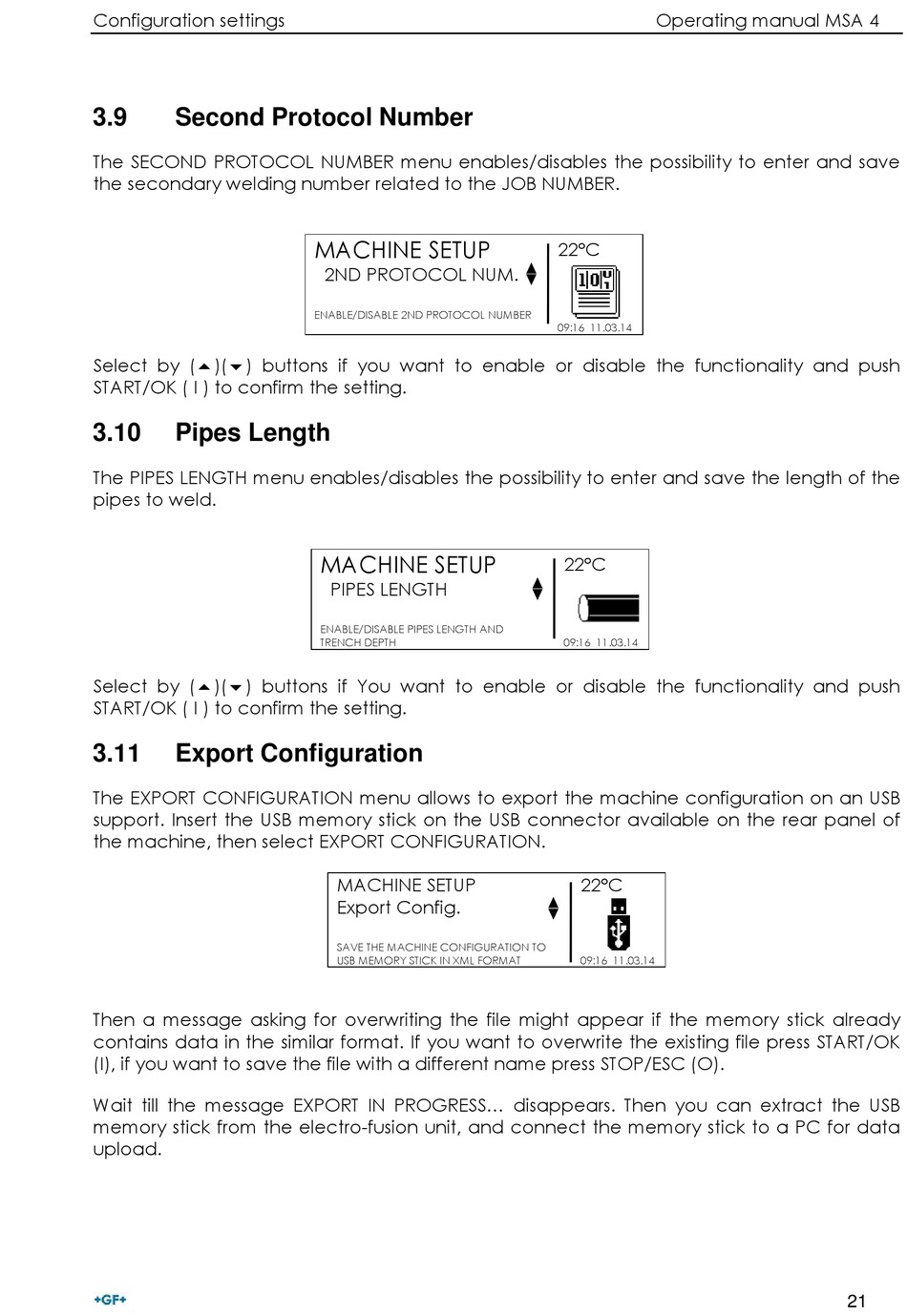

Configuration settings
3.9

Second Protocol Number

The SECOND PROTOCOL NUMBER menu enables/disables the possibility to enter and save
the secondary welding number related to the JOB NUMBER.
Select by ()() buttons if you want to enable or disable the functionality and push
START/OK ( I ) to confirm the setting.
3.10

Pipes Length

The PIPES LENGTH menu enables/disables the possibility to enter and save the length of the
pipes to weld.
Select by ()() buttons if You want to enable or disable the functionality and push
START/OK ( I ) to confirm the setting.
3.11

Export Configuration

The EXPORT CONFIGURATION menu allows to export the machine configuration on an USB
support. Insert the USB memory stick on the USB connector available on the rear panel of
the machine, then select EXPORT CONFIGURATION.
Then a message asking for overwriting the file might appear if the memory stick already
contains data in the similar format. If you want to overwrite the existing file press START/OK
(I), if you want to save the file with a different name press STOP/ESC (O).
Wait till the message EXPORT IN PROGRESS... disappears. Then you can extract the USB
memory stick from the electro-fusion unit, and connect the memory stick to a PC for data
upload.

MACHINE SETUP

2ND PROTOCOL NUM.
ENABLE/DISABLE 2ND PROTOCOL NUMBER
MACHINE SETUP
PIPES LENGTH
ENABLE/DISABLE PIPES LENGTH AND
TRENCH DEPTH
MACHINE SETUP
Export Config.
SAVE THE MACHINE CONFIGURATION TO
USB MEMORY STICK IN XML FORMAT
