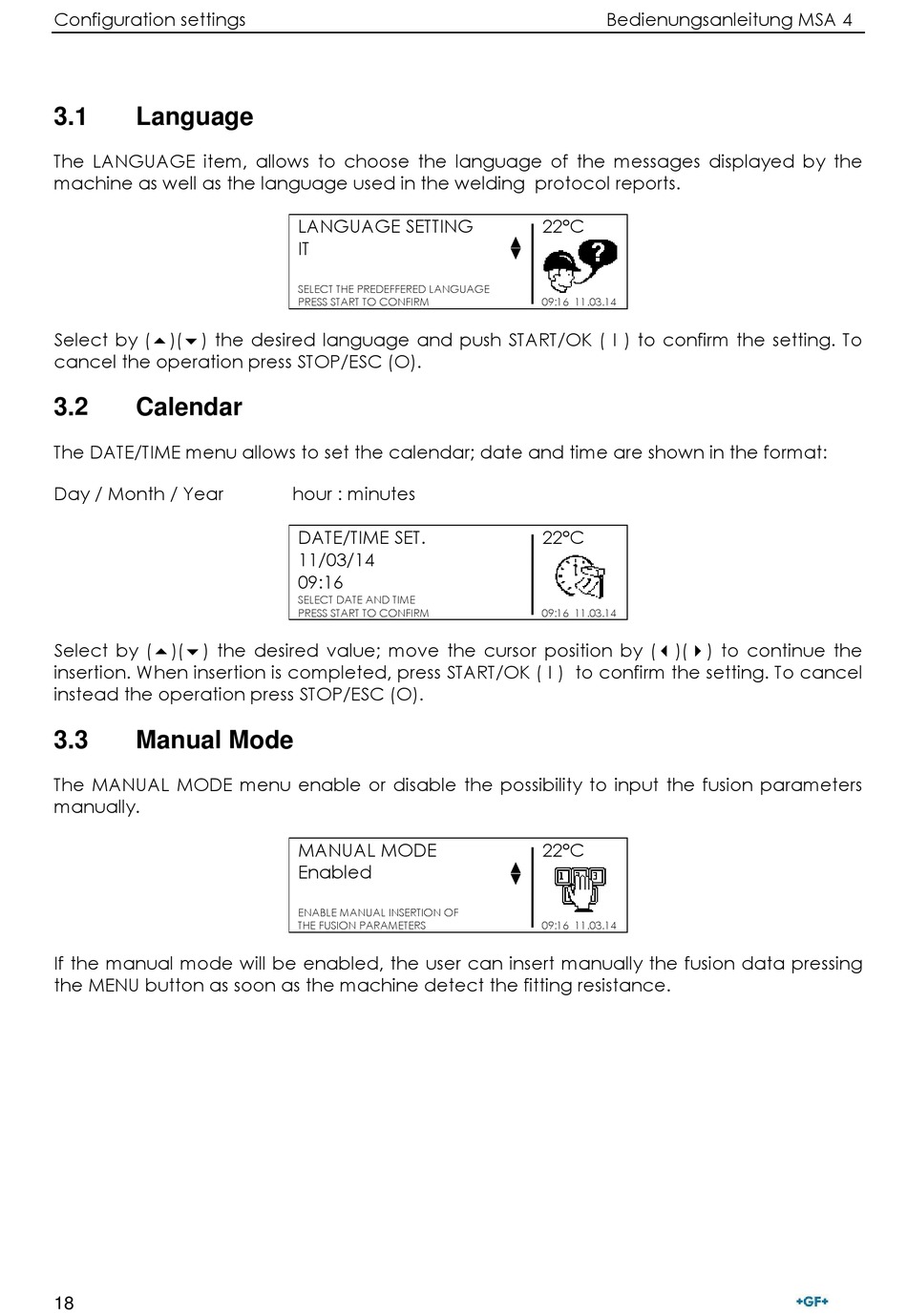

Configuration settings
3.1

Language

The LANGUAGE item, allows to choose the language of the messages displayed by the
machine as well as the language used in the welding protocol reports.
Select by ()() the desired language and push START/OK ( I ) to confirm the setting. To
cancel the operation press STOP/ESC (O).
3.2

Calendar

The DATE/TIME menu allows to set the calendar; date and time are shown in the format:
Day / Month / Year
Select by ()() the desired value; move the cursor position by ()() to continue the
insertion. When insertion is completed, press START/OK ( I ) to confirm the setting. To cancel
instead the operation press STOP/ESC (O).
3.3

Manual Mode

The MANUAL MODE menu enable or disable the possibility to input the fusion parameters
manually.
If the manual mode will be enabled, the user can insert manually the fusion data pressing
the MENU button as soon as the machine detect the fitting resistance.
18
LANGUAGE SETTING
IT
SELECT THE PREDEFFERED LANGUAGE
PRESS START TO CONFIRM
hour : minutes
DATE/TIME SET.
11/03/14
09:16
SELECT DATE AND TIME
PRESS START TO CONFIRM
MANUAL MODE
Enabled
ENABLE MANUAL INSERTION OF
THE FUSION PARAMETERS
Bedienungsanleitung MSA 4
22°C
09:16 11.03.14
22°C
09:16 11.03.14
22°C
09:16 11.03.14
