Fusion process

The GPS coordinates are visible on request, after the warm-up time, to the user. To see
them, just push the () button, when the machine is in stand by state (means the display is
showing the "CONNECT FITTING!" message). Then the display will show latitude, longitude,
altitude of the current location.
STOP/ESC (O) button will allow to go back to the main page.

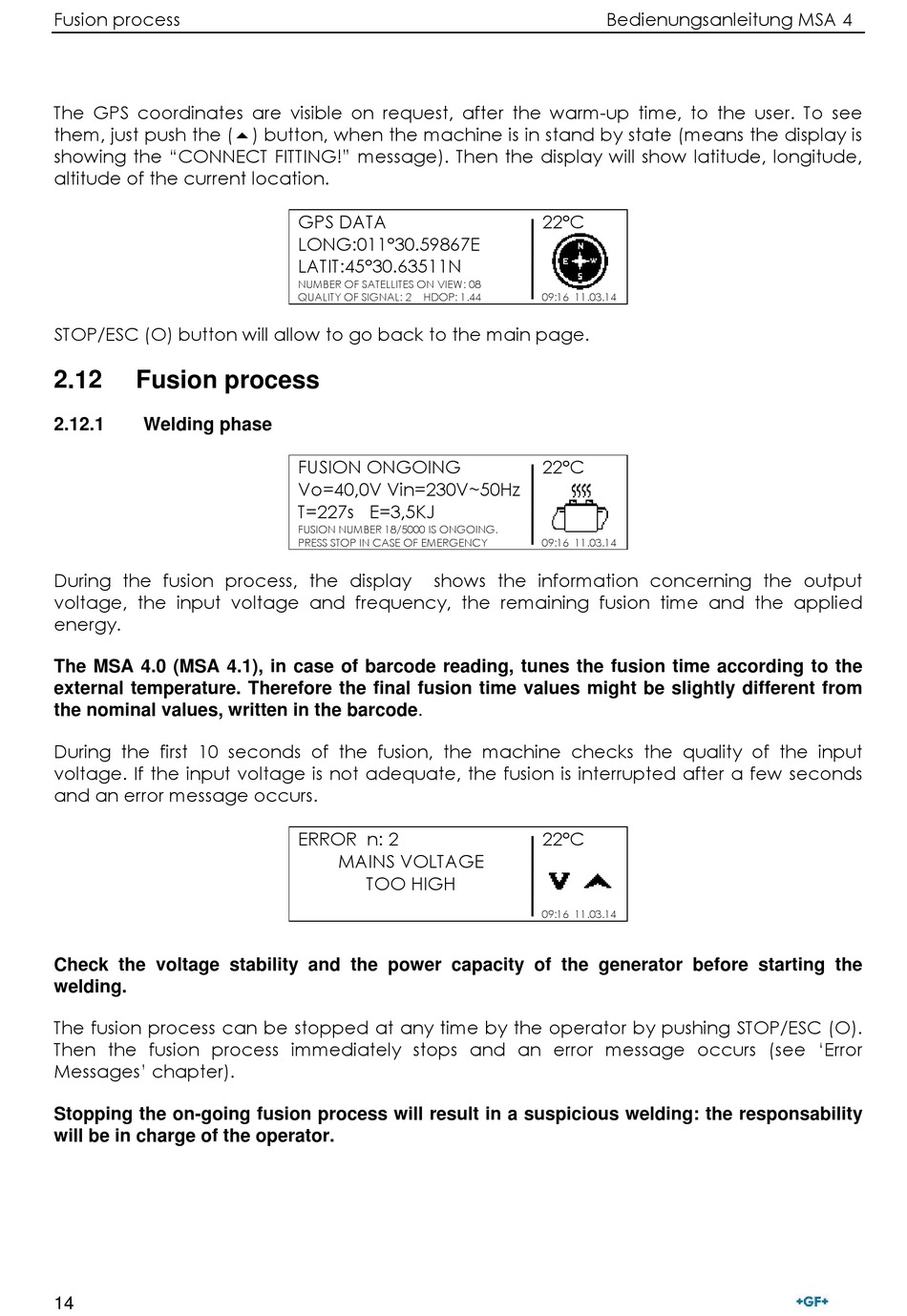

2.12 Fusion process
2.12.1

Welding phase

During the fusion process, the display
voltage, the input voltage and frequency, the remaining fusion time and the applied
energy.
The MSA 4.0 (MSA 4.1), in case of barcode reading, tunes the fusion time according to the
external temperature. Therefore the final fusion time values might be slightly different from
the nominal values, written in the barcode.
During the first 10 seconds of the fusion, the machine checks the quality of the input
voltage. If the input voltage is not adequate, the fusion is interrupted after a few seconds
and an error message occurs.
Check the voltage stability and the power capacity of the generator before starting the
welding.
The fusion process can be stopped at any time by the operator by pushing STOP/ESC (O).
Then the fusion process immediately stops and an error message occurs (see 'Error
Messages' chapter).
Stopping the on-going fusion process will result in a suspicious welding: the responsability
will be in charge of the operator.
14
GPS DATA
LONG:011°30.59867E
LATIT:45°30.63511N
NUMBER OF SATELLITES ON VIEW: 08
QUALITY OF SIGNAL: 2 HDOP: 1.44
FUSION ONGOING
Vo=40,0V Vin=230V~50Hz
T=227s E=3,5KJ
FUSION NUMBER 18/5000 IS ONGOING.
PRESS STOP IN CASE OF EMERGENCY
shows the information concerning the output
ERROR n: 2
MAINS VOLTAGE
TOO HIGH
Bedienungsanleitung MSA 4
22°C
09:16 11.03.14
22°C
09:16 11.03.14
22°C
09:16 11.03.14
