Barcode Reader

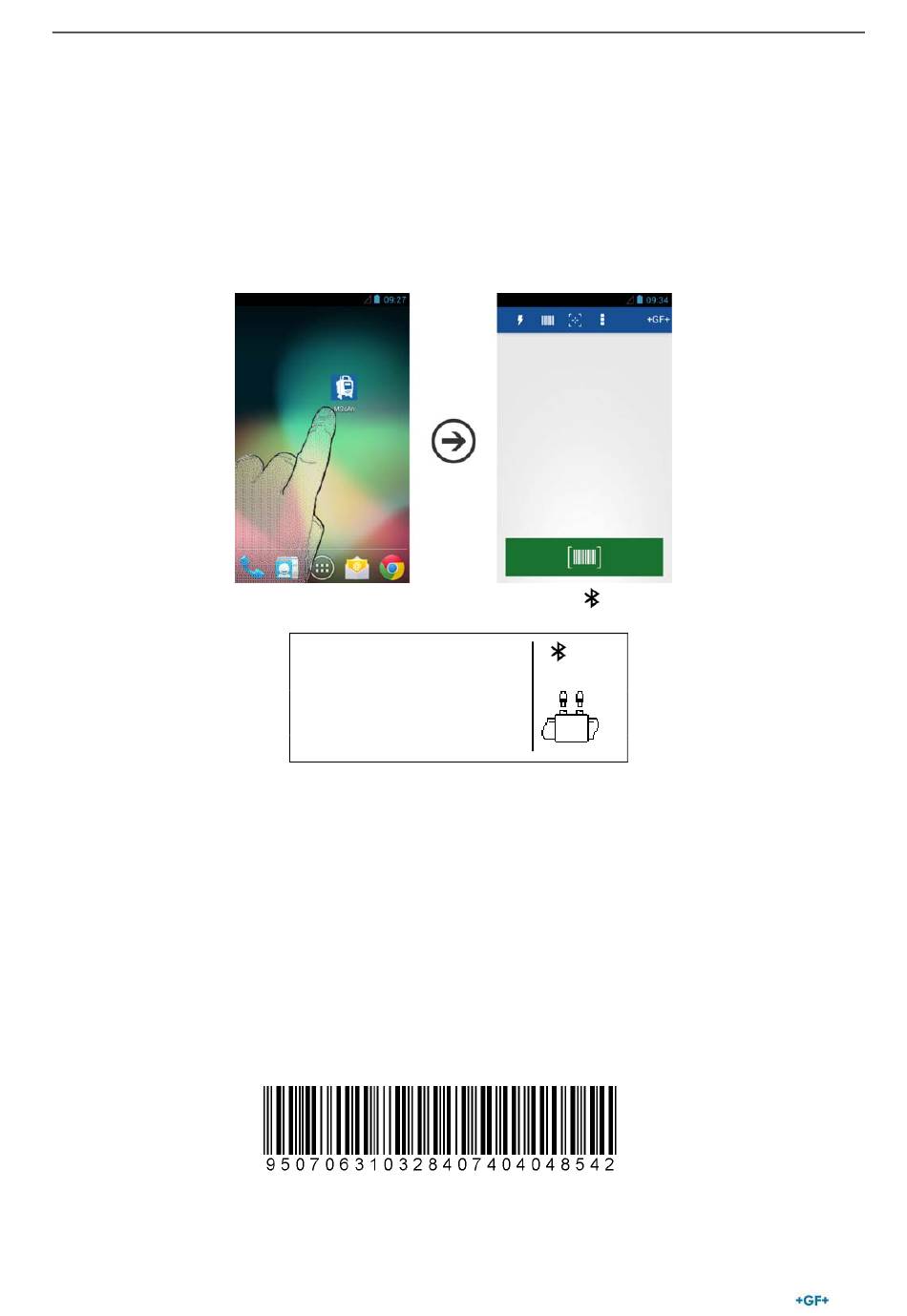

MSA 4.0 has a standard barcode scanner. The MSA 4.1 has a wireless scanner, based on a
rugged PDA.
The wireless scanner communicates via Bluetooth with the electro-fusion unit. At the power
on the MSA 4.1 tries to connect to the rugged PDA. To be sure the two devices get in
contact, the operator must launch the MScAn application on the PDA device before.
When the connection is established, the Bluetooth symbol (
Then, when connected to the machine, the scanner enables a quick insertion of welding
and operator parameters by reading the related bar code.
The scanner operates keeping it 10-20cm from the barcode and pushing the button.
The successful read is confirmed by an acoustic tone and a display change.
If the bar code data is not identified immediately, repeat the reading.
To check if the barcode reader is damaged, you can try to read for test purpose the code
printed below, when the machine says ENTER FUSION DATA
If this code is read successfully, the issue is not on the barcode reader.
After use, place the barcode reader into the protective case.
4
CONNECT FITTING!
230 V ~ 50 Hz
CONNECT THE FITTING TO THE FUSION
CABLE TO START THE WELDING PROCESS
Bedienungsanleitung MSA 4
)appears on the display:
22°C
09:14 11.03.14
