Fusion process
If all the steps above are not solving the issue, it is recommended to get assistance from a
service center.
2.5.2

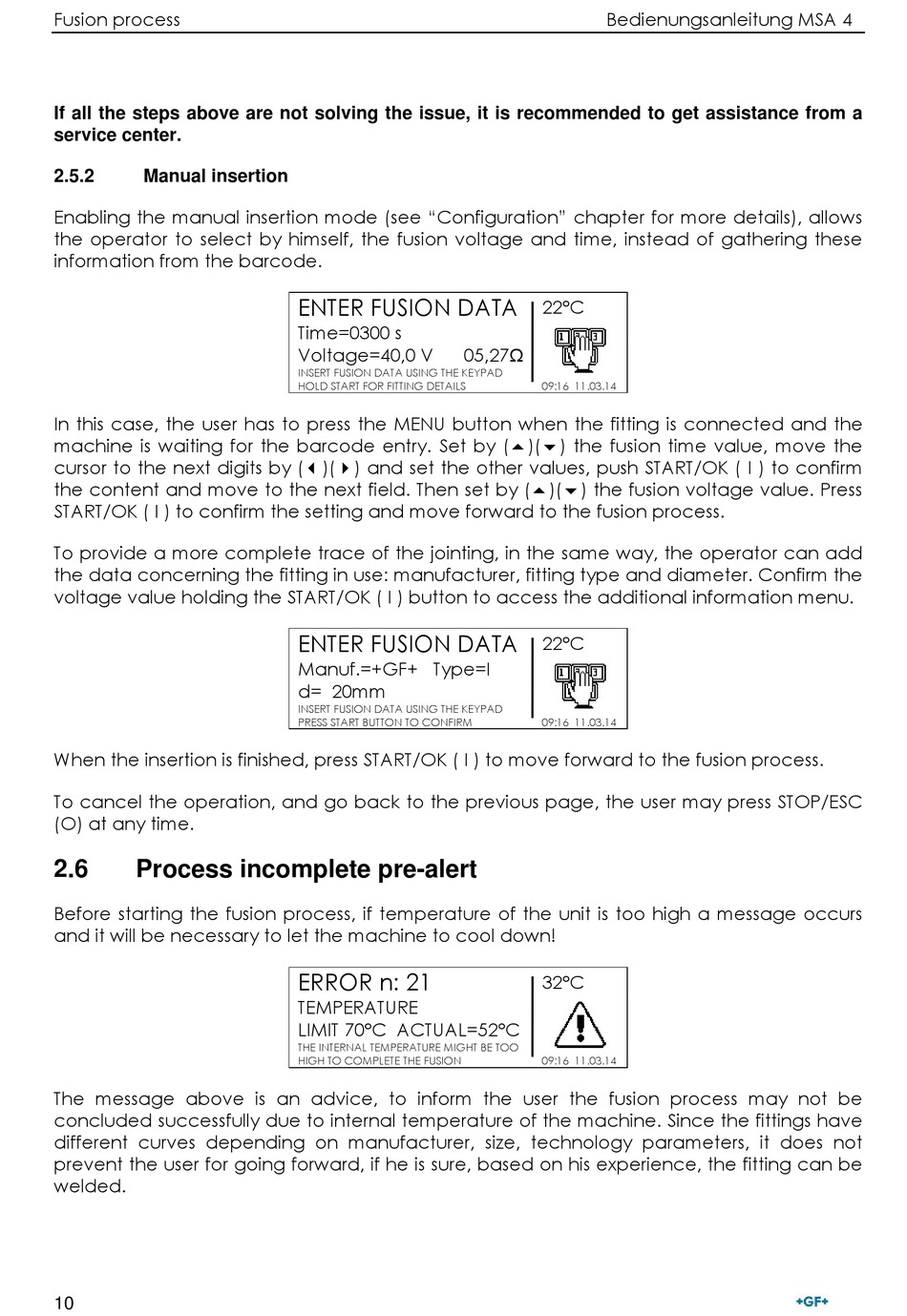

Manual insertion

Enabling the manual insertion mode (see "Configuration" chapter for more details), allows
the operator to select by himself, the fusion voltage and time, instead of gathering these
information from the barcode.
In this case, the user has to press the MENU button when the fitting is connected and the
machine is waiting for the barcode entry. Set by ()() the fusion time value, move the
cursor to the next digits by ()() and set the other values, push START/OK ( I ) to confirm
the content and move to the next field. Then set by ()() the fusion voltage value. Press
START/OK ( I ) to confirm the setting and move forward to the fusion process.
To provide a more complete trace of the jointing, in the same way, the operator can add
the data concerning the fitting in use: manufacturer, fitting type and diameter. Confirm the
voltage value holding the START/OK ( I ) button to access the additional information menu.
When the insertion is finished, press START/OK ( I ) to move forward to the fusion process.
To cancel the operation, and go back to the previous page, the user may press STOP/ESC
(O) at any time.
2.6

Process incomplete pre-alert

Before starting the fusion process, if temperature of the unit is too high a message occurs
and it will be necessary to let the machine to cool down!
The message above is an advice, to inform the user the fusion process may not be
concluded successfully due to internal temperature of the machine. Since the fittings have
different curves depending on manufacturer, size, technology parameters, it does not
prevent the user for going forward, if he is sure, based on his experience, the fitting can be
welded.
10
ENTER FUSION DATA
Time=0300 s
Voltage=40,0 V 05,27Ω
INSERT FUSION DATA USING THE KEYPAD
HOLD START FOR FITTING DETAILS
ENTER FUSION DATA
Manuf.=+GF+ Type=I
d= 20mm
INSERT FUSION DATA USING THE KEYPAD
PRESS START BUTTON TO CONFIRM
ERROR n: 21
TEMPERATURE
LIMIT 70°C ACTUAL=52°C
THE INTERNAL TEMPERATURE MIGHT BE TOO
HIGH TO COMPLETE THE FUSION
Bedienungsanleitung MSA 4
22°C
09:16 11.03.14
22°C
09:16 11.03.14
32°C
09:16 11.03.14
