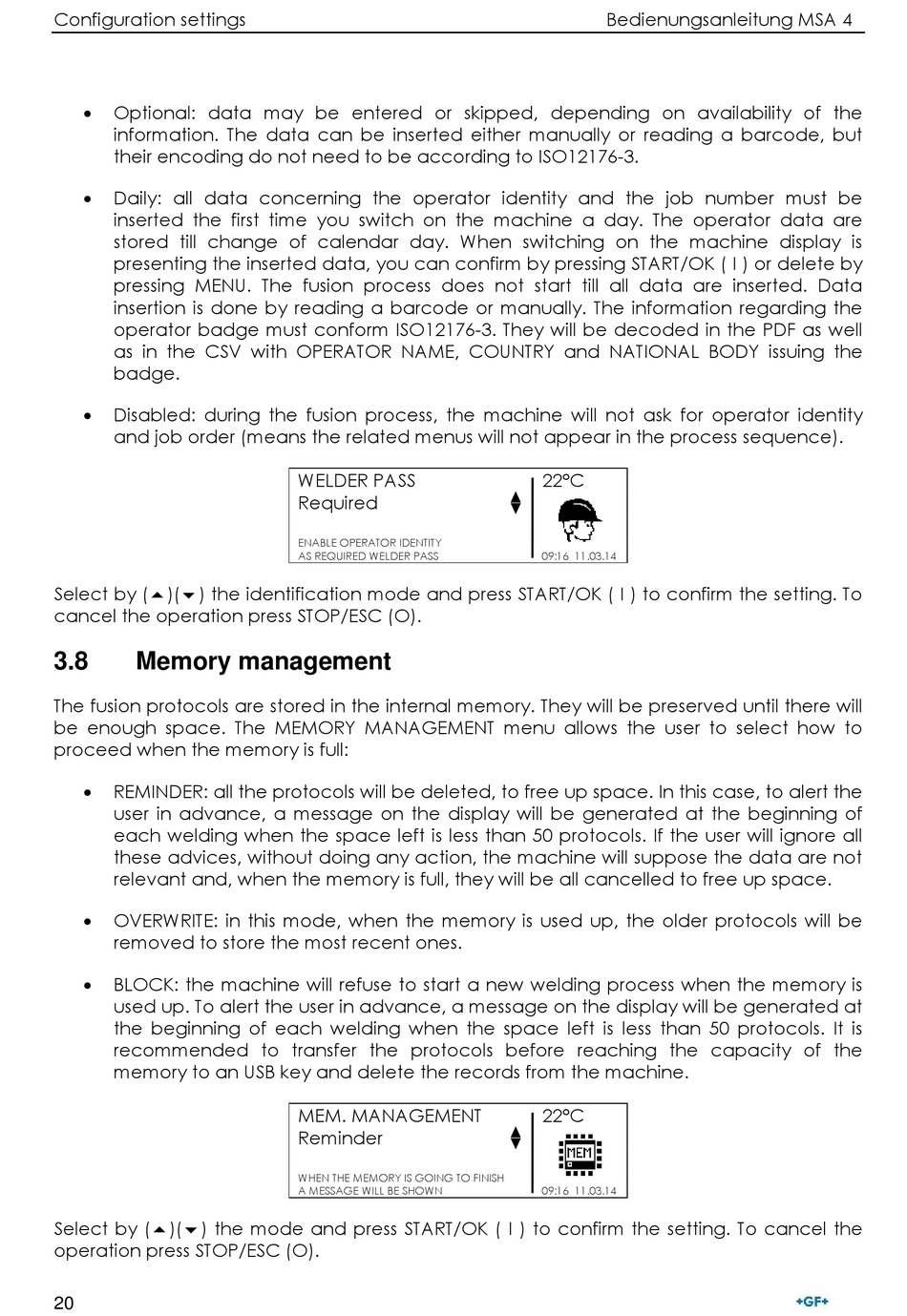

Memory Management - GF MSA 4.0 Bedienungsanleitung

Configuration settings
 Optional: data may be entered or skipped, depending on availability of the
information. The data can be inserted either manually or reading a barcode, but
their encoding do not need to be according to ISO12176-3.
 Daily: all data concerning the operator identity and the job number must be
inserted the first time you switch on the machine a day. The operator data are
stored till change of calendar day. When switching on the machine display is
presenting the inserted data, you can confirm by pressing START/OK ( I ) or delete by
pressing MENU. The fusion process does not start till all data are inserted. Data
insertion is done by reading a barcode or manually. The information regarding the
operator badge must conform ISO12176-3. They will be decoded in the PDF as well
as in the CSV with OPERATOR NAME, COUNTRY and NATIONAL BODY issuing the
badge.
 Disabled: during the fusion process, the machine will not ask for operator identity
and job order (means the related menus will not appear in the process sequence).
Select by ()() the identification mode and press START/OK ( I ) to confirm the setting. To
cancel the operation press STOP/ESC (O).
3.8

Memory management

The fusion protocols are stored in the internal memory. They will be preserved until there will
be enough space. The MEMORY MANAGEMENT menu allows the user to select how to
proceed when the memory is full:
 REMINDER: all the protocols will be deleted, to free up space. In this case, to alert the
user in advance, a message on the display will be generated at the beginning of
each welding when the space left is less than 50 protocols. If the user will ignore all
these advices, without doing any action, the machine will suppose the data are not
relevant and, when the memory is full, they will be all cancelled to free up space.
 OVERWRITE: in this mode, when the memory is used up, the older protocols will be
removed to store the most recent ones.
 BLOCK: the machine will refuse to start a new welding process when the memory is
used up. To alert the user in advance, a message on the display will be generated at
the beginning of each welding when the space left is less than 50 protocols. It is
recommended to transfer the protocols before reaching the capacity of the
memory to an USB key and delete the records from the machine.
Select by ()() the mode and press START/OK ( I ) to confirm the setting. To cancel the
operation press STOP/ESC (O).
20
WELDER PASS
Required
ENABLE OPERATOR IDENTITY
AS REQUIRED WELDER PASS
MEM. MANAGEMENT
Reminder
WHEN THE MEMORY IS GOING TO FINISH
A MESSAGE WILL BE SHOWN
Bedienungsanleitung MSA 4
22°C
09:16 11.03.14
22°C
09:16 11.03.14
