Technical Characteristics; Standards - GF MSA 4.0 Bedienungsanleitung

Technical characteristics

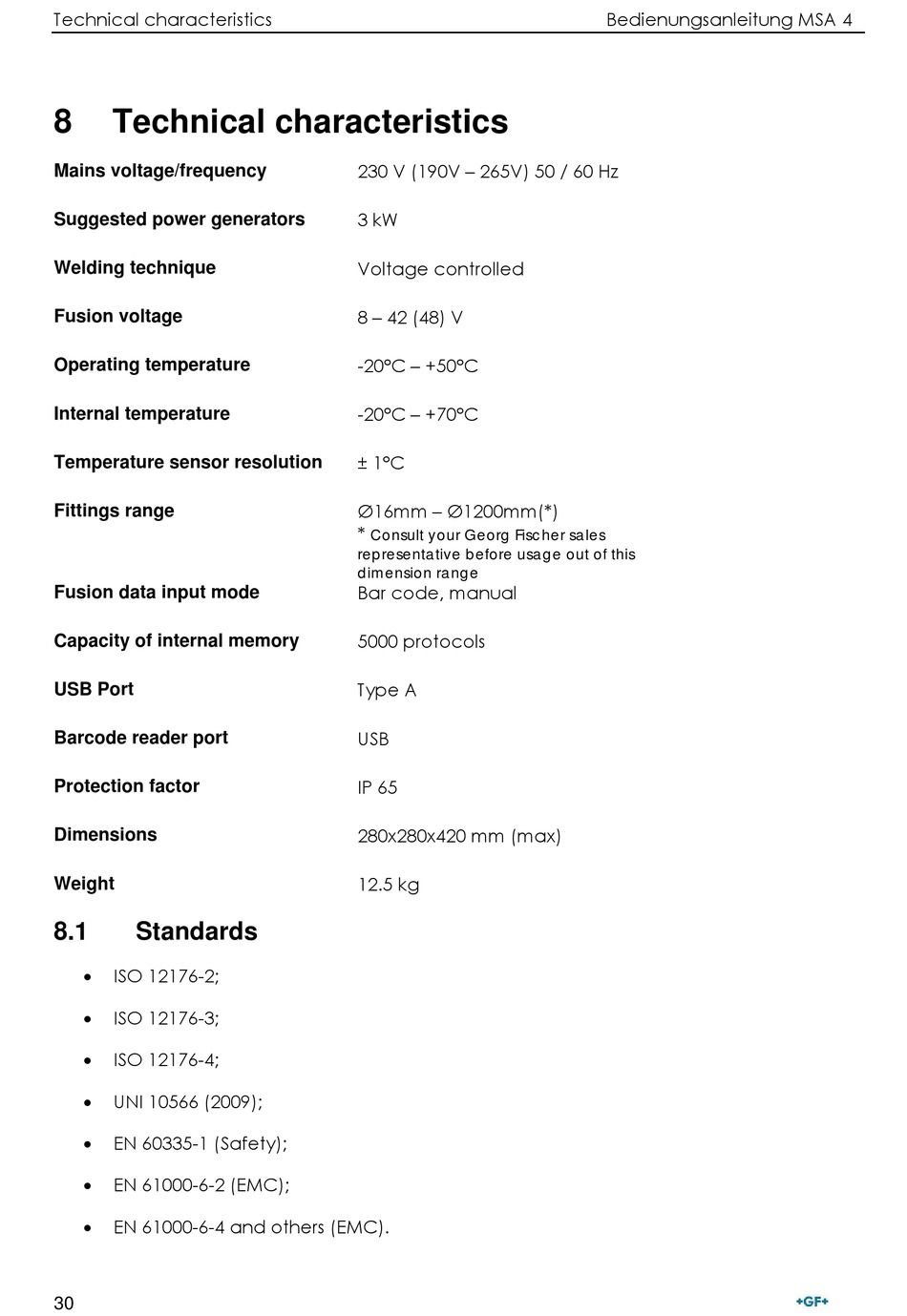

8 Technical characteristics
Mains voltage/frequency
Suggested power generators
Welding technique
Fusion voltage
Operating temperature
Internal temperature
Temperature sensor resolution
Fittings range
Fusion data input mode
Capacity of internal memory
USB Port
Barcode reader port
Protection factor
Dimensions
Weight
8.1

Standards

 ISO 12176-2;
 ISO 12176-3;
 ISO 12176-4;
 UNI 10566 (2009);
 EN 60335-1 (Safety);
 EN 61000-6-2 (EMC);
 EN 61000-6-4 and others (EMC).
30
230 V (190V – 265V) 50 / 60 Hz
3 kW
Voltage controlled
8 – 42 (48) V
-20°C – +50°C
-20°C – +70°C
± 1°C
Ø16mm – Ø1200mm(*)
*
Consult your Georg Fischer sales
representative before usage out of this
dimension range
Bar code, manual
5000 protocols
Type A
USB
IP 65
280x280x420 mm (max)
12.5 kg
Bedienungsanleitung MSA 4
