Fusion process
2.10

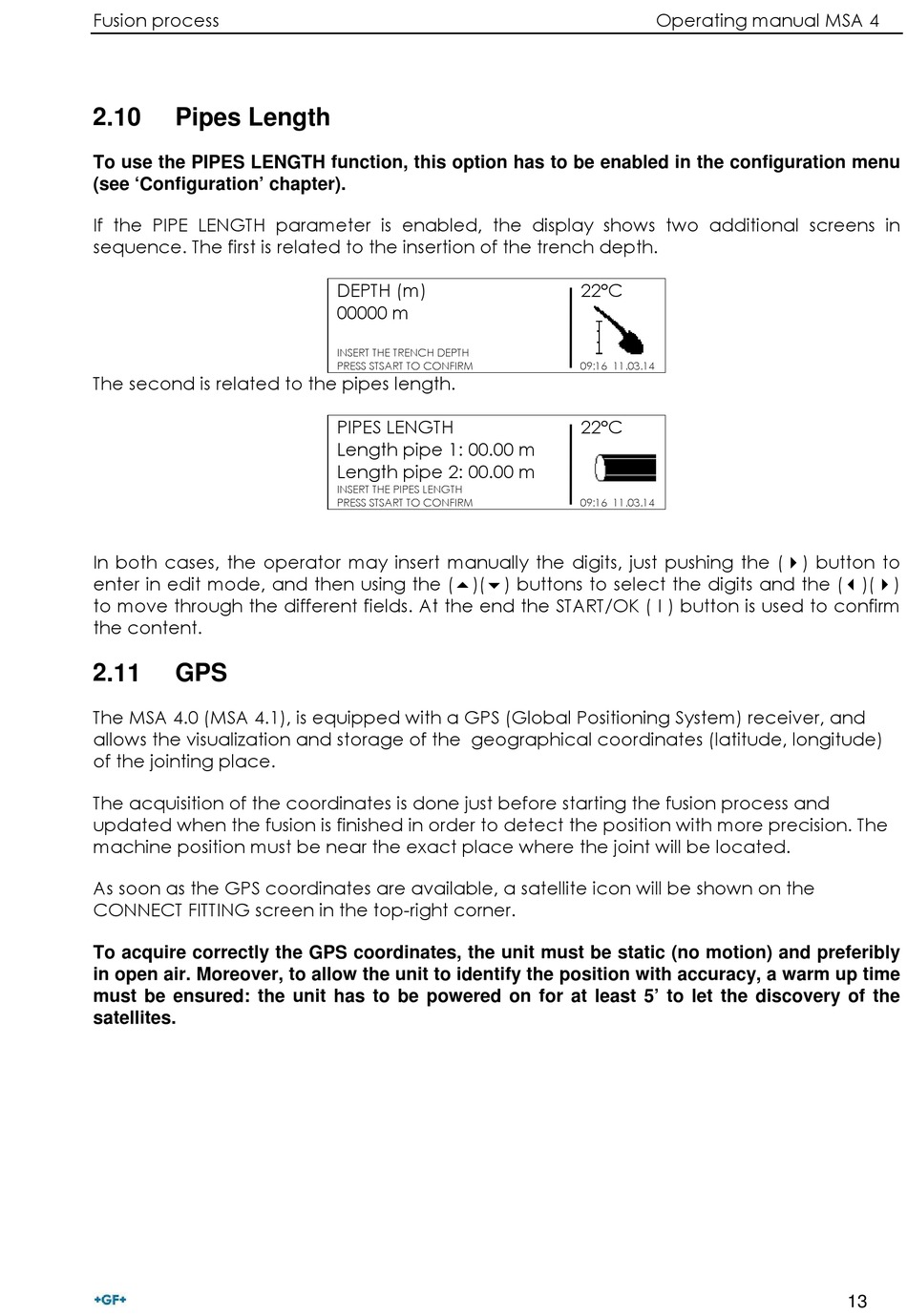

Pipes Length

To use the PIPES LENGTH function, this option has to be enabled in the configuration menu
(see 'Configuration' chapter).
If the PIPE LENGTH parameter is enabled, the display shows two additional screens in
sequence. The first is related to the insertion of the trench depth.
The second is related to the pipes length.
In both cases, the operator may insert manually the digits, just pushing the () button to
enter in edit mode, and then using the ()() buttons to select the digits and the ()()
to move through the different fields. At the end the START/OK ( I ) button is used to confirm
the content.
2.11

GPS

The MSA 4.0 (MSA 4.1), is equipped with a GPS (Global Positioning System) receiver, and
allows the visualization and storage of the geographical coordinates (latitude, longitude)
of the jointing place.
The acquisition of the coordinates is done just before starting the fusion process and
updated when the fusion is finished in order to detect the position with more precision. The
machine position must be near the exact place where the joint will be located.
As soon as the GPS coordinates are available, a satellite icon will be shown on the
CONNECT FITTING screen in the top-right corner.
To acquire correctly the GPS coordinates, the unit must be static (no motion) and preferibly
in open air. Moreover, to allow the unit to identify the position with accuracy, a warm up time
must be ensured: the unit has to be powered on for at least 5' to let the discovery of the
satellites.
DEPTH (m)
00000 m
INSERT THE TRENCH DEPTH
PRESS STSART TO CONFIRM
PIPES LENGTH
Length pipe 1: 00.00 m
Length pipe 2: 00.00 m
INSERT THE PIPES LENGTH
PRESS STSART TO CONFIRM
Operating manual MSA 4
22°C
09:16 11.03.14
22°C
09:16 11.03.14
13
