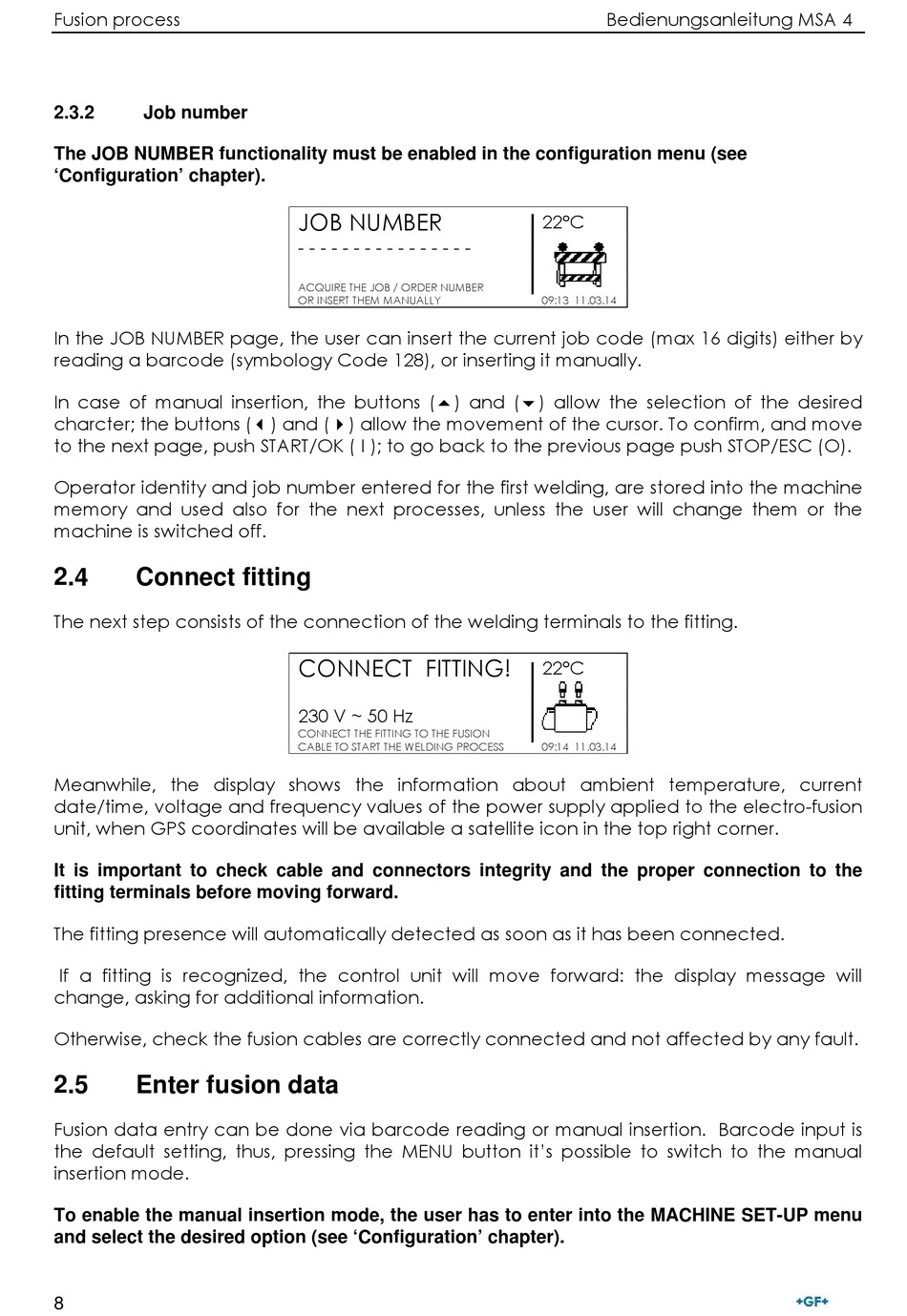

Fusion process
2.3.2

Job number

The JOB NUMBER functionality must be enabled in the configuration menu (see
'Configuration' chapter).
In the JOB NUMBER page, the user can insert the current job code (max 16 digits) either by
reading a barcode (symbology Code 128), or inserting it manually.
In case of manual insertion, the buttons () and () allow the selection of the desired
charcter; the buttons () and () allow the movement of the cursor. To confirm, and move
to the next page, push START/OK ( I ); to go back to the previous page push STOP/ESC (O).
Operator identity and job number entered for the first welding, are stored into the machine
memory and used also for the next processes, unless the user will change them or the
machine is switched off.
2.4

Connect fitting

The next step consists of the connection of the welding terminals to the fitting.
Meanwhile, the display shows the information about ambient temperature, current
date/time, voltage and frequency values of the power supply applied to the electro-fusion
unit, when GPS coordinates will be available a satellite icon in the top right corner.
It is important to check cable and connectors integrity and the proper connection to the
fitting terminals before moving forward.
The fitting presence will automatically detected as soon as it has been connected.
If a fitting is recognized, the control unit will move forward: the display message will
change, asking for additional information.
Otherwise, check the fusion cables are correctly connected and not affected by any fault.
2.5

Enter fusion data

Fusion data entry can be done via barcode reading or manual insertion. Barcode input is
the default setting, thus, pressing the MENU button it's possible to switch to the manual
insertion mode.
To enable the manual insertion mode, the user has to enter into the MACHINE SET-UP menu
and select the desired option (see 'Configuration' chapter).
8
JOB NUMBER
- - - - - - - - - - - - - - - -
ACQUIRE THE JOB / ORDER NUMBER
OR INSERT THEM MANUALLY
CONNECT FITTING!
230 V ~ 50 Hz
CONNECT THE FITTING TO THE FUSION
CABLE TO START THE WELDING PROCESS
Bedienungsanleitung MSA 4
22°C
09:13 11.03.14
22°C
09:14 11.03.14
