Fusion process

2 Fusion process
2.1

Overview of operating procedure

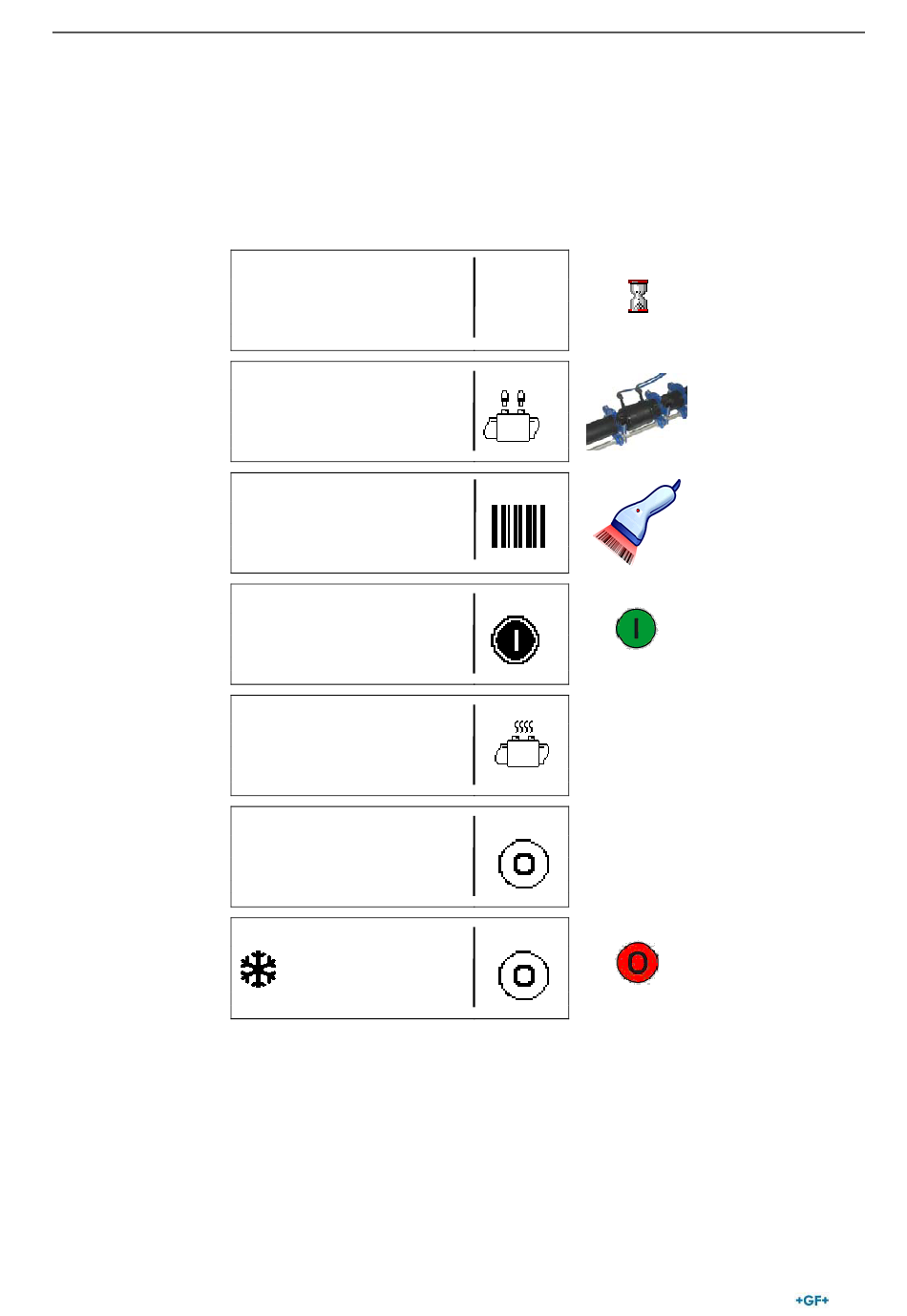

A standard welding workflow is shown in the picture below
Next paragraphs describe all possible actions, in addition to the standard workflow, that
can be executed during the welding process, like the insertion of the operator identity, job
number, traceability information, etc..
6
MSA 4.0 SW: 1.00
S/N: S156A6308020
Next rev: 11/15
GENERAL INFORMATION ABOUT THE UNIT
CONNECT FITTING!
230 V ~ 50 Hz
CONNECT THE FITTING TO THE FUSION
CABLE TO START THE WELDING PROCESS
ENTER FUSION DATA
- - - - - - - - - - - - - - - - - - - -
- - 05,27 Ω
ACQUIRE FUSION DATA WITH A BARCODE
READER. PRESS MENU FOR MANUAL MODE
FUSION DATA
+GF+ C 320 mm
t= 300 s 18/5000
CONTROL THE DATA AND PRESS START TO
BEGIN THE FUSION
FUSION ONGOING
Vo=40 V Vin=230V~50Hz
t= 220 s E=13,7KJ
FUSION N 18/5000 IS ONGOING. PRESS
STOP IN CASE OF EMERGENCY
FUSION DONE
+GF+ C 320 mm
t= 300 s E=152,8KJ
FUSION DONE. DETACH THE CABLE TO
MOVE TO NEXT WELDINF. FUSION 19/5000
COOLING TIME LEFT
= 10'
FUSION DONE,COOLING TIME IN PROGRESS
WAITT TILL THE END OR DETACH THE CABLE
Bedienungsanleitung MSA 4
22°C
09:13 11.03.14
22°C
09:14 11.03.14
22°C
09:15 11.03.14
22°C
09:16 11.03.14
22°C
09:17 11.03.14
22°C
09:21 11.03.14
22°C
09:21 11.03.14
