Introduction
1.2

Components description

1.2.1

Operation Controls

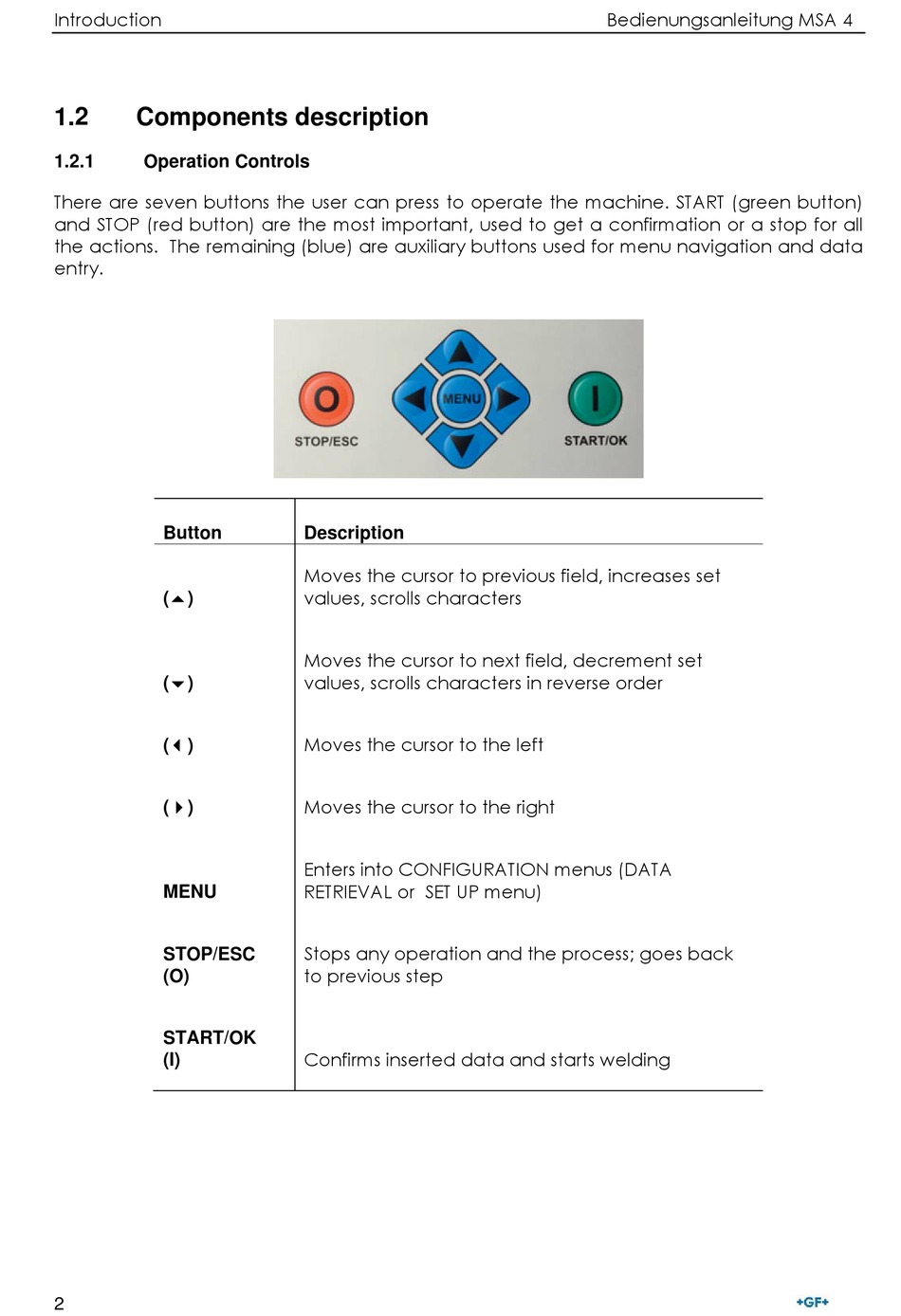

There are seven buttons the user can press to operate the machine. START (green button)
and STOP (red button) are the most important, used to get a confirmation or a stop for all
the actions. The remaining (blue) are auxiliary buttons used for menu navigation and data
entry.
Button
()
()
()
()
MENU
STOP/ESC
(O)
START/OK
(I)
2
Description
Moves the cursor to previous field, increases set
values, scrolls characters
Moves the cursor to next field, decrement set
values, scrolls characters in reverse order
Moves the cursor to the left
Moves the cursor to the right
Enters into CONFIGURATION menus (DATA
RETRIEVAL or SET UP menu)
Stops any operation and the process; goes back
to previous step
Confirms inserted data and starts welding
