2 Fusion process

6
2 Fusion process
2.1

Overview of operating procedure

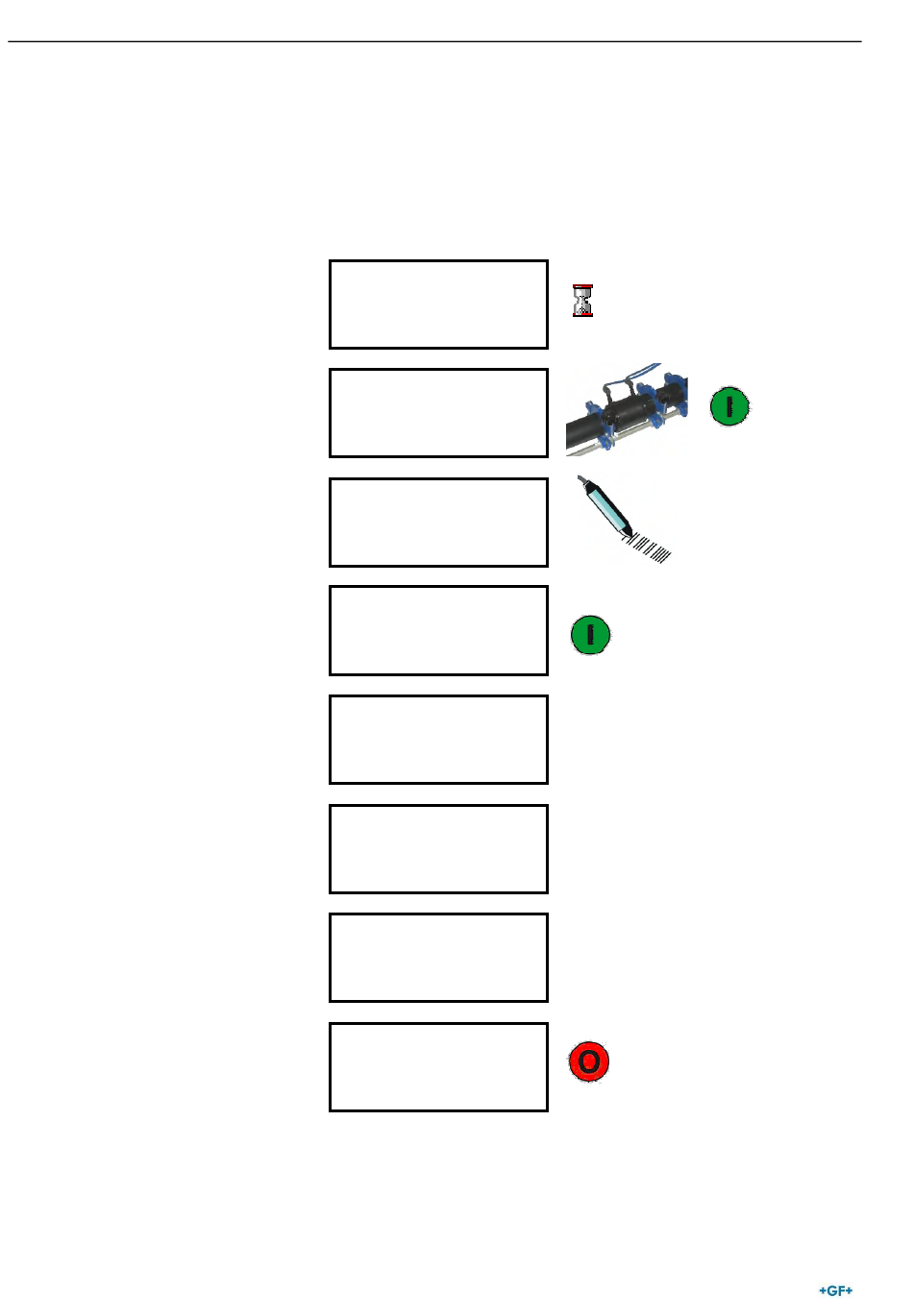

A standard welding workflow is shown in the picture below
MSA 330
S/N: S160B5911011
SW vers.:1.12
Next revision:05/11
CONNECT FITTING!
- - - Ohm
Ta=23°C
01.01.08 15:20
ENTER FUSION DATA
-----------------------------
-------
6.59 Ohm
START FUSION
GF I
time=50s
01.01.08 15:22
FUSION IN PROGRESS
VOLTAGE=40V
time=50s E= 2.00kj
01.01.08 15:22
FUSION DONE N° 15
GF I
time=50s E= 7.41kj
01.01.08 15:23
COOLING INTERVAL
time=10minutes
01.01.08 15:23
COOLING INTERVAL
ENDED
01.01.08 15:33
Next paragraphs describe all possible actions, in addition to the standard
workflow, that can be executed during the welding process, like the
insertion of the operator identity, job number, traceability information,
etc..
Operating Manual MSA 330 / MSA 340
230V
50Hz
OK
N° 15
Tel3492905466
40mm
ESC OK
40mm
ESC
ESC
