UNITS INSTALLATION

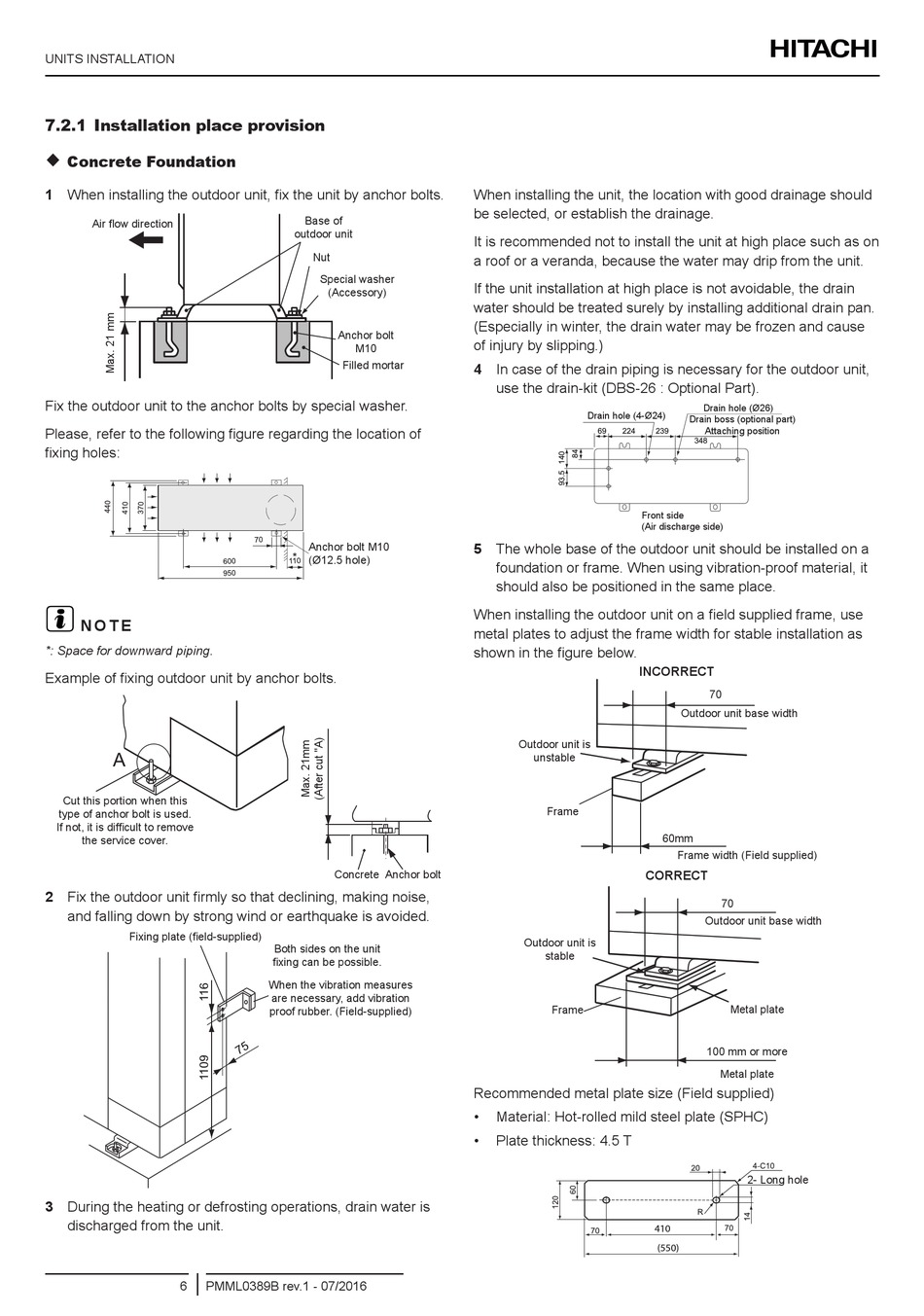

7.2.1 Installation place provision

Concrete Foundation
1 When installing the outdoor unit, fix the unit by anchor bolts.
Air flow direction
Fix the outdoor unit to the anchor bolts by special washer.
Please, refer to the following figure regarding the location of
fixing holes:
?
N O T E
*: Space for downward piping.
Example of fixing outdoor unit by anchor bolts.
A
Cut this portion when this
type of anchor bolt is used.
If not, it is difficult to remove
the service cover.
2 Fix the outdoor unit firmly so that declining, making noise,
and falling down by strong wind or earthquake is avoided.
Fixing plate (field-supplied)
3 During the heating or defrosting operations, drain water is
discharged from the unit.
6 PMML0389B rev.1 - 07/2016
Base of
outdoor unit
Nut
Special washer
(Accessory)
Anchor bolt
M10
Filled mortar
Anchor bolt M10
(Ø12.5 hole)
Concrete Anchor bolt
Both sides on the unit
fixing can be possible.
When the vibration measures
are necessary, add vibration
proof rubber. (Field-supplied)
When installing the unit, the location with good drainage should
be selected, or establish the drainage.
It is recommended not to install the unit at high place such as on
a roof or a veranda, because the water may drip from the unit.
If the unit installation at high place is not avoidable, the drain
water should be treated surely by installing additional drain pan.
(Especially in winter, the drain water may be frozen and cause
of injury by slipping.)
4 In case of the drain piping is necessary for the outdoor unit,
use the drain-kit (DBS-26 : Optional Part).
Drain hole (4-Ø24)
69 224
Front side
(Air discharge side)
5 The whole base of the outdoor unit should be installed on a
foundation or frame. When using vibration-proof material, it
should also be positioned in the same place.
When installing the outdoor unit on a field supplied frame, use
metal plates to adjust the frame width for stable installation as
shown in the figure below.
INCORRECT
Outdoor unit is
unstable
Frame
CORRECT
Outdoor unit is
stable
Frame
Recommended metal plate size (Field supplied)
• Material: Hot-rolled mild steel plate (SPHC)
• Plate thickness: 4.5 T
Drain hole (Ø26)
Drain boss (optional part)
Attaching position
239
348
70
Outdoor unit base width
60mm
Frame width (Field supplied)
70
Outdoor unit base width
Metal plate
100 mm or more
Metal plate
2- Long hole
410
(550)
