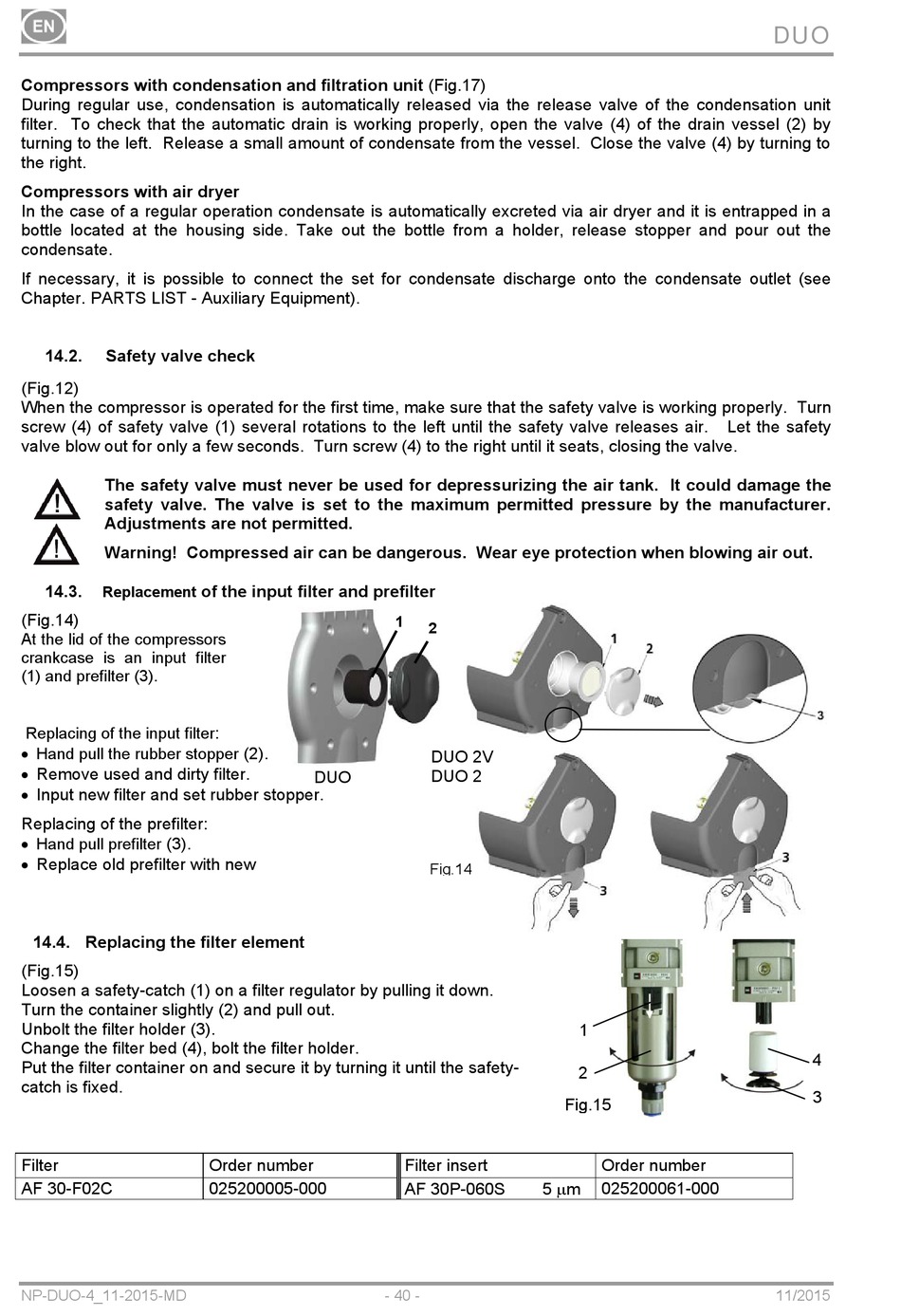

Compressors with condensation and filtration unit (Fig.17)
During regular use, condensation is automatically released via the release valve of the condensation unit
filter. To check that the automatic drain is working properly, open the valve (4) of the drain vessel (2) by
turning to the left. Release a small amount of condensate from the vessel. Close the valve (4) by turning to
the right.
Compressors with air dryer
In the case of a regular operation condensate is automatically excreted via air dryer and it is entrapped in a
bottle located at the housing side. Take out the bottle from a holder, release stopper and pour out the
condensate.
If necessary, it is possible to connect the set for condensate discharge onto the condensate outlet (see
Chapter. PARTS LIST - Auxiliary Equipment).
14.2. Safety valve check
(Fig.12)
When the compressor is operated for the first time, make sure that the safety valve is working properly. Turn
screw (4) of safety valve (1) several rotations to the left until the safety valve releases air.
valve blow out for only a few seconds. Turn screw (4) to the right until it seats, closing the valve.
The safety valve must never be used for depressurizing the air tank. It could damage the
safety valve. The valve is set to the maximum permitted pressure by the manufacturer.
Adjustments are not permitted.
Warning! Compressed air can be dangerous. Wear eye protection when blowing air out.
14.3.
Replacement
(Fig.14)
At the lid of the compressors
crankcase is an input filter
(1) and prefilter (3).
Replacing of the input filter

Hand pull the rubber stopper
 Remove used and dirty filter.
 Input new filter and set rubber stopper.
Replacing of the prefilter:

(3).
Hand pull prefilter
 Replace old prefilter with new

14.4. Replacing the filter element

(Fig.15)
Loosen a safety-catch (1) on a filter regulator by pulling it down.
Turn the container slightly (2) and pull out.
Unbolt the filter holder (3).
Change the filter bed (4), bolt the filter holder.
Put the filter container on and secure it by turning it until the safety-
catch is fixed.
Filter
AF 30-F02C
