DUO
1/N/PE ~ 230 V 50..60 Hz
ELECTRIC OBJECT OF 1st CAT.
B TYPE DK50 Plus, DK50 Plus/M*
DK50 2V, DK50 2V/M*
230VAC 50..60Hz
PE U
U N PE
HL1
Q
24V AC/DC or EXT.
1 2 U N 3 4 5 6 7
PS-DUO/A
DUO, DUO 2V
1/N/PE ~ 230 V 50..60 Hz
ELECTRIC OBJECT OF 1st CAT.
B TYPE DK50 Plus, DK50 Plus/M*
DK50 2V, DK50 2V/M*
230VAC 50..60Hz
PE U
U N PE
HL1
Q
24V AC/DC or EXT.
1 2 U N 3 4 5 6 7
PS-DUO/A

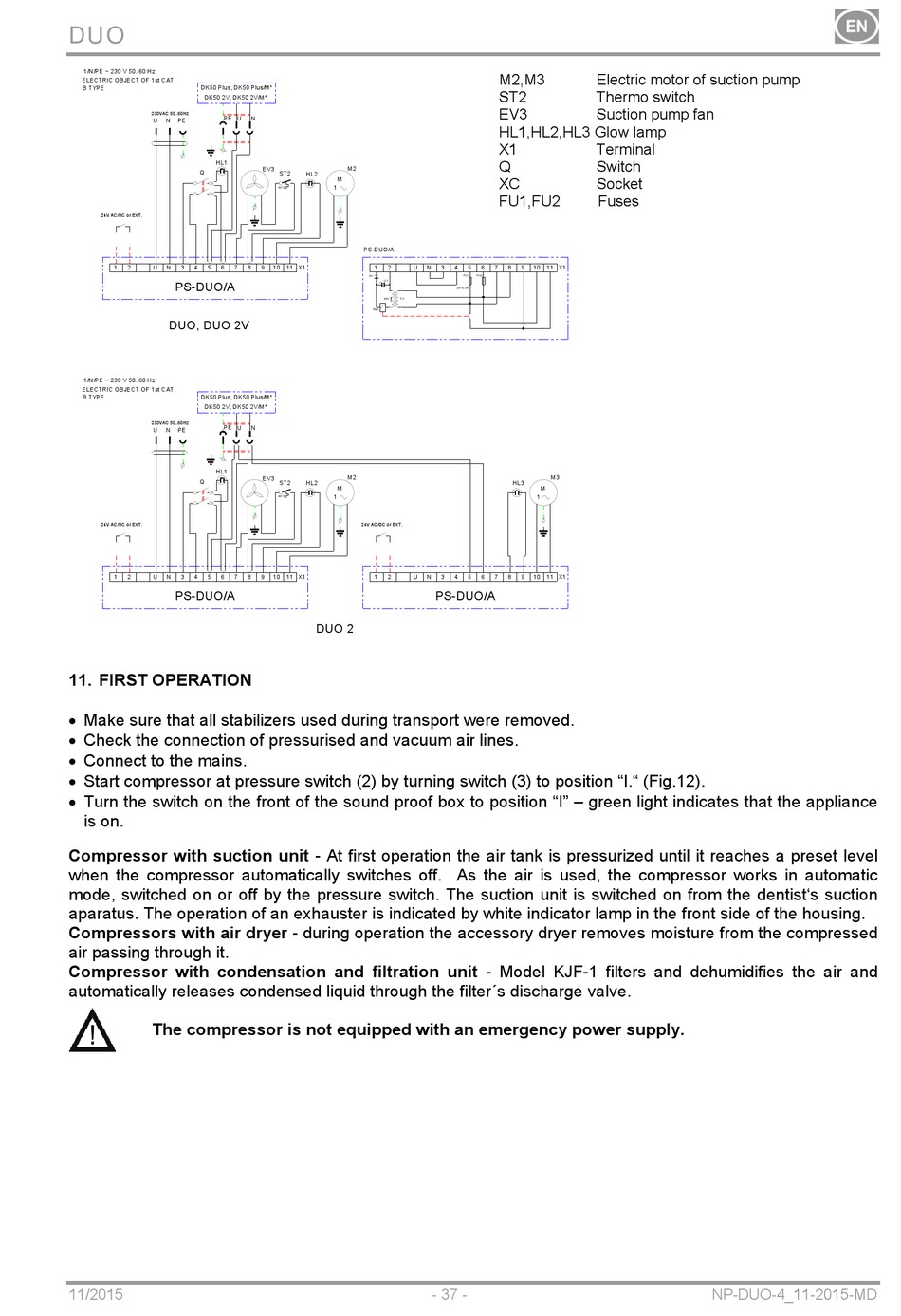

11. FIRST OPERATION

 Make sure that all stabilizers used during transport were removed.
 Check the connection of pressurised and vacuum air lines.
 Connect to the mains.
 Start compressor at pressure switch (2) by turning switch (3) to position "I." (Fig.12).
 Turn the switch on the front of the sound proof box to position "I" – green light indicates that the appliance
is on.
Compressor with suction unit - At first operation the air tank is pressurized until it reaches a preset level
when the compressor automatically switches off. As the air is used, the compressor works in automatic
mode, switched on or off by the pressure switch. The suction unit is switched on from the dentist's suction
aparatus. The operation of an exhauster is indicated by white indicator lamp in the front side of the housing.
Compressors with air dryer - during operation the accessory dryer removes moisture from the compressed
air passing through it.
Compressor with condensation and filtration unit - Model KJF-1 filters and dehumidifies the air and
automatically releases condensed liquid through the filter´s discharge valve.
The compressor is not equipped with an emergency power supply.
11/2015
N
M2
EV3
ST2 HL2
M
1
40°C
PS-DUO/A
8 9 10 11 X1 1 2 U
D1
C1
+
24V Tr1
Re1
N
EV3 M2
ST2 HL2
M
1
40°C
24V AC/DC or EXT.
8 9 10 11 X1 1 2 U
DUO 2
M2,M3 Electric motor of suction pump
ST2 Thermo switch
EV3 Suction pump fan
HL1,HL2,HL3 Glow lamp
X1 Terminal
Q Switch
XC Socket
FU1,FU2
N 3 4 5 6 7 8 9 10 11 X1
FU1 FU2
2xT6.3A
M3
HL3
M
1
N 3 4 5 6 7 8 9 10 11 X1
PS-DUO/A
- 37 -
Fuses
