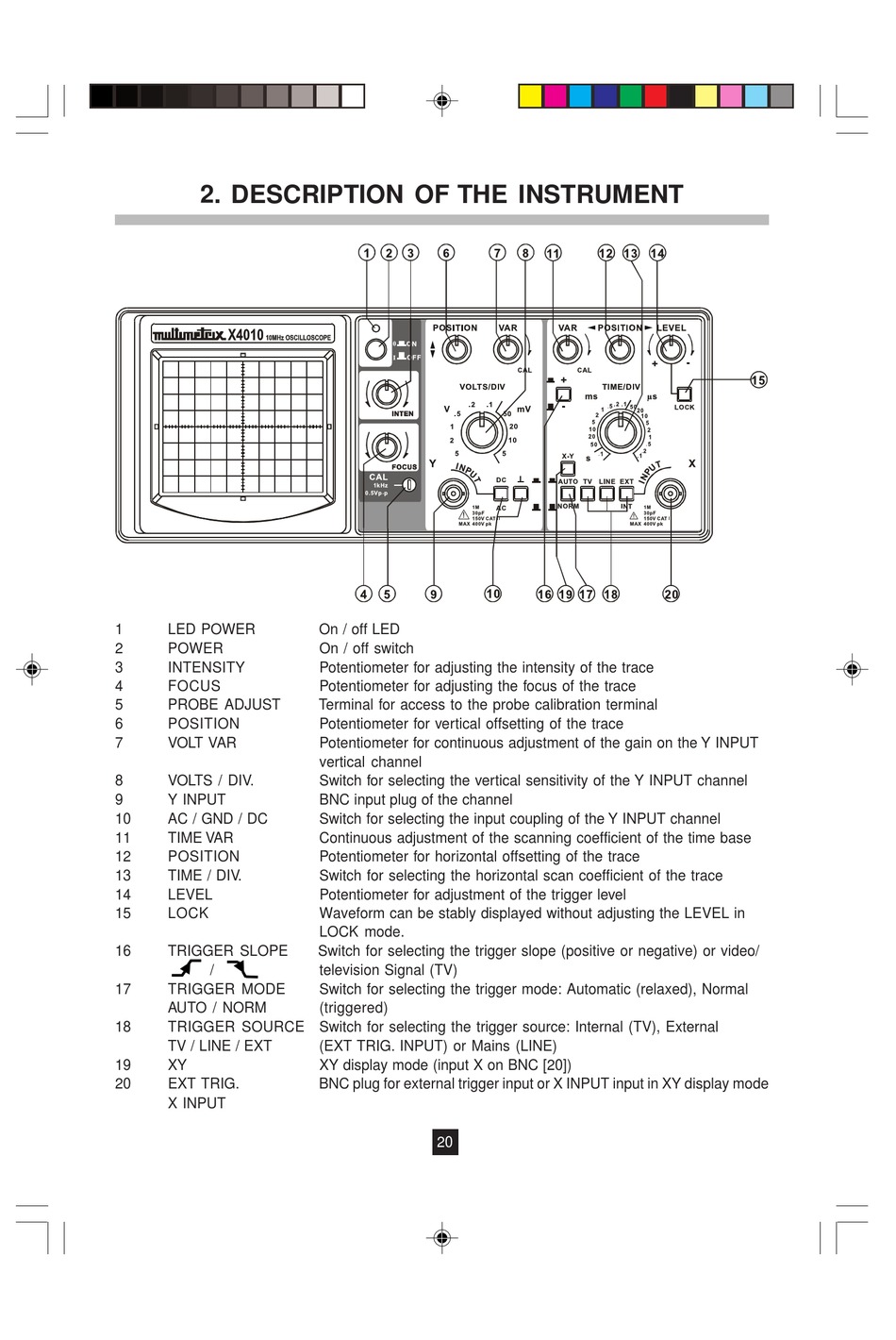

2. DESCRIPTION OF THE INSTRUMENT

1 LED POWER
2 POWER
3 INTENSITY
4 FOCUS
5 PROBE ADJUST
6 POSITION
7 VOLT VAR
8 VOLTS / DIV.
9 Y INPUT
10 AC / GND / DC
11 TIME VAR
12 POSITION
13 TIME / DIV.
14 LEVEL
15 LOCK
16 TRIGGER SLOPE
ÿ
/
17 TRIGGER MODE
AUTO / NORM
18 TRIGGER SOURCE Switch for selecting the trigger source: Internal (TV), External
TV / LINE / EXT
19 XY
20 EXT TRIG.
X INPUT
On / off LED
On / off switch
Potentiometer for adjusting the intensity of the trace
Potentiometer for adjusting the focus of the trace
Terminal for access to the probe calibration terminal
Potentiometer for vertical offsetting of the trace
Potentiometer for continuous adjustment of the gain on the Y INPUT
vertical channel
Switch for selecting the vertical sensitivity of the Y INPUT channel
BNC input plug of the channel
Switch for selecting the input coupling of the Y INPUT channel
Continuous adjustment of the scanning coefficient of the time base
Potentiometer for horizontal offsetting of the trace
Switch for selecting the horizontal scan coefficient of the trace
Potentiometer for adjustment of the trigger level
Waveform can be stably displayed without adjusting the LEVEL in
LOCK mode.
Switch for selecting the trigger slope (positive or negative) or video/
television Signal (TV)
Switch for selecting the trigger mode: Automatic (relaxed), Normal
(triggered)
(EXT TRIG. INPUT) or Mains (LINE)
XY display mode (input X on BNC [20])
BNC plug for external trigger input or X INPUT input in XY display mode
20
