Verdrahtung:

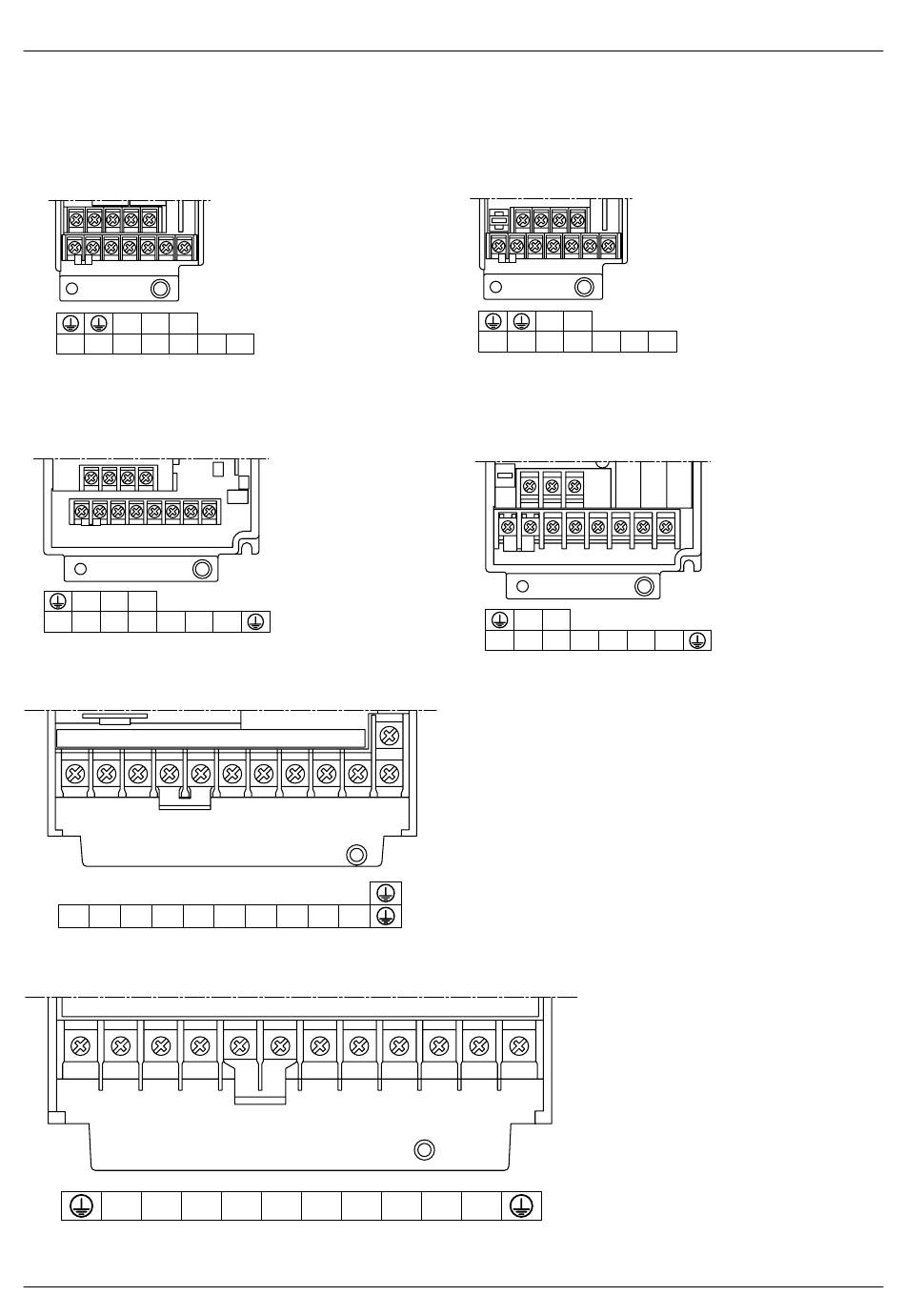

Anordnung der Leistungsklemmen

ER22-0.18/3K, 0.37/3K, 0.55/3K, 0.75/3K
R/L1 S/L2 T/L3
P0 PA/+ PB PC/- U/T1 V/T2 W/T3
ER22- 1.1/3K, 1.5/3K, 2.2/3K, 3.0/3K, 4.0/3K, 0.37/4K/P,
0.55/4K/P, 0.75/4K/P, 1.1/4K/P, 1.5/4K/P, 2.2/4K/P,
3.0/4K/P, 4.0/4K/P, 0.75/6K, 1.5/6K, 2.2/6K, 4.0/6K
R/L1 S/L2 T/L3
P0 PA/+ PB PC/- U/T1 V/T2 W/T3
ER22-5.5/3K, 7.5/3K, 5.5/4K/P, 7.5/4K/P, 5.5/6K, 7.5/6K,
R/L1 S/L2 T/L3 P0 PA/+ PB PC/- U/T1 V/T2 W/T3
ER22-11.0/3K, 15.0/3K, 11.0/4K/P, 15.0/4K/P, 11.0/6K, 15.0/6K,
R/L1 S/L2 T/L3 P0 PA/+ PB PC/- U/T1 V/T2 W/T3
22
ER22-...K/P
ER22-0.18K/P, 0.37K/P, 0.55K/P, 0.75K/P
R/L1 S/L2
P0 PA/+ PB PC/- U/T1 V/T2 W/T3
ER22-1.1K/P, 1.5K/P, 2.2K/P
R/L1 S/L2
P0 PA/+ PB PC/- U/T1 V/T2 W/T3
