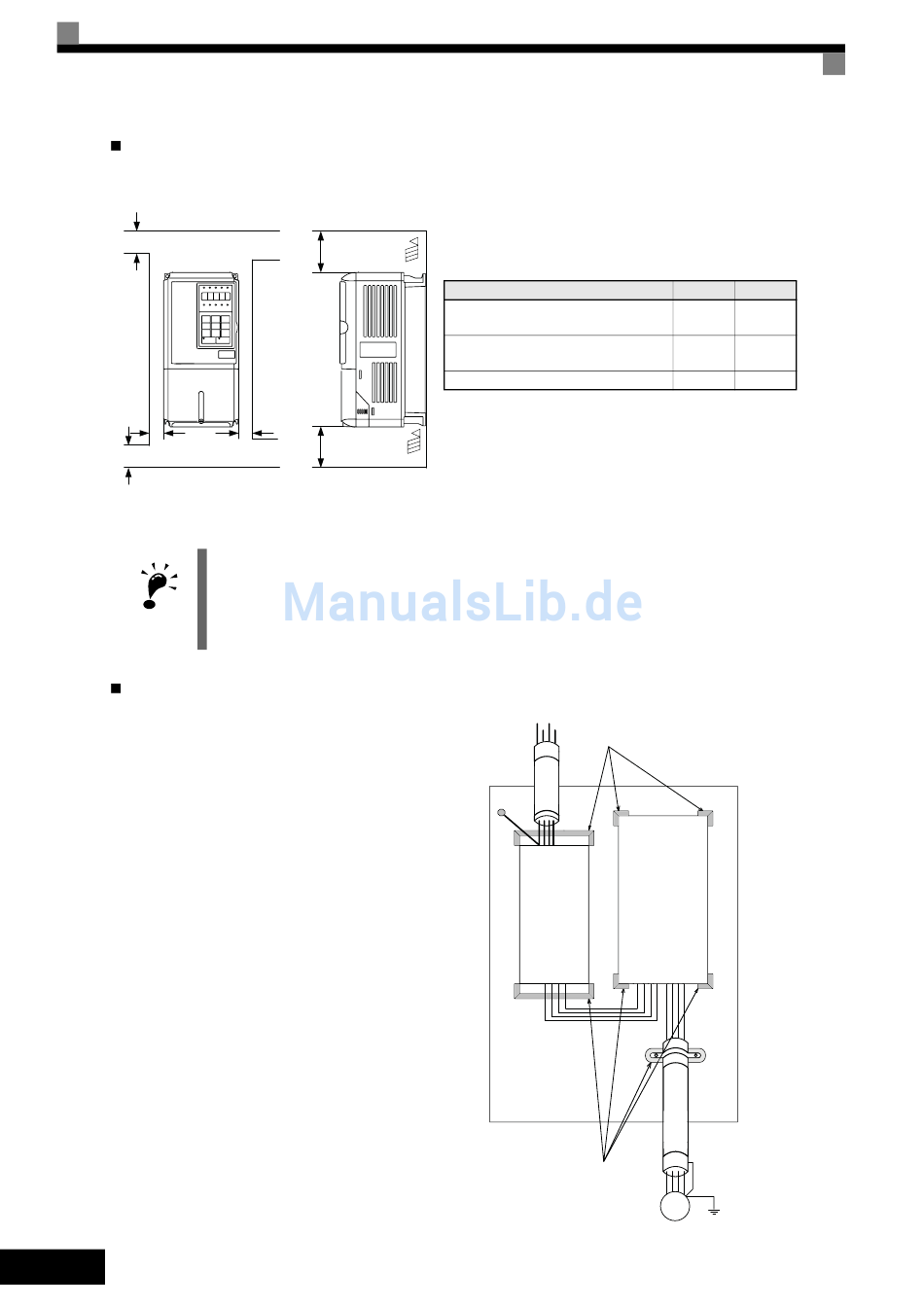

Installation Orientation

Install the Inverter vertically so as not to reduce the cooling effect. When installing the Inverter,
always provide the following installation space to allow normal heat dissipation.
A
30mm min.
50mm
min.
Horizontal Space
IMPORTANT
Installation of Inverters and EMC filters
For an EMC rules compliant installation
consider the following points:
•
Use a line filter.
•
Use shielded motor cables.
•
Mount the inverter and filter on
a grounded cunductive plate.
•
Remove any paint or dirt before mount-
ing the parts in order to reach the low-
est possible grounding impedance.
Fig 3 EMC filter installation
EN-7
B
30mm min. 120mm min.
Vertical Space
Fig 2 Installation space
1. The same space is required horizontally and vertically for IP00, IP20 and NEMA 1 Inverters.
2. Always remove the top protection cover after installing an Inverter with an output of 18.5 kW or less in a
panel.
Always provide enough space for suspension eye bolts and the main circuit lines when installing an
Inverter with an output of 22 kW or more in a panel.
Air
200V class inverter, 0.55 to 90 kW
400V class inverter, 0.55 to 132 kW
200V class inverter, 110 kW
400V class inverter, 160 to 220 kW
400V class inverter, 300 kW
Air
PE L2
L1 L3
PE
Line
Filter
Load
Cable Lenght
as short as possible
Grounded
Metal Plate
Ground Bonds
Remove any paint!
A
50 mm 120 mm
120 mm 120 mm
300 mm 300 mm
Ground Bonds
Remove any paint!
Inverter
L2 V
GND L1 L3 U W GND
Screened
Motor cable
M
~3
B
