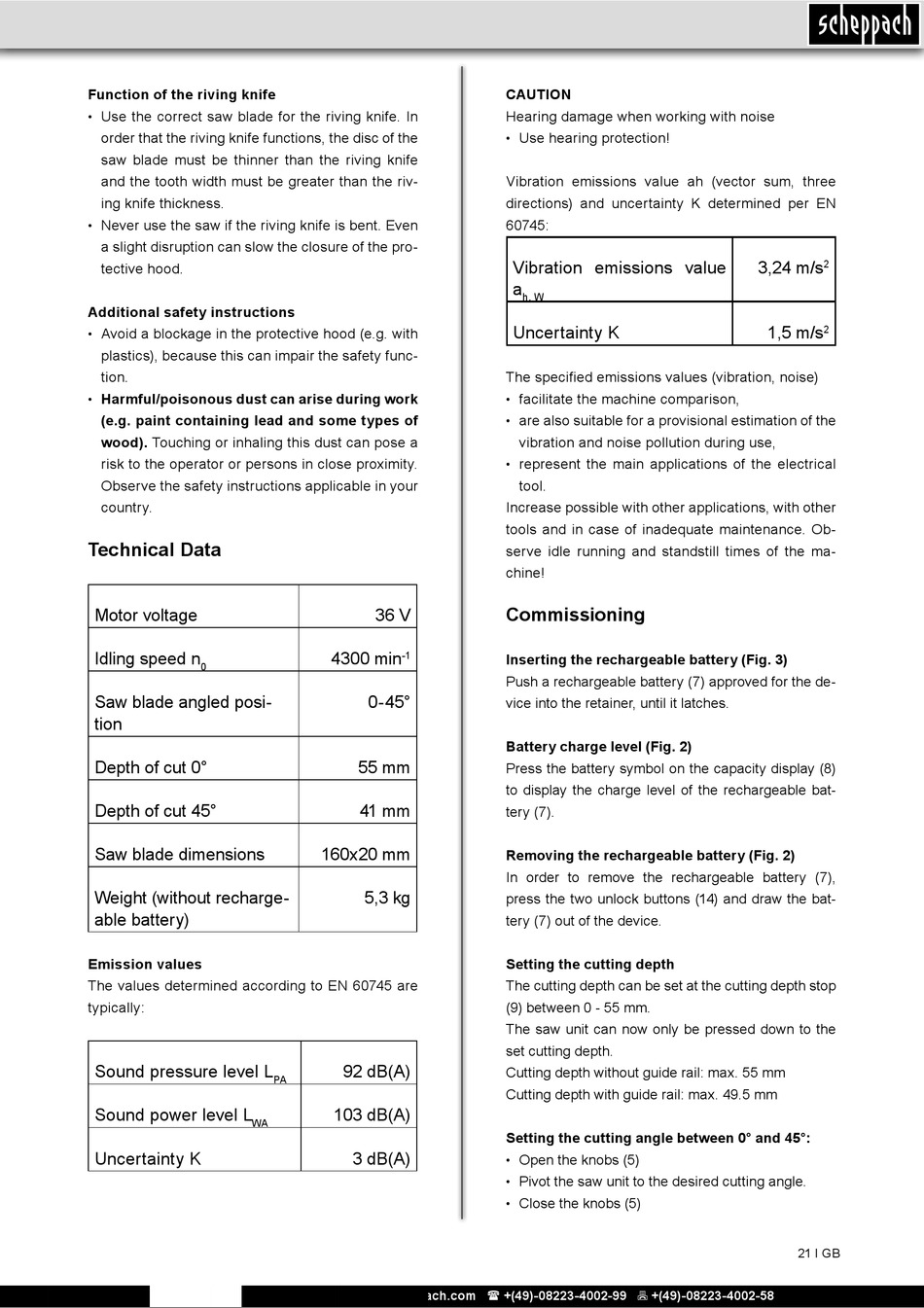

Technical Data - Scheppach PL55Li Originalbetriebsanleitung

Function of the riving knife
• Use the correct saw blade for the riving knife. In
order that the riving knife functions, the disc of the
saw blade must be thinner than the riving knife
and the tooth width must be greater than the riv-
ing knife thickness.
Never use the saw if the riving knife is bent. Even
•
a slight disruption can slow the closure of the pro-
tective hood.
Additional safety instructions
Avoid a blockage in the protective hood (e.g. with
•
plastics), because this can impair the safety func-
tion.
Harmful/poisonous dust can arise during work
•
(e.g. paint containing lead and some types of
wood). Touching or inhaling this dust can pose a
risk to the operator or persons in close proximity.
Observe the safety instructions applicable in your
country.

Technical Data

Motor voltage
Idling speed n
0
Saw blade angled posi-
tion
Depth of cut 0°
Depth of cut 45°
Saw blade dimensions
Weight (without recharge-
able battery)
Emission values
The values determined according to EN 60745 are
typically:
Sound pressure level L
Sound power level L
WA
Uncertainty K
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58  www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
36 V
4300 min
-1
0­45°
55 mm
41 mm
160x20 mm
5,3 kg
92 dB(A)
PA
103 dB(A)
3 dB(A)
CAUTION
Hearing damage when working with noise
Use hearing protection!
•
Vibration emissions value ah (vector sum, three
directions) and uncertainty K determined per EN
60745:
Vibration emissions value
a
h, W
Uncertainty K
The specified emissions values (vibration, noise)
facilitate the machine comparison,
•
are also suitable for a provisional estimation of the
•
vibration and noise pollution during use,
represent the main applications of the electrical
•
tool.
Increase possible with other applications, with other
tools and in case of inadequate maintenance. Ob-
serve idle running and standstill times of the ma-
chine!
Commissioning
Inserting the rechargeable battery (Fig. 3)
Push a rechargeable battery (7) approved for the de-
vice into the retainer, until it latches.
Battery charge level (Fig. 2)
Press the battery symbol on the capacity display (8)
to display the charge level of the rechargeable bat-
tery (7).
Removing the rechargeable battery (Fig. 2)
In order to remove the rechargeable battery (7),
press the two unlock buttons (14) and draw the bat-
tery (7) out of the device.
Setting the cutting depth
The cutting depth can be set at the cutting depth stop
(9) between 0 ­ 55 mm.
The saw unit can now only be pressed down to the
set cutting depth.
Cutting depth without guide rail: max. 55 mm
Cutting depth with guide rail: max. 49.5 mm
Setting the cutting angle between 0° and 45°:
Open the knobs (5)
•
Pivot the saw unit to the desired cutting angle.
•
• Close the knobs (5)
3,24 m/s
2
1,5 m/s
2
