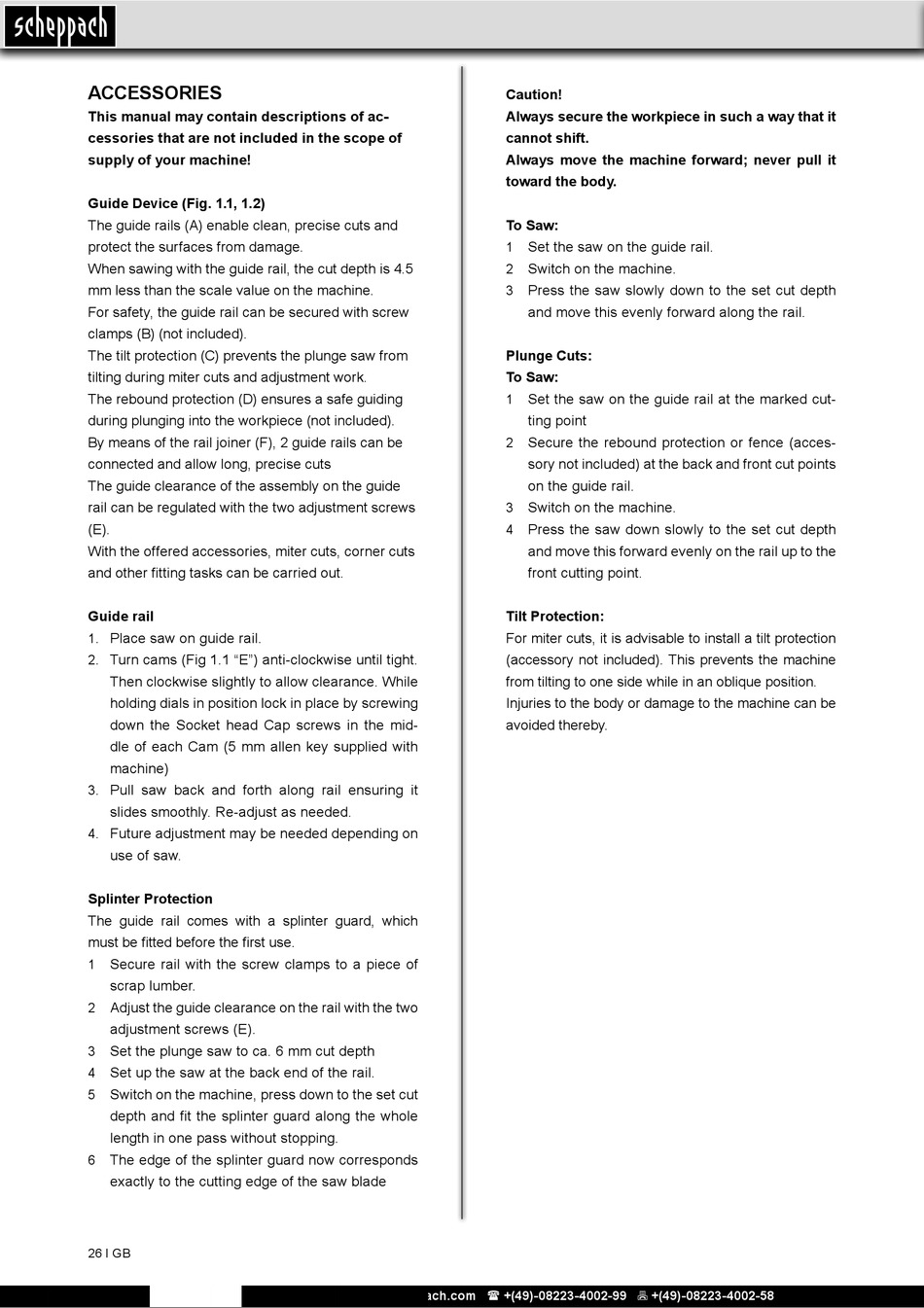

ACCESSORIES
This manual may contain descriptions of ac-
cessories that are not included in the scope of
supply of your machine!
Guide Device (Fig. 1.1, 1.2)
The guide rails (A) enable clean, precise cuts and
protect the surfaces from damage.
When sawing with the guide rail, the cut depth is 4.5
mm less than the scale value on the machine.
For safety, the guide rail can be secured with screw
clamps (B) (not included).
The tilt protection (C) prevents the plunge saw from
tilting during miter cuts and adjustment work.
The rebound protection (D) ensures a safe guiding
during plunging into the workpiece (not included).
By means of the rail joiner (F), 2 guide rails can be
connected and allow long, precise cuts
The guide clearance of the assembly on the guide
rail can be regulated with the two adjustment screws
(E).
With the offered accessories, miter cuts, corner cuts
and other fitting tasks can be carried out.
Guide rail
Place saw on guide rail.
1.
Turn cams (Fig 1.1 "E") anti­clockwise until tight.
2.
Then clockwise slightly to allow clearance. While
holding dials in position lock in place by screwing
down the Socket head Cap screws in the mid-
dle of each Cam (5 mm allen key supplied with
machine)
Pull saw back and forth along rail ensuring it
3.
slides smoothly. Re­adjust as needed.
Future adjustment may be needed depending on
4.
use of saw.
Splinter Protection
The guide rail comes with a splinter guard, which
must be fitted before the first use.
Secure rail with the screw clamps to a piece of
1
scrap lumber.
2 Adjust the guide clearance on the rail with the two
adjustment screws (E).
Set the plunge saw to ca. 6 mm cut depth
3
4 Set up the saw at the back end of the rail.
Switch on the machine, press down to the set cut
5
depth and fit the splinter guard along the whole
length in one pass without stopping.
The edge of the splinter guard now corresponds
6
exactly to the cutting edge of the saw blade
26 І GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Caution!
Always secure the workpiece in such a way that it
cannot shift.
Always move the machine forward; never pull it
toward the body.
To Saw:
1 Set the saw on the guide rail.
Switch on the machine.
2
Press the saw slowly down to the set cut depth
3
and move this evenly forward along the rail.
Plunge Cuts:
To Saw:
Set the saw on the guide rail at the marked cut-
1
ting point
2 Secure the rebound protection or fence (acces-
sory not included) at the back and front cut points
on the guide rail.
Switch on the machine.
3
Press the saw down slowly to the set cut depth
4
and move this forward evenly on the rail up to the
front cutting point.
Tilt Protection:
For miter cuts, it is advisable to install a tilt protection
(accessory not included). This prevents the machine
from tilting to one side while in an oblique position.
Injuries to the body or damage to the machine can be
avoided thereby.
