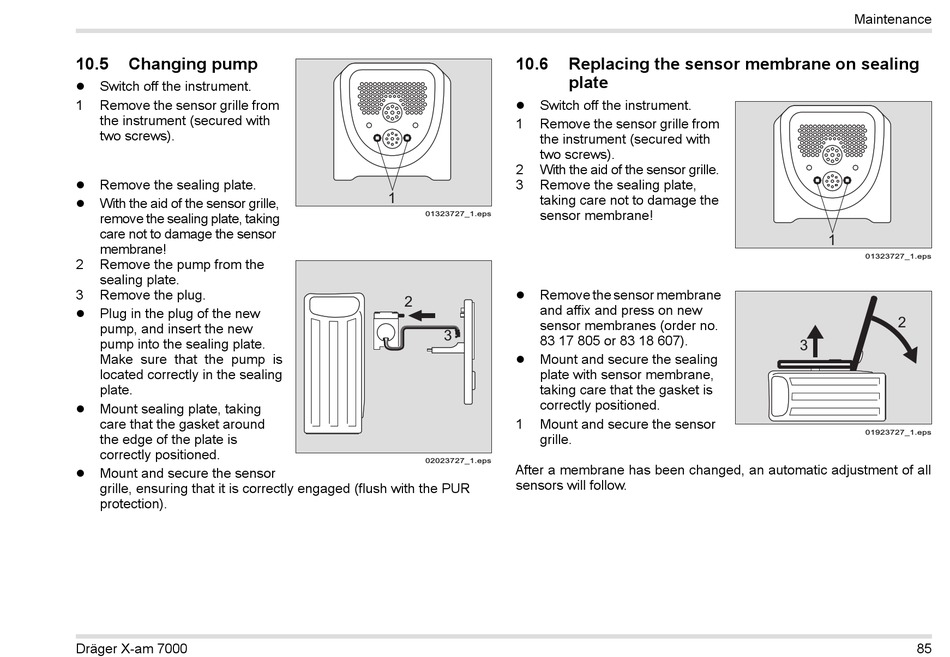

Changing Pump; Replacing The Sensor Membrane On Sealing Plate - Dräger X-am 7000 Technisches Handbuch

10.5

Changing pump

Switch off the instrument.

1 Remove the sensor grille from
the instrument (secured with
two screws).
Remove the sealing plate.

With the aid of the sensor grille,

remove the sealing plate, taking
care not to damage the sensor
membrane!
2 Remove the pump from the
sealing plate.
3 Remove the plug.
Plug in the plug of the new

pump, and insert the new
pump into the sealing plate.
Make sure that the pump is
located correctly in the sealing
plate.
Mount sealing plate, taking

care that the gasket around
the edge of the plate is
correctly positioned.
Mount and secure the sensor

grille, ensuring that it is correctly engaged (flush with the PUR
protection).
Dräger X-am 7000
10.6
Switch off the instrument.

1 Remove the sensor grille from
the instrument (secured with
two screws).
2 With the aid of the sensor grille.
3 Remove the sealing plate,
1 taking care not to damage the
sensor membrane!
01323727_1.eps
Remove the sensor membrane

2
and affix and press on new
sensor membranes (order no.
3
83 17 805 or 83 18 607).
Mount and secure the sealing

plate with sensor membrane,
taking care that the gasket is
correctly positioned.
1 Mount and secure the sensor
grille.
02023727_1.eps
After a membrane has been changed, an automatic adjustment of all
sensors will follow.
Replacing the sensor membrane on sealing
plate
Maintenance
1
01323727_1.eps
2
3
01923727_1.eps
85
