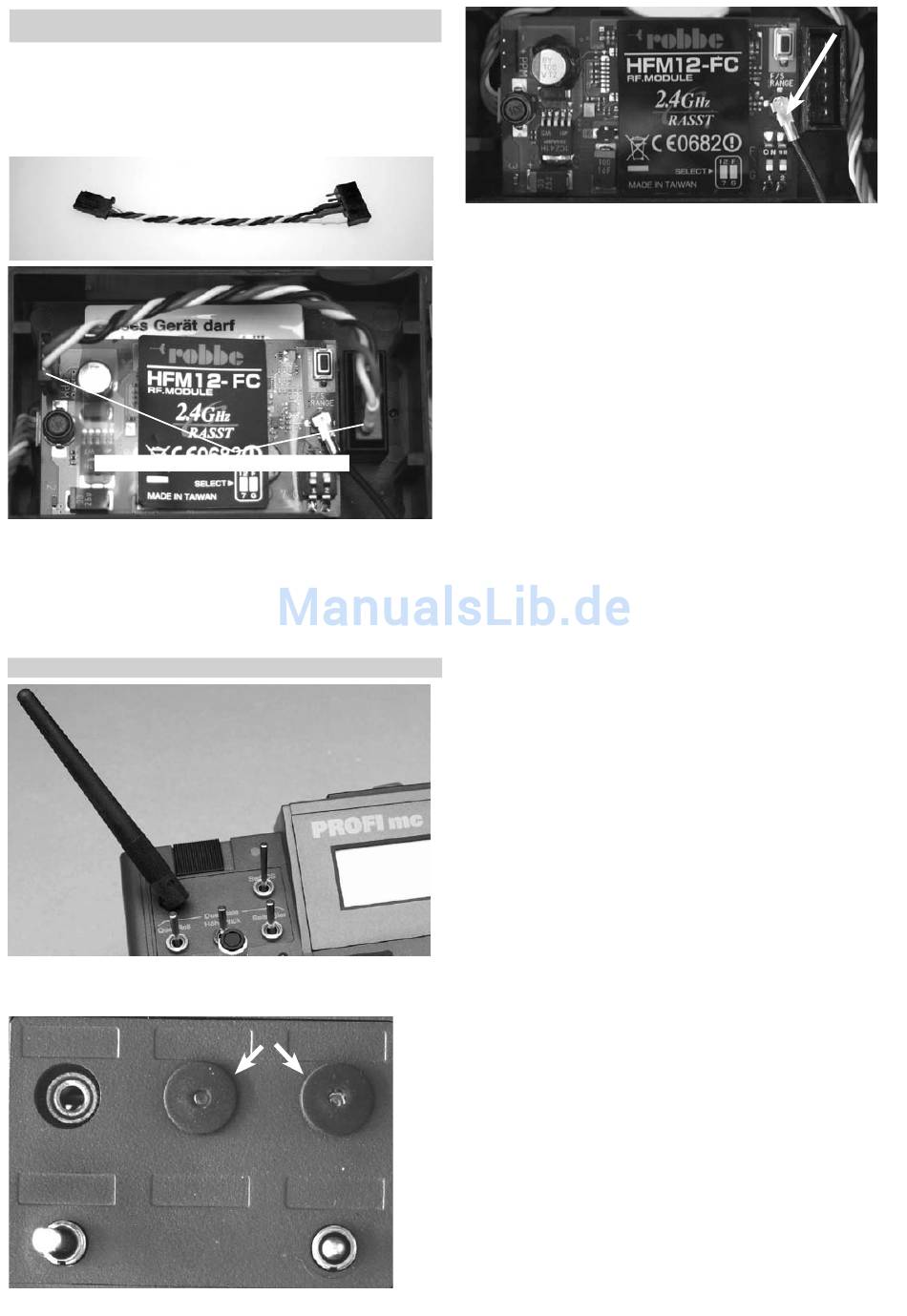

Fitting the RF module
The Tx aerial may be fitted to the standard aerial ball joint or to the option
console. Fitting the module is easily fitted with a little manual dexterity.
Just in case you do not feel confident to fit the module by yourself, then
return the transmitter to robbe Service department to perform the conver-
sion.
Connect the white plug wire to the lower pin
Note:
The connection cable RASST-MPX for the Multiplex sys-
tems MC 3030 and MC 4000 must be installed as shown
in the photo (white cable faces underside of transmitter)
as polarity reversal of the connector can damage the
transmitter or the module!
Fitting the aerial to the option console
Fit the aerial into a free space in the option console. Fit the LED's to their
holders using a small screwdriver.
LED Halterungen
LED holders
Affix the module to the existing module plate using the supplied self-adhe-
sive pads. Plug in the aerial cable to its socket. Ensure that the cable is not
damaged when fitting.
Finally connect connector cable as previously described.
Aerial plug
