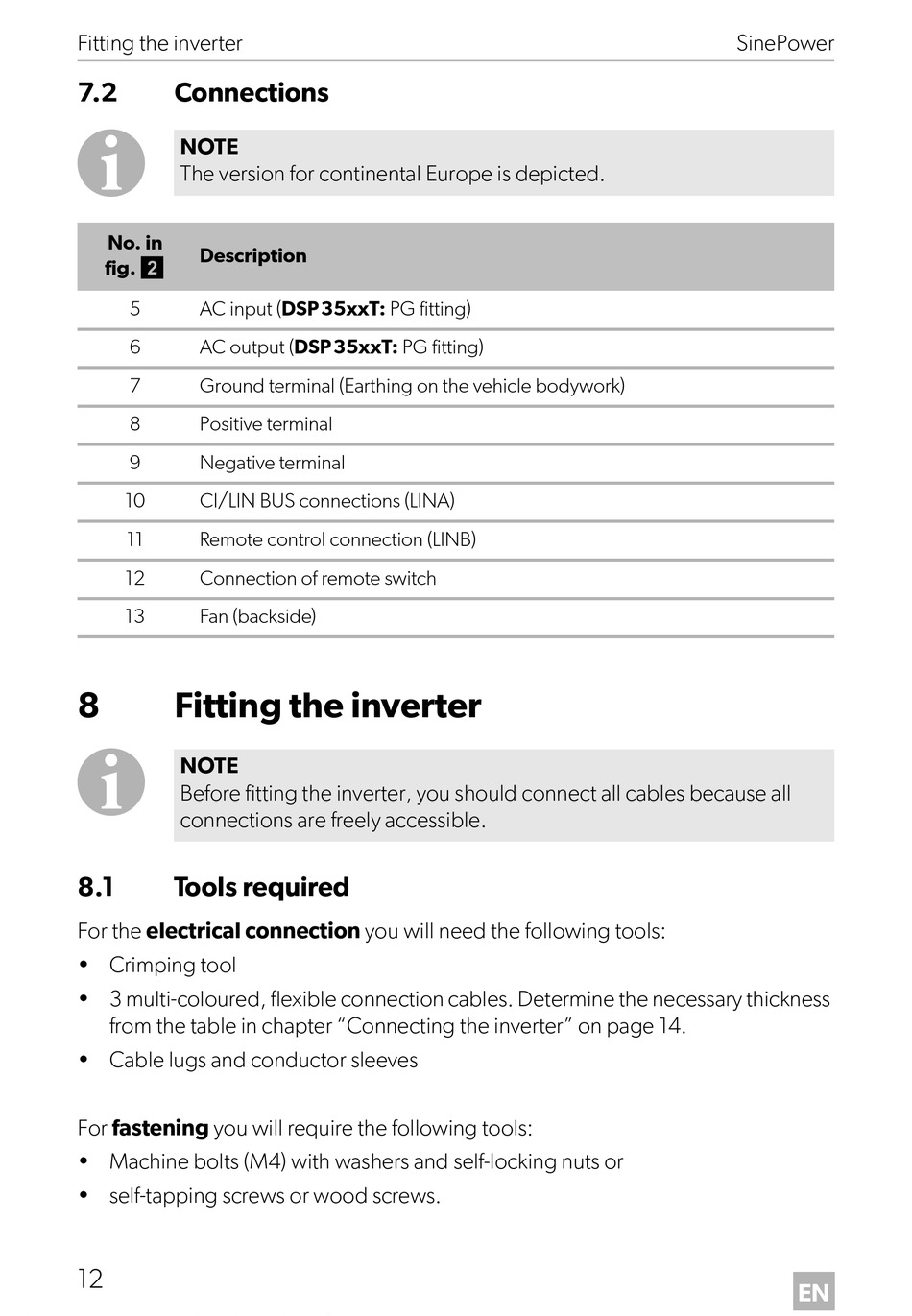

Fitting the inverter

7.2
Connections
I
NOTE
The version for continental Europe is depicted.
No. in
Description
fig. 2
5
AC input (DSP35xxT: PG fitting)
6
AC output (DSP35xxT: PG fitting)
7
Ground terminal (Earthing on the vehicle bodywork)
8
Positive terminal
9
Negative terminal
10
CI/LIN BUS connections (LINA)
11
Remote control connection (LINB)
12
Connection of remote switch
13
Fan (backside)
8
Fitting the inverter
I
NOTE
Before fitting the inverter, you should connect all cables because all
connections are freely accessible.
8.1

Tools required

For the electrical connection you will need the following tools:
• Crimping tool
• 3 multi-coloured, flexible connection cables. Determine the necessary thickness
from the table in chapter "Connecting the inverter" on page 14.
• Cable lugs and conductor sleeves
For fastening you will require the following tools:
• Machine bolts (M4) with washers and self-locking nuts or
• self-tapping screws or wood screws.
12
SinePower
EN
