8.3. Connection to a PV station
For devices that will be connected to a PV system, the station must be connected to the water heater.
The signal from the PV station dedicated to the water heater must be configured (inverter, EMS system, etc.)
for different trigger thresholds:
- Heat pump only: 450 W
- Heat pump and electric heating element: 1650 W
The PV station must be wired to terminal I1 on the PCB.

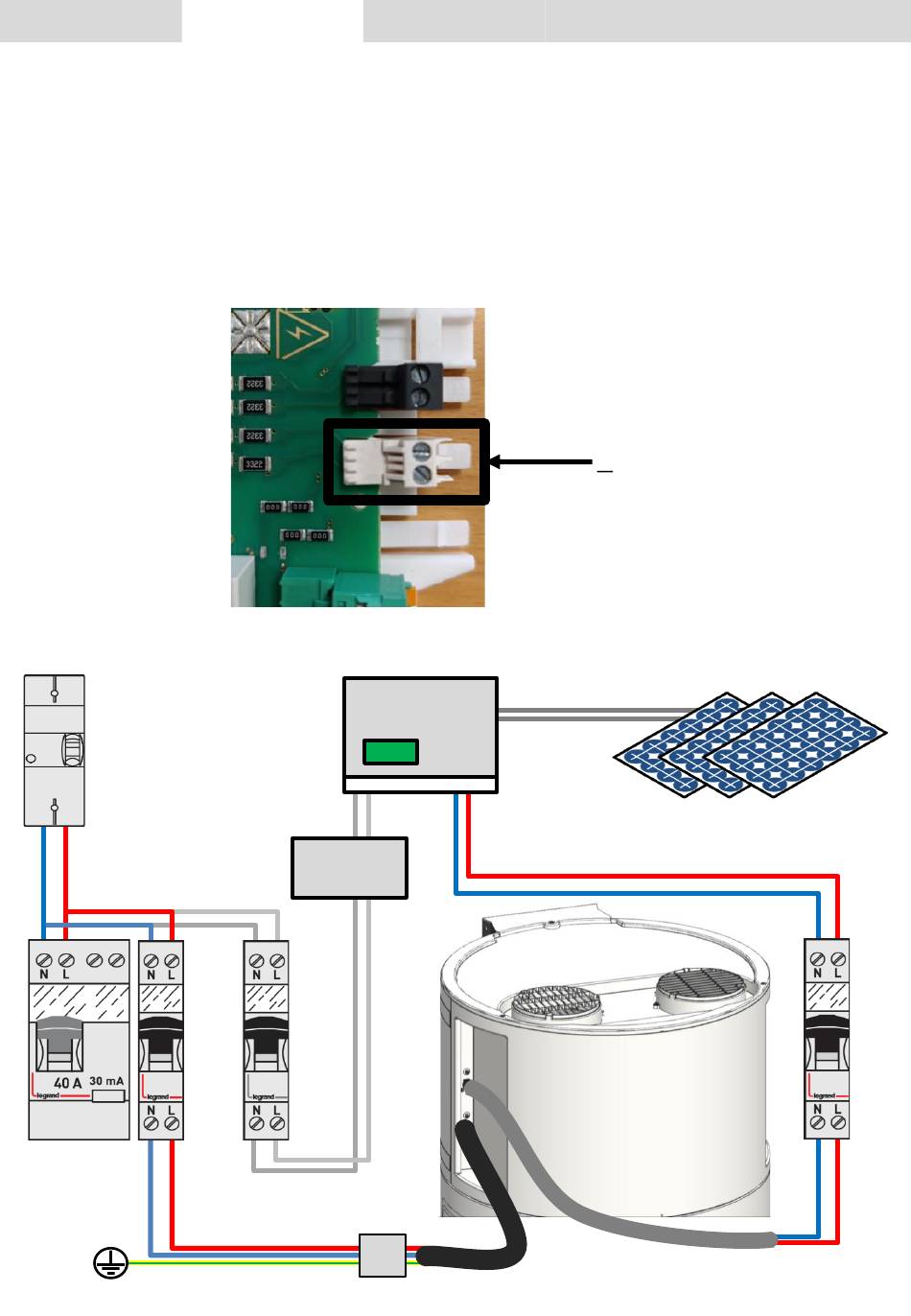

Example of connection to a PV system:
13A
Installation
Inverter
POWER
AC connection
box
3G 1.5 mm²
Use Maintenance
I1
PV panels
230 V~ - 50 Hz signal
3G 1.5 mm²
Warranty
2A
2 x 1.5 0.75 mm²
