Presentation

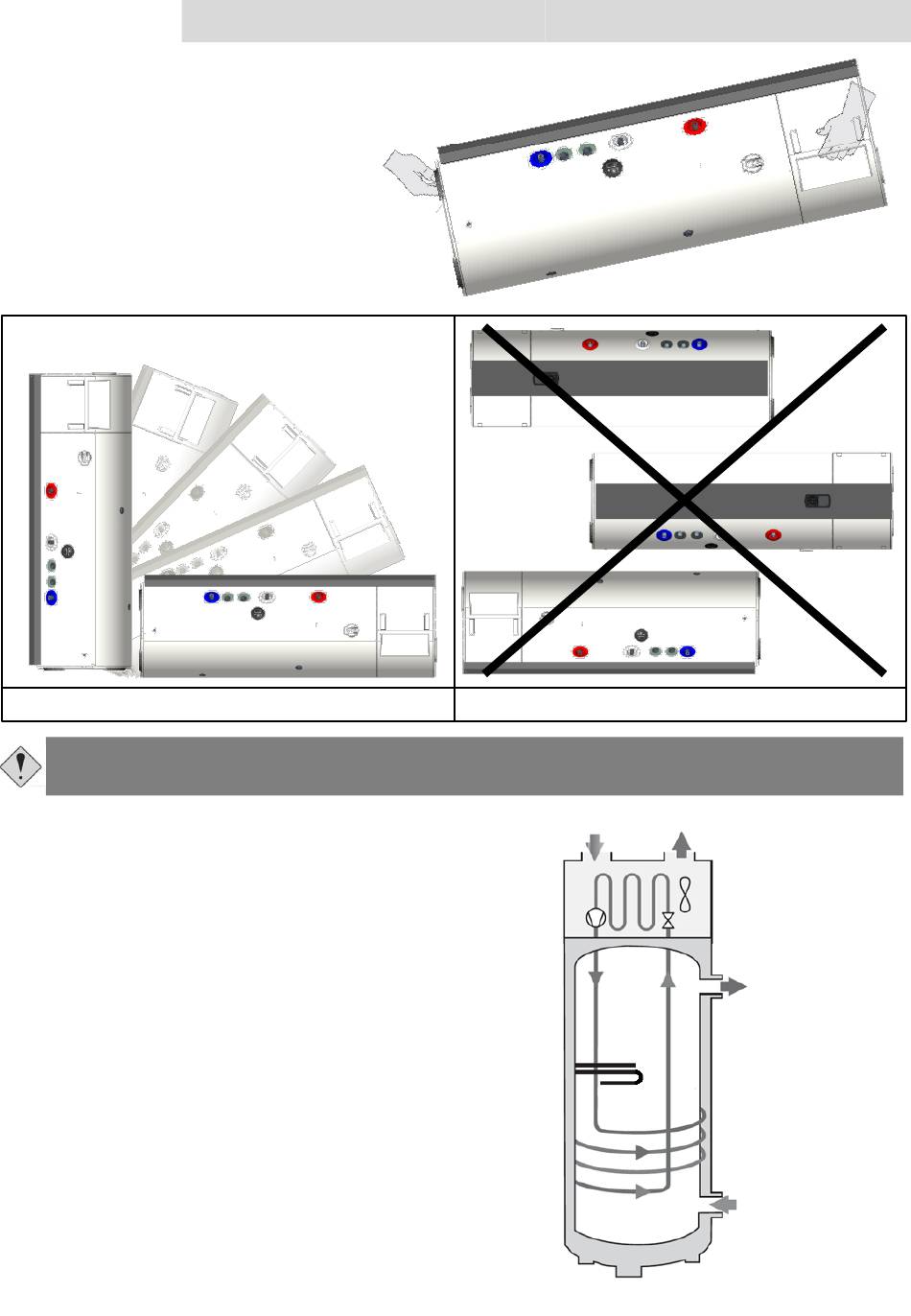

3. Handling

The product has several handles in order
to facilitate handling to the installation site.
To transport the water heater to the
installation site, use the top and bottom
handles.
☺ Accepted transport position
Respect the transport and handling recommendations which appear on the packaging of the water
heater.

4. Operating principle

The thermodynamic water heater uses outside air to prepare
domestic hot water.
The refrigerant fluid contained in the heat pump will
go through a thermodynamic cycle which will allow the
transfer of energy from the outside air to the boiler.
The fan will allow the air to flow into the evaporator.
The refrigerant evaporates upon entering the evaporator.
The compressor compresses the fluid vapour, raising its
temperature. This heat will be transmitted through the
condenser wrapped around the tank, heating the water
in the tank.
The fluid then will go through the thermostatic expansion
valve, where it will cool down and regain its liquid form.
It will then be ready to receive heat again in the evaporator.
Installation Use Maintenance
 Prohibited positions
Air intake Discharge air
Warranty
Hot water outlet
Cold water inlet
