7.6. Advice and recommendations
A temperature limiter must be installed at the outlet of the
water heater to limit the risk of scalding:
• For bathrooms, the fixed maximum hot water temperature
is 50 °C at the points of use .
• In all other rooms, the domestic hot water temperature
is limited to 60 °C at the points of use .
• Decree no. 2001-1220 of 20 December 2001 and circular
DGS/SD 7A (only applicable in France).
• Compliant with DTU 60.1.

8. Connecting optional equipment

Before carrying out any work, be sure to switch off the appliance.
To connect optional equipment, follow the steps below:

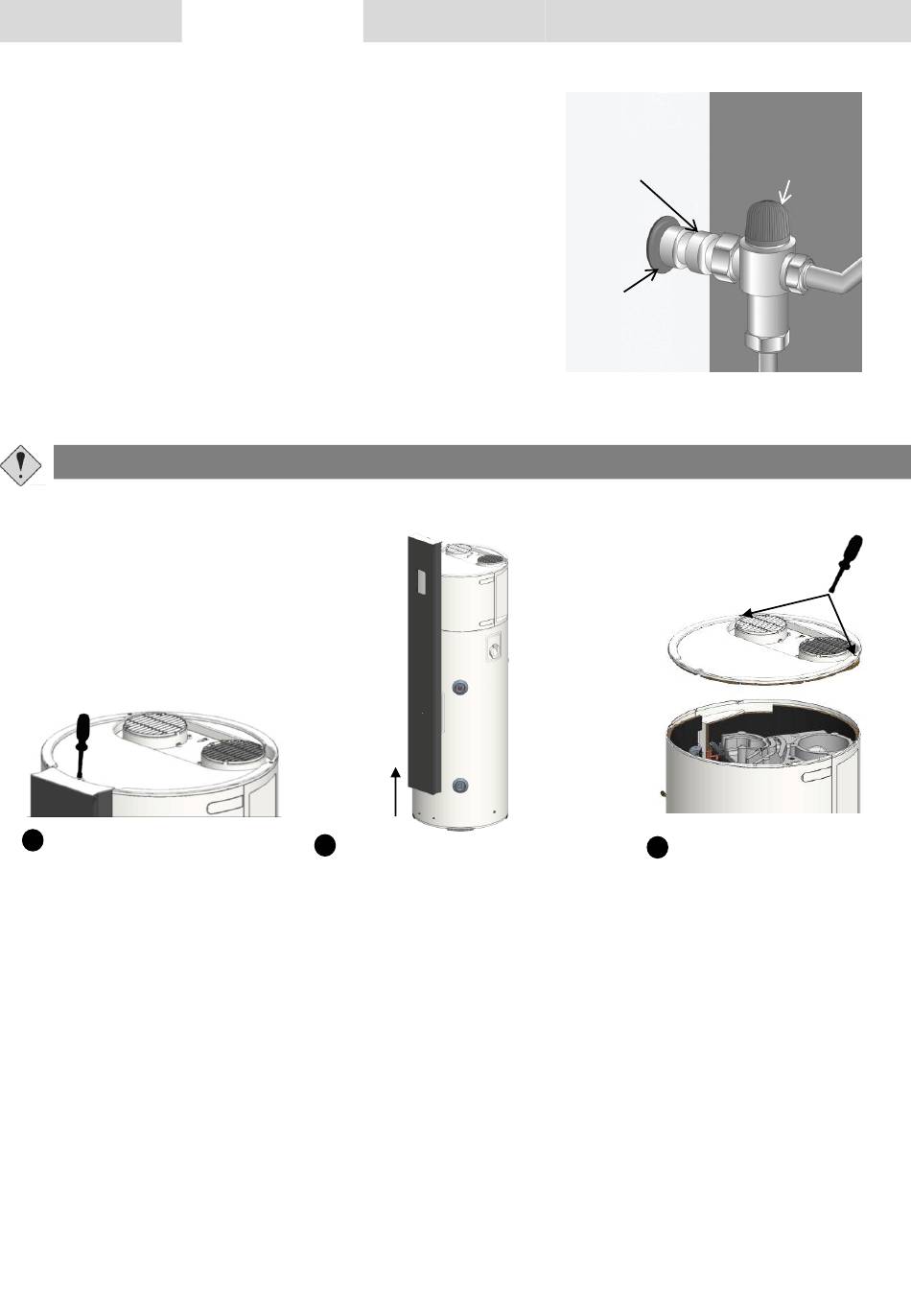

Remove the locking screw
1
from the column.
Installation
2 Lift the column off the inserts
at the bottom, paying attention
to the control screen cable and the
earth cable.
Use Maintenance
Dielectric
Hot water
outlet
Warranty
Temperature
union limiter
3 Unscrew the
screws on the top and then
unclip it.
2 rear
