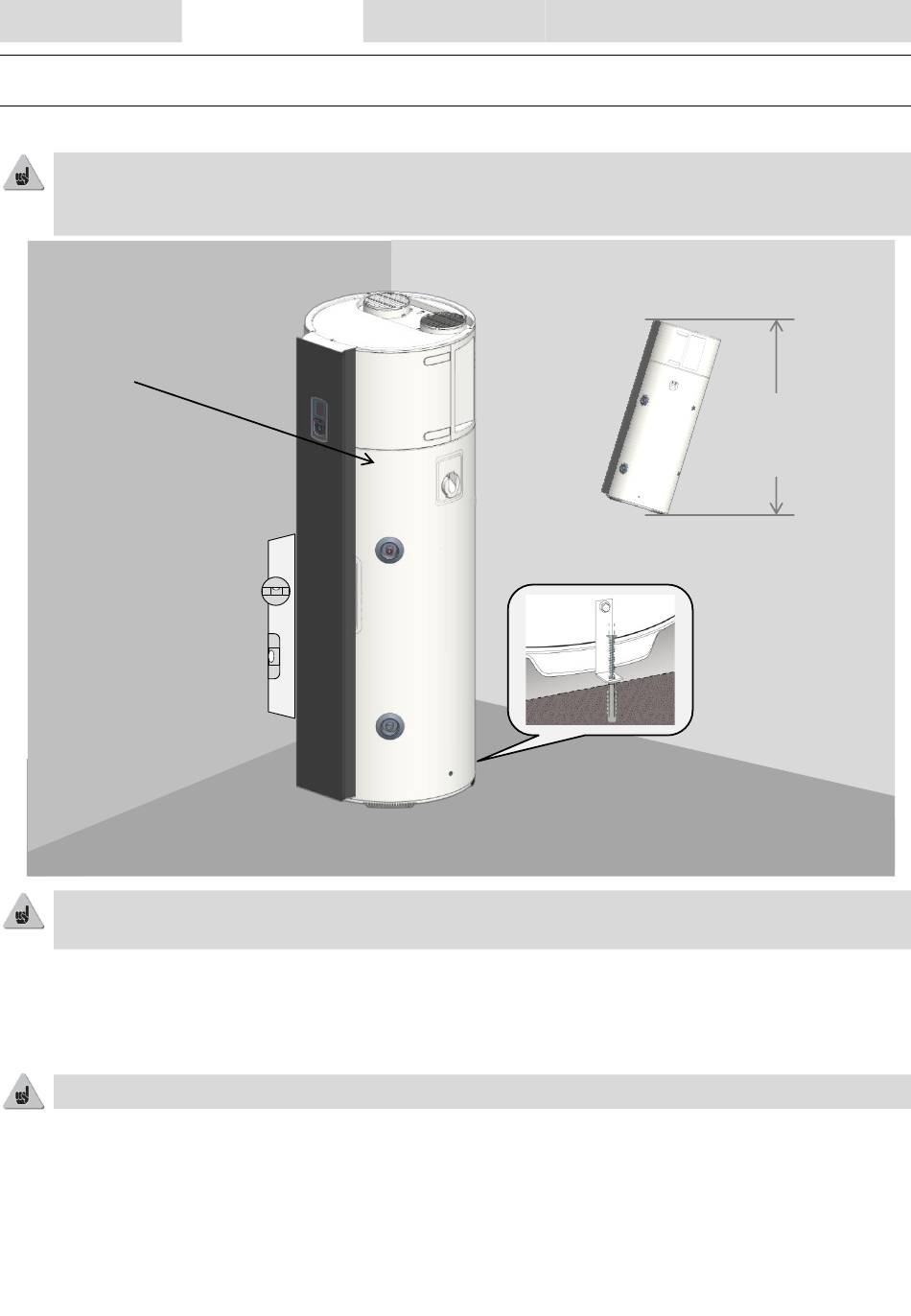

1. Positioning the product

If the appliance is set up in a suspended ceiling, attic, or above living space, a storage area
or a sensitive zone, a drain pan must be installed underneath the water heater. A drainage device
connected to the sewer system is required. In all other cases, it is strongly recommended.
The identification label
located above the hot
water outlet must be
accessible at all times.
Before filling, the water
heater must be levelled,
using shims if necessary.
Use the adjustable feet
built into the product
The water heater must (in accordance with article 20 of standard EN 60335-1) be affixed to the floor
using the mounting bracket provided.
Whatever the chosen installation configuration, the installation site must comply with the IP X1B protection
index, in accordance with the requirements of NFC 15-100.
The floor must withstand a minimum load of 400 kg/m² (surface area under the water heater).
Failure to comply with the installation recommendations may result in the system underperforming.

Installation

Installation
The water heater must be installed on a smooth, level surface
and must not be in contact with a wall.
Use Maintenance
Minimum height from floor to ceiling
required to raise the product:
Warranty
200L: 1817 mm
240L: 2006 mm
270L: 2156 mm
Fix the heater using
the mounting
bracket provided.
