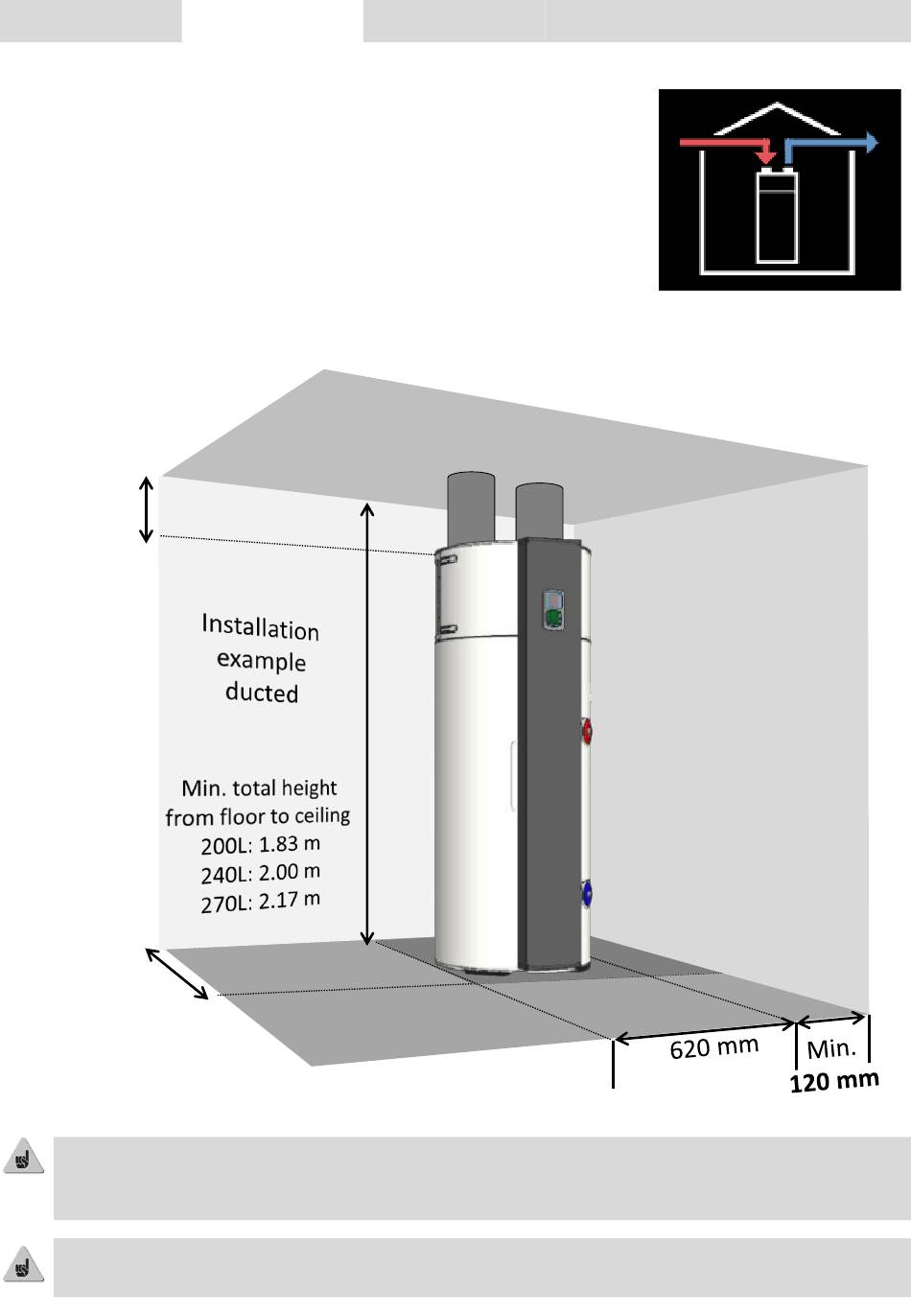

3. Installation in ducted configuration (2 ducts).

✓ Minimum frost-free room (T > 1 °C).
✓ Heat pump operation between -5 °C and 43 °C.
✓ Set the "Installation type" parameter to "Individual duct (Ext./Ext.)".
✓ Recommended location: habitable space (heat loss from the water heater
is not lost), close to external walls. Avoid placing the water heater and/or
ducts close to bedrooms, to reduce noise levels.
Examples of premises:
• Laundry room,
• Cellar,
• Cupboard in hallway.
120 mm
min.
670 mm
min.
Observe maximum duct lengths. Use insulated rigid or semi-rigid ducts. Install air inlet and outlet
grilles to prevent foreign bodies from entering. Caution: air inlet and outlet grilles with manual
obstruction are prohibited.
Leave a space of 500 mm in front of the electrical equipment and 300 mm in front of the hydraulic
equipment, so that the water heater is accessible for periodic maintenance.
