Presentation

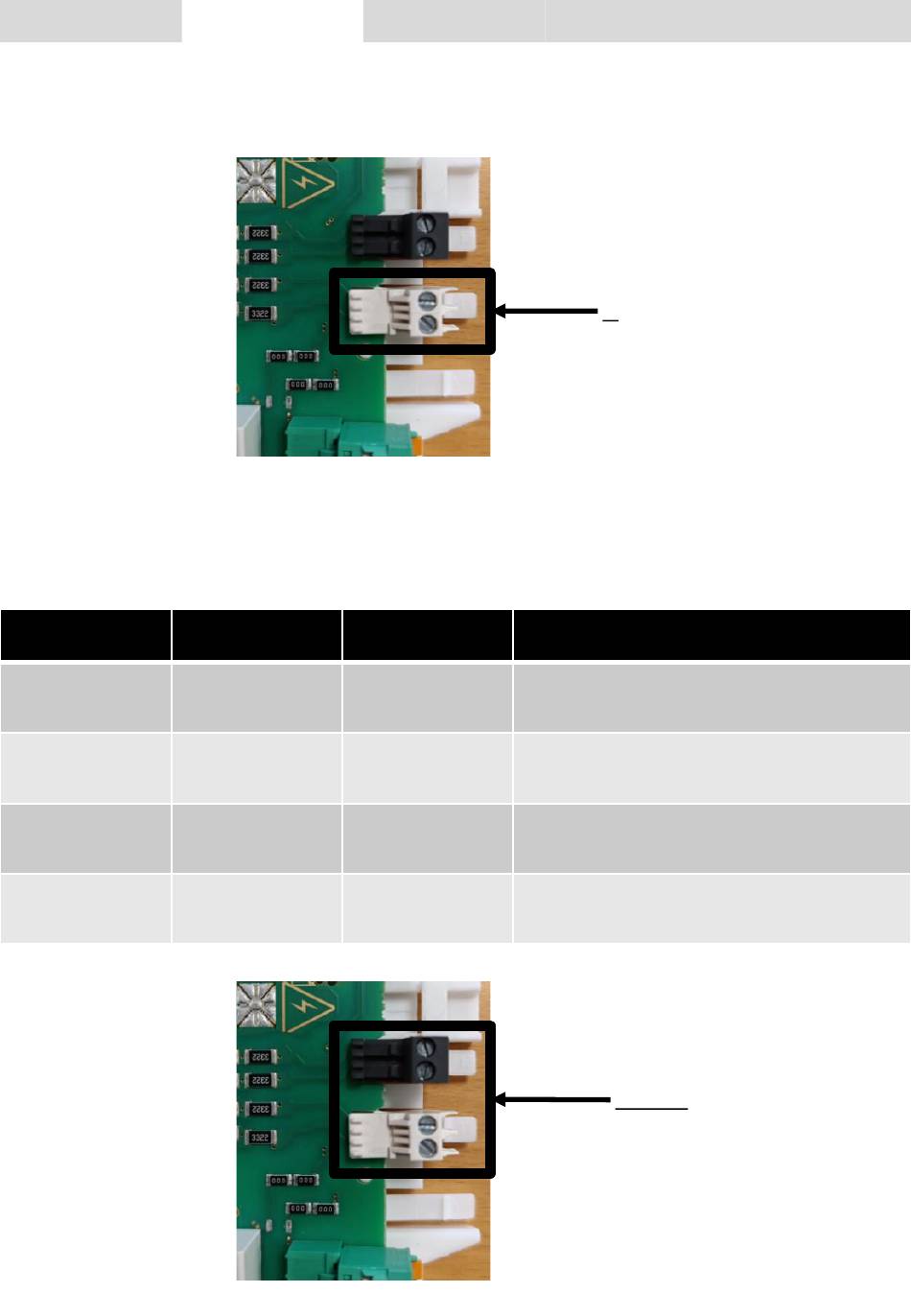

8.1. Connection to the Off-peak/Peak (OP/P) signal
The OP/P signal is wired to terminal I1 on the PCB.
8.2. Connection to the Smart Grid function
For appliances to be connected to a Smart Grid installation, the EMS (Energy Management System) needs
to be connected to the water heater.
The wiring must be connected to terminals I1 and I2 of the PCB, according to the following EMS states:
PCB input I1
0
0
1
1
Installation
PCB input I2
0
1
0
1
Use
EMS states
0:0
1:0
0:1
1:1 Switch-on at maximum power (Forced On)
Maintenance
I1
Operating mode
Normal Operation
Switch-on recommendation
Switch-off command
I2 and I1
