Presentation

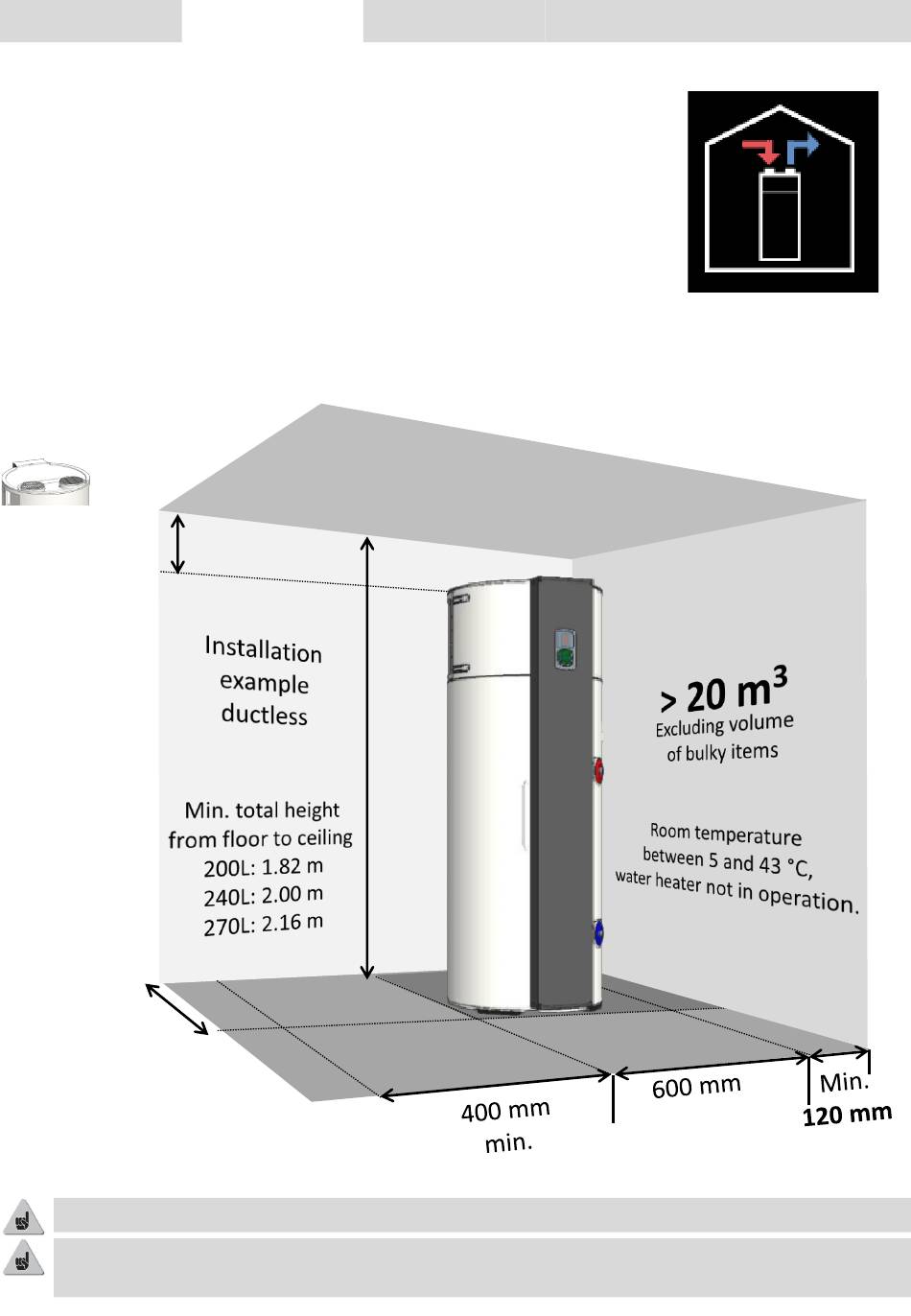

2. Installation in non-ducted configuration.

✓ Unheated room with a temperature above 5 °C, isolated from heated
rooms in the house.
✓ Heat pump operation between 5 °C and 43 °C.
✓ Set the "Installation type" parameter to "Ductless (Int./Int.)".
✓ Recommended location = buried or semi-buried, room with temperature
above 10 °C all year round.
Examples of premises:
• Garage: recovery of free energy released from domestic appliances
in operation.
• Laundry room: Dehumidification of the room and recovery of energy lost
from washing machines and dryers.
Min.
100 mm
670 mm
min.
Respect the minimum specified spacing to prevent air recirculation.
Leave a space of 500 mm in front of the electrical equipment and 300 mm in front of the hydraulic
equipment, so that the water heater is accessible for periodic maintenance.
