7.5. Condensate drainage
Operating the heat pump generates condensation.

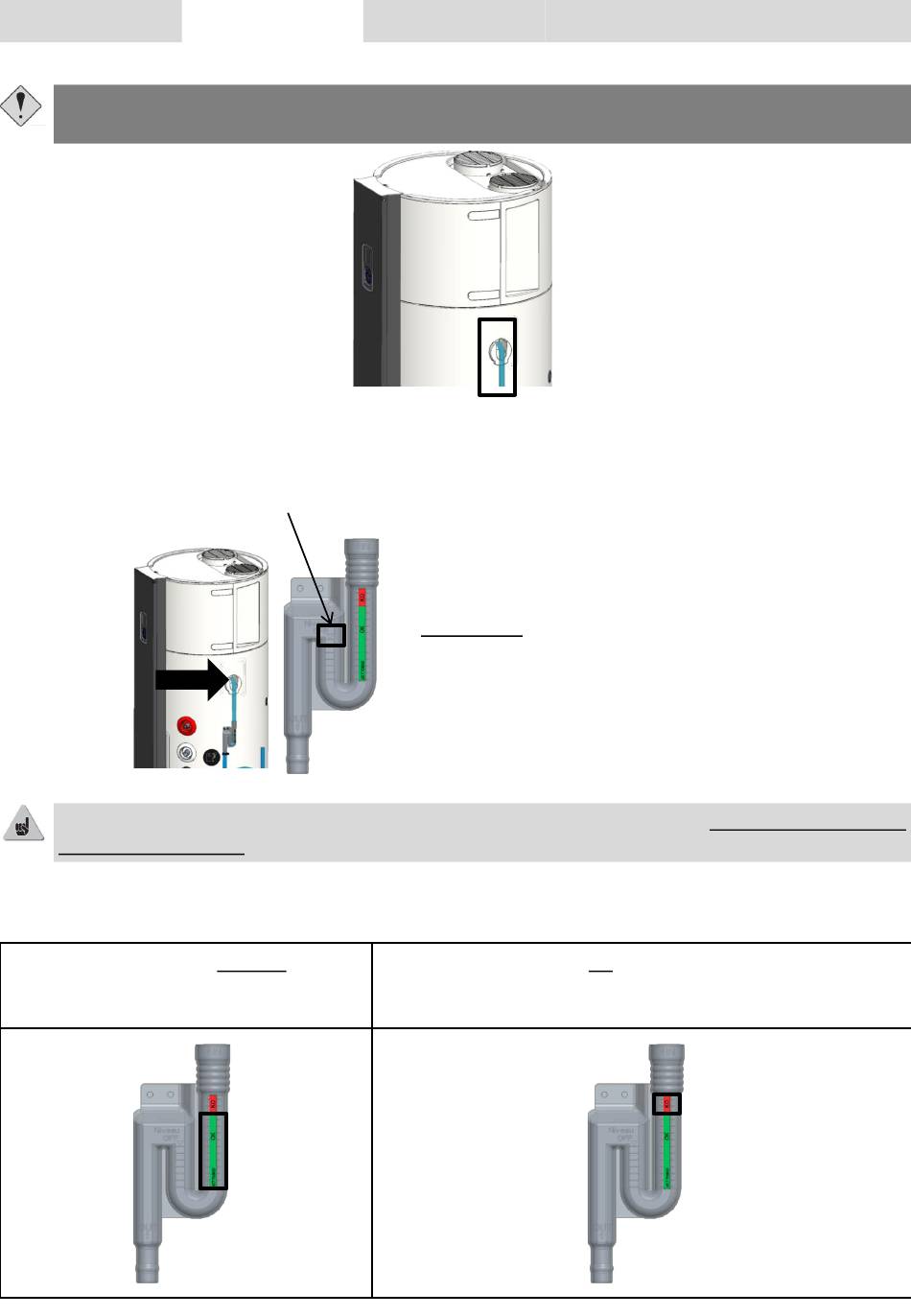

Condensed water is drained off via the pipe shown below.
7.5.1. Installing the siphon
With the product stopped, fill the
siphon with water up to the arrow,
through the condensate drain pipe.
Do not add a siphon downstream of the one already fitted to the product, the waste water outlet
must be unobstructed. Risk of condensate overflowing the heat pump.
7.5.2. Using the siphon
With the fan running, compare the water level with the colour bar.
The level remains in the OK zone (green).
The ductwork on the intake side is good.
Installation Use
Please note: this operation is not required
for an ambient installation.
In the case of a ducted product, the filled siphon
can be used to check that the ductwork is correct
on the intake side.
The water level is in the KO zone (red), and the extracted flow
rate is too low. The ductwork on the intake side is:
obstructed/crushed and/or too angled and/or too long
