en Installation instructions
Hob type
Induction hob
Full-surface induction hob
Gas hob
Electric hob
Secure the worktop to the built-in unit. Observe the in-
stallation instructions for the hob.

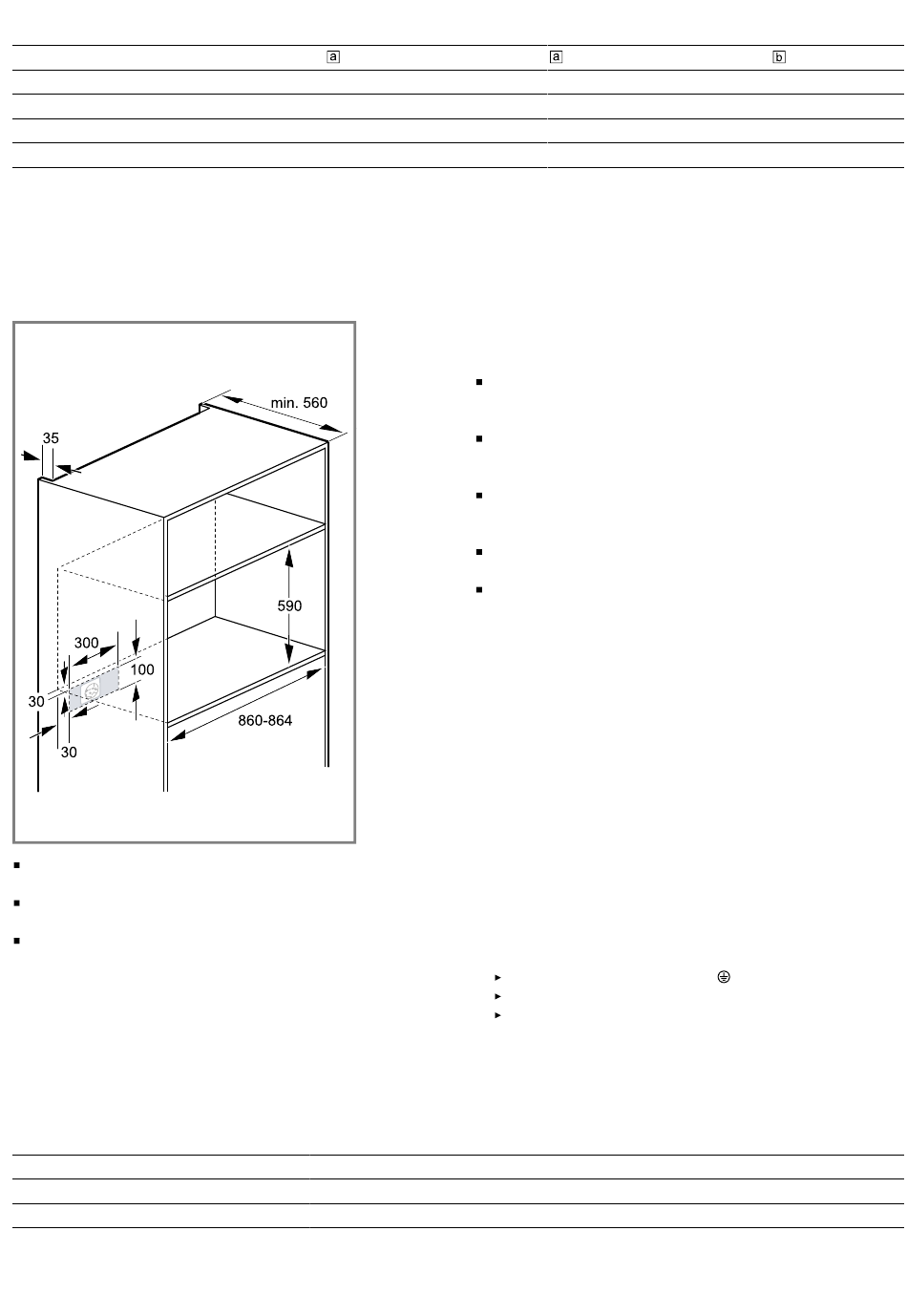

19.5 Installation in a tall unit
Observe the installation dimensions and the safety clear-
ances in a tall unit.
Ensure that the intermediate floor has a gap to the in-
stallation wall in order to ventilate the appliance.
If the tall unit has another back panel in addition to
the element back panels, this must be removed.
Only fit the appliance up to a height which allows ac-
cessories to be easily removed.
Appliance connected loads
You can select a different connection depending on the appliance model. In this case, you must connect the appli-
ance on the rear of the appliance using the power cord in accordance with the connection diagram.
Ensure that the power cord corresponds to H05VV-F or higher. Determine which wire cross section you require in ac-
cordance with the current load. If required, install copper bridges. Incorrect connections may damage the appliance.
Appliance connected load
3.3 kW
4.2 kW
50
raised in mm
37
58
27
27
19.6 Installing two appliances on top of each
other
Your appliance can also be installed above another ap-
pliance.
19.7 Electrical connection
In order to safely connect the appliance to the electrical
system, follow these instructions.
Electrically connecting an appliance without a
protective contact plug
Note: Only licensed specialists may connect the appli-
ance. Damage caused by incorrect connection is not
covered under the warranty.
An isolating switch must be integrated into the perman-
ent electrical installation according to the installation
regulations.
1.
2.
3.
Min. fuse protection at 1~
16 A
20 A
flush in mm
38
58
38
30
The fuse protection must correspond to the power rat-
ing specified on the appliance's rating plate and to
local regulations.
The appliance corresponds to protection class I and
must only be operated with a protective earth connec-
tion.
The appliance must be disconnected from the power
supply whenever installation work is being carried
out.
Contact protection must be ensured by the installa-
tion.
Only a licensed professional may connect appliances
without plugs. They are subject to the requirements of
the local electricity provider.
Identify the phase and neutral conductors in the
socket.
The appliance may be damaged if it is not connected
correctly.
Only connect the appliance to a mains voltage
between 220 und 240 V.
Connect the wires of the mains power cable accord-
ing to the colour coding:
Green/yellow = Conductor
Blue = Neutral conductor
Brown = Phase (external conductor)
Min. fuse protection at 2/3 N~
12 A
in mm
5
5
5
2
