en Appliance door
13.2 Attaching the rails
14 Appliance door
Appliance door
With good care and cleaning, your appliance retains its
appearance and remains fully functioning for a long time
to come. This will tell you how to clean the appliance
door.
Note: To ensure that the appliance door does not come
into contact with the fitted unit, the appliance door
opens slightly less than 90°.

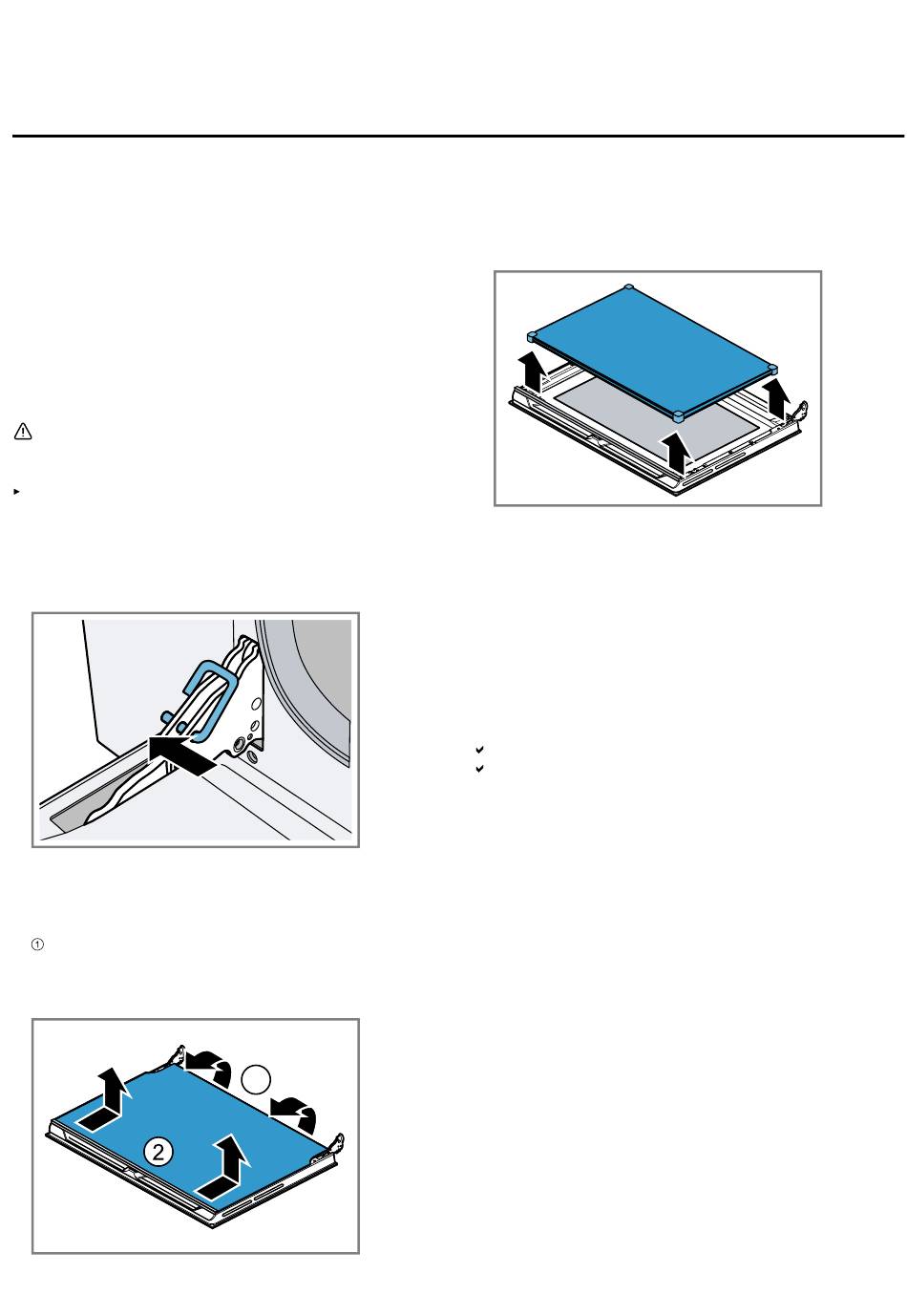

14.1 Removing the door panels
To facilitate cleaning, you can remove the glass panels
from the appliance door.
WARNING ‒ Risk of injury!
Scratched glass in the appliance door may develop into
a crack.
Do not use any harsh or abrasive cleaners or sharp
metal scrapers to clean the glass on the oven door,
as they may scratch the surface.
Open the appliance door fully.
1.
Use the security pins to lock the left- and right-hand
2.
hinges.
The locking pins must be fully inserted into the holes
in the hinges.
Use both hands to lift the lower section of the inner
3.
panel until the fastening pins come out of the holder.
To completely loosen the inner panel from the door,
4.
carefully pull the upper section of the inner panel out
of the profile and lift it.
42
1
Insert the hooks of the rail into the rear holes in the
1.
side panel.
Push the front hook of the rail into the hole.
2.
Lift out the inner panel and set it down carefully on a
5.
flat surface.
Remove the two intermediate panels and their hold-
6.
ers.
The two intermediate panels are not fastened using
retaining pins; instead, they are held in place using
holders.
To separate the two intermediate panels from each
7.
other, remove the holders.
Clean the door panels with glass cleaner and a soft
8.
cloth.
14.2 Fitting the door panels
Insert the two intermediate panels.
1.
Ensure that the intermediate panel is seated correctly.
All holders must lay flat against the outer panel.
If the Low-E symbol can be read on both intermediate
panels, both of the intermediate panels have been in-
serted correctly.
Insert the inner panel.
2.
Insert the inner panel into the profile first. The two
fastening pins must then engage in the holders
provided for them.
Remove the locking pins and close the appliance
3.
door.
Note: Do not throw away the locking pins. Store the
locking pins in a secure location. You always require the
locking pins when you remove the door or door panels
from the appliance. If you do not have any locking pins,
you can order these from customer service.
14.3 Detaching the appliance door
If it is particularly dirty, you can remove the appliance
door to clean it more thoroughly.
Open the appliance door fully.
1.
Use the security pins to lock the left- and right-hand
2.
hinges.
The locking pins must be fully inserted into the holes
in the hinges.
