INSTALLING THE "MODULE 600" UNIT
- C h o o s e t h e p l a c e f o r u n i t
installation according to the layout
of the room, the number of units
to be installed, and any limitations
imposed by the architecture. Check
the chosen place is suitable for
installation and maintenance work
on the unit.
- Install four M8 threaded rods into
the ceiling to hold the frame.
To install the FCLI unit, proceed as
follows:

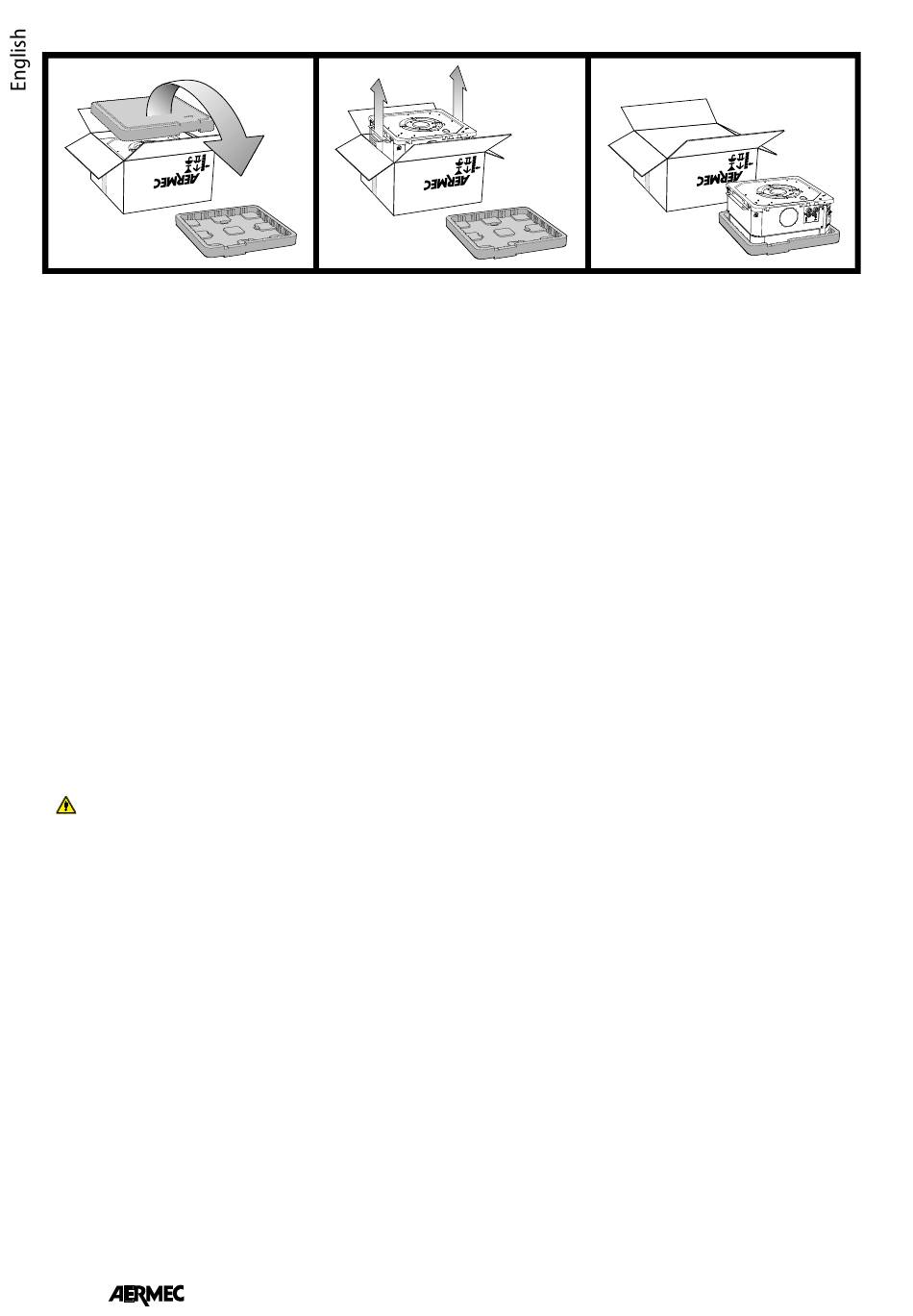

- u p t u r n t h e b ox o f t h e F C L I
cassette-type fan coil
- open the cardboard box
- remove the box; you are advised
to make cuts on the corners of the
box and remove the cardboard in
separate pieces
- remove the upper part of the
packaging frame (that protects the
unit during transportation)
- remove the fan grille and take out
the Inverter
T h e F C L I 6 0 0 x 6 0 0 d r i v e r
inverter is integrated to the
group motor-fan.
- I f i t i s n e ce s s a r y to f i t a ny
accessories (fresh air kit or delivery
to an adjacent room, hot water
valve), carry out these operations
before installing the machine on
the ceiling.
WARNING: consult the relevant
manuals of the accessories
Do not handle the unit using the
water connections; use the specific
brackets for this purpose.
- lift the unit carefully by means
of the brackets and, keeping it
slightly inclined, attach it to the 4
threaded bars using 8 nuts (4 of
which are self-locking). Use the
nuts to adjust the height of the
unit; finally, check that the unit is
installed in a horizontal position
- feed the hydraulic pipes through
the suspended ceiling to the
attachment plate on the unit
- make the plumbing connections as
described in the relative chapter
- Take the condensate discharge
piping to the relative fitting on the
attachment plate
- bleed the system (the drain valve
for the 2-pipe circuit is on the
outside of the attachment plate).
The drain valve for the heat circuit
of 4-pipe systems is inside (to
access it, remove the polystyrene
tray)
18
- make the condensate drainage
connection as described in the
relative chapter
- the electric box is supplied with
the grille accessory (GLLI/GLF10)
- bring the power supply and
command cables close to the
electric box; ensure the cables
are long enough to follow the
movement of the electric box on
the guides during the assembly
and disassembly phases
- connect the Inverter to the electric
box, using the cables supplied
- consult the manuals of the grille
accessories; the instructions for
assembling and connecting the
electric box can be found in the
manual supplied with the grille
accessory
- After completing the connections
and inserting the electric box in its
seat in the FCLI unit, fix it with the
two screws.
WARNING: fix the safety cable to
the fixing screw of the electric
box (to the side of the water
connec tions). The snap -hook
of the safety cable must then be
connected to the grille frame.
- T h e g r i l l e f r a m e m u s t b e
positioned so that the glass with
the AERMEC logo is in line with the
corner of the electric box.
- Fix the grille to the safety cable.
- Fix the grille with the 4 screws.
WARNING!! Tighten the screws with
a maximum tightening torque of
0.45 Nm. You are advised to use
a screwdriver. Do not use non-
calibrated electric screwdrivers.
Th e t ray w i l l b e i r re p a ra b l y
damaged if tightened too far.
- Remove the suction grille by
means of the two ¼ turn bolts.
- Assemble the air filter.
- Reassemble the suction grille by
means of the two ¼ turn bolts.
- adjust the position of the unit from
the support bracket by means of
the nuts so that the unit is level
and the frame rests slightly on the
suspended ceiling
- Start the fan coil unit and carry out
a function test, the functions are
described in the user manual.
• I
nstallIng near a wall
If the unit is to be installed near a
wall, the corresponding delivery
outlet can be closed using the
gasket supplied.
