INSTALLATION
WARNING: before carrying out any
work, make sure the power supply is discon-
nected.
WARNING: before carrying out any work, put
the proper individual protection devices on.
WARNING: the device must be installed in
compliance with the national plant engi-
neering rules.
WARNING: the electrical connections, the
installation of the fan coils and relevant
accessories should be performed by a tech-
nician who has the necessary technical and
professional expertise to install, modify,
extend and maintain systems, and who is
able to check the systems for the purposes
of safety and correct operation (in this man-
ual they will be indicated with the general
term "persons with specific technical skills").
In the specific case of electrical wirings, the
following must be checked:
- measurement of the electrical system insula-
tion strength
- continuity test of the protection wires
WARNING: install a device, main switch, or
electric plug so you can fully disconnect the
device from the power supply.
The essential indications to carry out a proper
installation are given below.
The final touches to all the operations are,
however, left to the experience of the instal-
lation engineer in accordance with the spe-
cific needs.
The water, condensate discharge and electri-
cal circuit ducts must be provided for.
The fan coil should be installed in such a way
as to facilitate routine (filter cleaning) and
special maintenance operations, as well as
access to the air drain valve on the side of
the unit frame (connections side).
Do not install units in rooms where there are
inflammable gases or acid or alkaline sub-
stances that could irreparably damage the
aluminium-copper heat exchanger or inter-
nal plastic parts.
Do not install the unit in workshops or kitch-
ens, where oil vapours mixed with the treat-
ed air can be deposited on the exchange
coils, reducing their effectiveness, or on the
internal parts of the unit, damaging the
plastic components.
The fan coil must be installed in such a
position that the air can be distributed
throughout the room and so that there are
no obstacles (curtains or objects) to the
passage of the air from the suction grilles.
Choose a position at the centre of the room
whenever possible; adjusting the air output
allows air to be distributed optimally within
the room. Generally the best position of the
fins is that which allows the launch of the air
adhering to the ceiling for the coined effect,
during cold functioning.
On the side of the deflectors there is an indi-
cation of the opening positions for correct
operation:

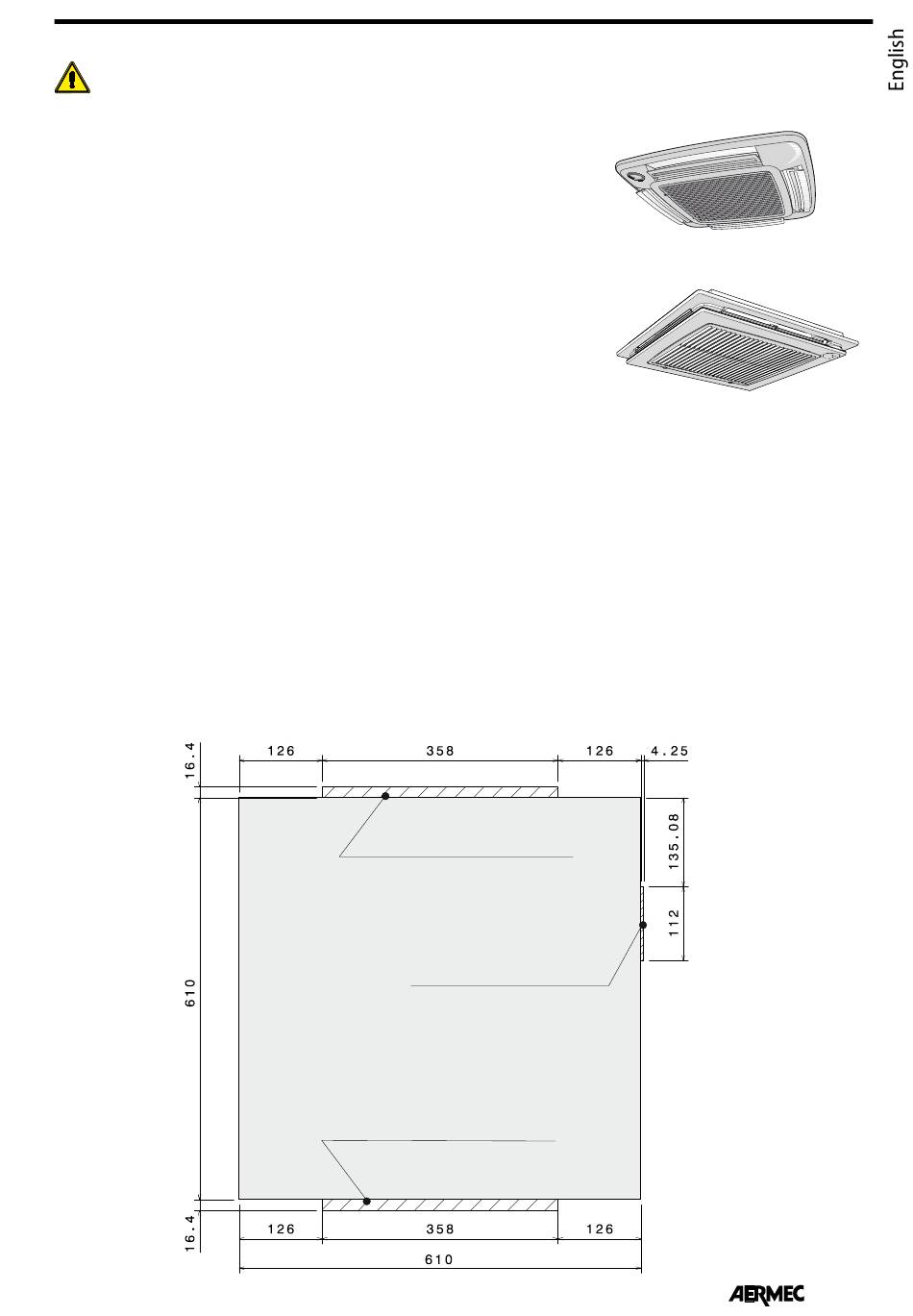

RECOMMENDED INSTALLATION TEMPLATE
Module "600"
Max. dimensions of installation bracket
Max. dimensions of water connections
Max. dimensions of installation bracket
- Module 600 (GLLI) 20 ° hot opening;
- Module 600 (GLLI) 10 ° cold opening;
- Module 600 (GLFI) maximum hot opening;
- Module 600 (GLFI) maximum cold opening;
Depending on the user's needs, the fins can
be adjusted to the intermediate positions, or
completely closed.
Thanks to the special shapes of the fins, the
machine can also function with the deflec-
tors completely closed.
Do not install at a height above three metres.
The FCLI unit is prepared for connections
with channelling for the fresh air and for the
delivery of treated air to an adjacent room.
