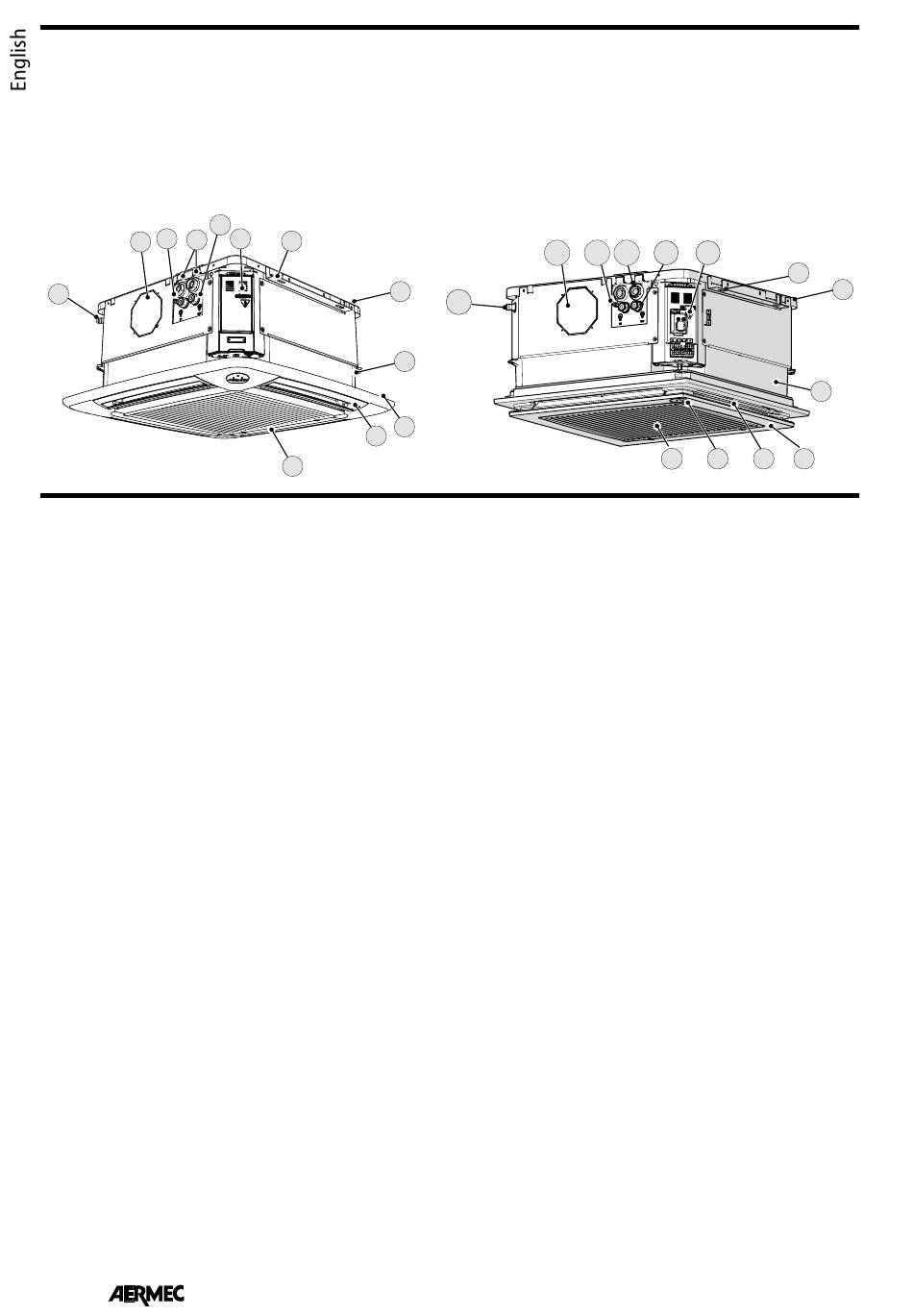

MAIN COMPONENTS
1 Grille with air filter (
GLLI-GLFI
2 Air delivery deflector (
GLLI-GLFI
3 Grille frame ( )
GLLI-GLFI
4 Tray
5 Base unit
FCLI (module 600)
(GLLI100) (GLLI100N) (GLLI100EH)
9
11 10
12
DESCRIPTION
The FCLI cassette-type fan coil is a room air
treating unit. The FCLI concentrates high
technological and functional characteristics
that make it the ideal climate control unit
for all types of room. The supply of climate-
controlled air is distributed throughout the
room. FCLI generates heat if included in a
heating system with boiler or heat pump,
but may also be used in the summer as an air
conditioner if the heating system has a water
chiller.
The fan coils are designed for 2- and 4-pipe
systems.
The unit is installed in a suspended ceiling with
the possibility to send conditioned air to
adjacent rooms and introduce external air
regardless of unit ventilation. Thanks to its
dimensions, the FCLI with "module 600" can
be perfectly integrated in standard 600x600
suspended ceiling panelling.
BASE
The unit has an integrated metal structure. The
load-bearing base is in galvanised sheet steel
and is varnished with polyester powders.
The following are fixed to the base: fixing
brackets, coils, motor and fan, condensate
discharge pump, attachment plate, control
board unit and condensate drip tray. By
means of the flanges, it allows the channels
(for renewing environmental air and/or deliv-
ery to an adjacent room) to be joined to the
sides.
FASTENING BRACKETS
Galvanised steel clamps for attaching the unit
to the ceiling.
TRAY
Tray closing off the unit. Made of injection co-
moulded polystyrene to avoid thermal dis-
persion and the formation of condensate, it
conveys conditioned air towards the fins and
16
) 6 Fastening brackets
) 7 Electrical box
8 Water connections (only for 4 pipes)
9 Water connections (2 pipes)
10 Air drain valve
8
7
6
2
1
from the condensate drip tray.
The air suction conveyor is equipped with a
protective grille that impedes access to the
moving fan.
THERMAL EXCHANGE COIL
The coils used have copper pipes and corru-
gated or turbulent aluminium fins. They
are designed to offer the maximum heat
exchange surface. All batteries are provided
with air bleed pipes and water drain valves,
located respectively on the highest and low-
est point of the battery circulation.
THREE-WAY VALVE
Internal 3-way valve, of the all-or-nothing type,
with fast connection actuator and visual sig-
nalling of the position, assembled as stand-
ard on the heating/cooling coil, powered
with a voltage of 230V ~ 50Hz.
FAN UNIT
The fan unit, with the latest axial-centrifugal fan
designed to obtain low-sound emissions, is
dynamically and statically balanced.
The three-phase brushless electric motor is
powered by a dedicated inverter device that
allows the ventilation speed to be continu-
ously varied.
The electric motor is cushioned with elastic
supports and the steel shaft is mounted on
bearings and resists salty fog in accordance
with ASTM B117/64.
The fan unit can be easily accessed for cleaning
and maintenance.
CONDENSATE DISCHARGE DEVICE
The condensate discharge device disposes of
the condensate that is produced by the unit
and deposited in the polystyrene basin. The
device consists of a control board, a non-
return valve, a 3-level float, and a pump with
a maximum head of 800mm. The unit can
be easily connected to the condensate dis-
charge system by means of a plastic connec-
tor with an external Ø of 16mm.
ALARM: when the level of condensate in the
FCLI (module 600)
(GLFI10) (GLFI10N) (GLFI10M) (GLFI10EH)
12
5
13
4
3
11 Push-out, coupling for air delivery in an
adjacent room
12 Condensate drain
9 8
11 10
1
2
tray reaches the prefixed limit, the alarm will
stop the flow of water to the battery, allow-
ing only the fan to function.
WATER CONNECTIONS
The attachment plate groups together the
water connections and the vent of the coil's
primary circuit for 2-pipe and 4-pipe systems.
The plates contain raised symbols that iden-
tify the input (IN) and output (OUT) water
connections for the water.
(Accessory)
GLLI/ GLFI
Suction and delivery grille unit
The grille is part of the
GLLI100N/GLLI10N/ GLLI10M GLLI100EH/
range grille unit (obliga-
GLFI10EH and GLLI20
tory accessory).
The form and opening of the intake slats were
developed in order to have the best possible
distribution of the air, both when functioning
in winter as well as in summer.
Suction occurs through the central grille, and
delivery through the manually adjustable,
perimetric slots. In plastic, colour RAL 9010,
it contains the air filter that can be easily
removed for cleaning. the
be interfaced with an external control panel
(not included) with thermostat and ventila-
tion speed control, with a 0-10V output.
FILTERING SECTION
Mechanical air filter with ABS frame, colour
RAL9010.
Filter in self-extinguishing class V0 (UL94).
Easily removable and made from regenerable
materials. May be cleaned by washing.
CONTROL PANEL
Use a control panel with thermostat and venti-
lation speed control, with 0-10V output.
7
6
5
3 4
GLLI100/GLLI10
need to
GLLI/GLFI
