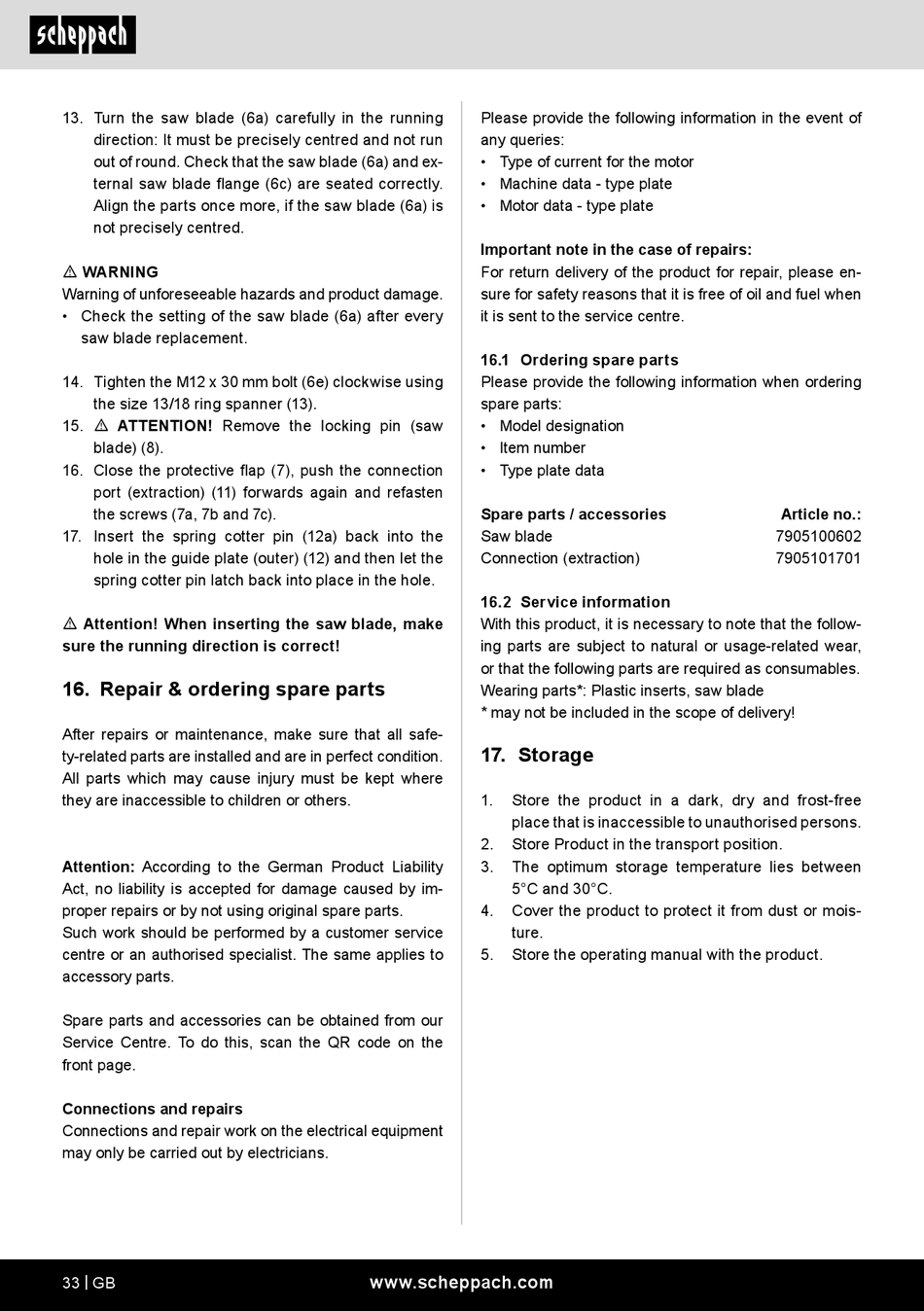

13. Turn the saw blade (6a) carefully in the running
direction: It must be precisely centred and not run
out of round. Check that the saw blade (6a) and ex-
ternal saw blade flange (6c) are seated correctly.
Align the parts once more, if the saw blade (6a) is
not precisely centred.
m WARNING
Warning of unforeseeable hazards and product damage.
• Check the setting of the saw blade (6a) after every
saw blade replacement.
14. Tighten the M12 x 30 mm bolt (6e) clockwise using
the size 13/18 ring spanner (13).
15. m ATTENTION! Remove the locking pin (saw
blade) (8).
16. Close the protective flap (7), push the connection
port (extraction) (11) forwards again and refasten
the screws (7a, 7b and 7c).
17. Insert the spring cotter pin (12a) back into the
hole in the guide plate (outer) (12) and then let the
spring cotter pin latch back into place in the hole.
m Attention! When inserting the saw blade, make
sure the running direction is correct!
16. Repair & ordering spare parts
After repairs or maintenance, make sure that all safe-
ty-related parts are installed and are in perfect condition.
All parts which may cause injury must be kept where
they are inaccessible to children or others.
Attention: According to the German Product Liability
Act, no liability is accepted for damage caused by im-
proper repairs or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialist. The same applies to
accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
Connections and repairs
Connections and repair work on the electrical equipment
may only be carried out by electricians.
33 | GB
Please provide the following information in the event of
any queries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
Important note in the case of repairs:
For return delivery of the product for repair, please en-
sure for safety reasons that it is free of oil and fuel when
it is sent to the service centre.
16.1 Ordering spare parts
Please provide the following information when ordering
spare parts:
• Model designation
• Item number
• Type plate data
Spare parts / accessories
Saw blade
Connection (extraction)
16.2 Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consumables.
Wearing parts*: Plastic inserts, saw blade
* may not be included in the scope of delivery!
17. Storage
1. Store the product in a dark, dry and frost-free
place that is inaccessible to unauthorised persons.
2. Store Product in the transport position.
3. The optimum storage temperature lies between
5°C and 30°C.
4. Cover the product to protect it from dust or mois-
ture.
5. Store the operating manual with the product.
www.scheppach.com
Article no.:
7905100602
7905101701
