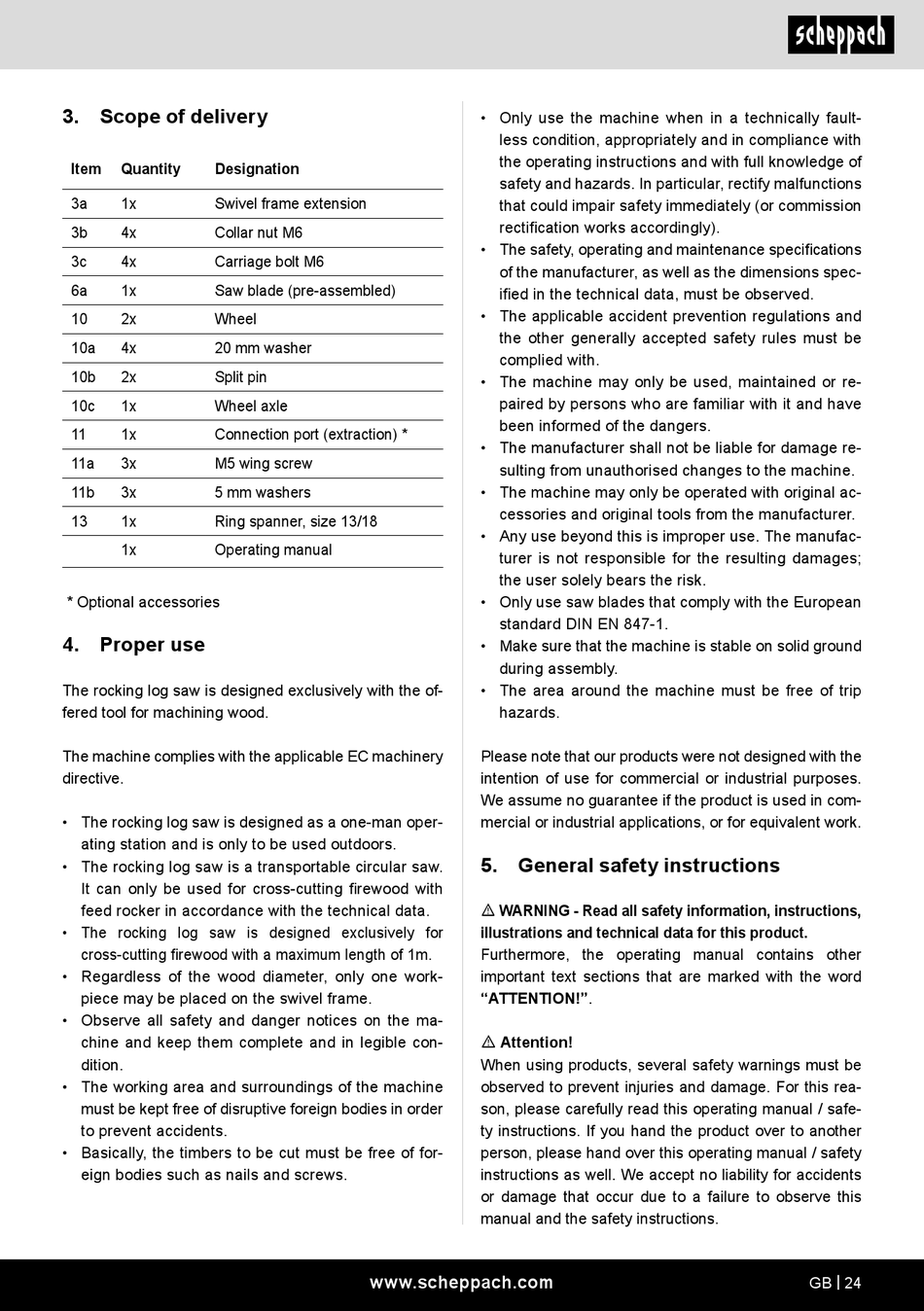

Scheppach HS550 Originalbetriebsanleitung Seite 24

3. Scope of delivery
Item Quantity Designation
3a 1x Swivel frame extension
3b 4x Collar nut M6
3c 4x Carriage bolt M6
6a 1x Saw blade (pre-assembled)
10 2x Wheel
10a 4x 20 mm washer
10b 2x Split pin
10c 1x Wheel axle
11 1x Connection port (extraction) *
11a 3x M5 wing screw
11b 3x 5 mm washers
13 1x Ring spanner, size 13/18
1x Operating manual
* Optional accessories
4. Proper use
The rocking log saw is designed exclusively with the of-
fered tool for machining wood.
The machine complies with the applicable EC machinery
directive.
• The rocking log saw is designed as a one-man oper-
ating station and is only to be used outdoors.
• The rocking log saw is a transportable circular saw.
It can only be used for cross-cutting firewood with
feed rocker in accordance with the technical data.
• The rocking log saw is designed exclusively for
cross-cutting firewood with a maximum length of 1m.
• Regardless of the wood diameter, only one work-
piece may be placed on the swivel frame.
• Observe all safety and danger notices on the ma-
chine and keep them complete and in legible con-
dition.
• The working area and surroundings of the machine
must be kept free of disruptive foreign bodies in order
to prevent accidents.
• Basically, the timbers to be cut must be free of for-
eign bodies such as nails and screws.
• Only use the machine when in a technically fault-
less condition, appropriately and in compliance with
the operating instructions and with full knowledge of
safety and hazards. In particular, rectify malfunctions
that could impair safety immediately (or commission
rectification works accordingly).
• The safety, operating and maintenance specifications
of the manufacturer, as well as the dimensions spec-
ified in the technical data, must be observed.
• The applicable accident prevention regulations and
the other generally accepted safety rules must be
complied with.
• The machine may only be used, maintained or re-
paired by persons who are familiar with it and have
been informed of the dangers.
• The manufacturer shall not be liable for damage re-
sulting from unauthorised changes to the machine.
• The machine may only be operated with original ac-
cessories and original tools from the manufacturer.
• Any use beyond this is improper use. The manufac-
turer is not responsible for the resulting damages;
the user solely bears the risk.
• Only use saw blades that comply with the European
standard DIN EN 847-1.
• Make sure that the machine is stable on solid ground
during assembly.
• The area around the machine must be free of trip
hazards.
Please note that our products were not designed with the
intention of use for commercial or industrial purposes.
We assume no guarantee if the product is used in com-
mercial or industrial applications, or for equivalent work.
5. General safety instructions
m WARNING - Read all safety information, instructions,
illustrations and technical data for this product.
Furthermore, the operating manual contains other
important text sections that are marked with the word
"ATTENTION!".
m Attention!
When using products, several safety warnings must be
observed to prevent injuries and damage. For this rea-
son, please carefully read this operating manual / safe-
ty instructions. If you hand the product over to another
person, please hand over this operating manual / safety
instructions as well. We accept no liability for accidents
or damage that occur due to a failure to observe this
manual and the safety instructions.
