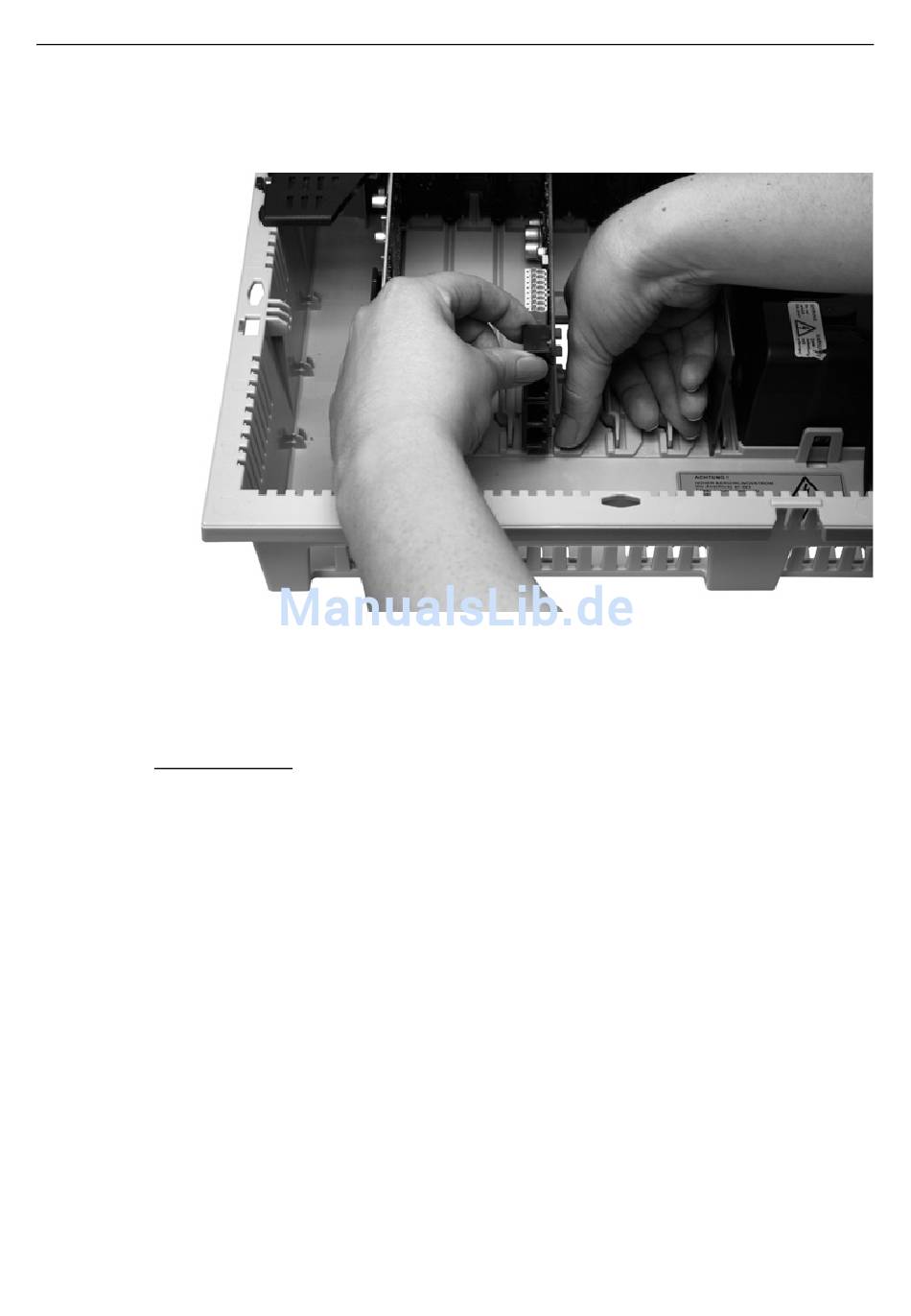

Fig. 13: Removing a module (COMpact 5000)

Closing the Casing

Requirements
– After installation, cables carefully reinserted into the cable space
Note: The connections for the first commissioning (connection to a PC/net-
work and, if necessary, connection of a few end devices) must be made
before the casing is closed. Alternatively, you can prepare them by laying a
connecting cable that leads out of the housing.
1.
Place the upper edge of the cover onto the top of the casing.
2.
Press the lower edge of the cover against the casing until it clicks into place.
See
