Preparation (COMpact 5000)
Important: Before you insert a COMpact 2BRI module, first make the nec-
essary settings on the module (operating modes and terminators).
The slot on the far left (A) is exclusively reserved for the COMpact CPU
module included in the scope of supply. The slot on the far right (4) is exclu-
sively reserved for the COMpact 4DSP module.

Inserting a Module

1.
Slide the module into the board guides with the component side pointing to
the left. See
2.
Press the module upward until the board lock clicks into place. See

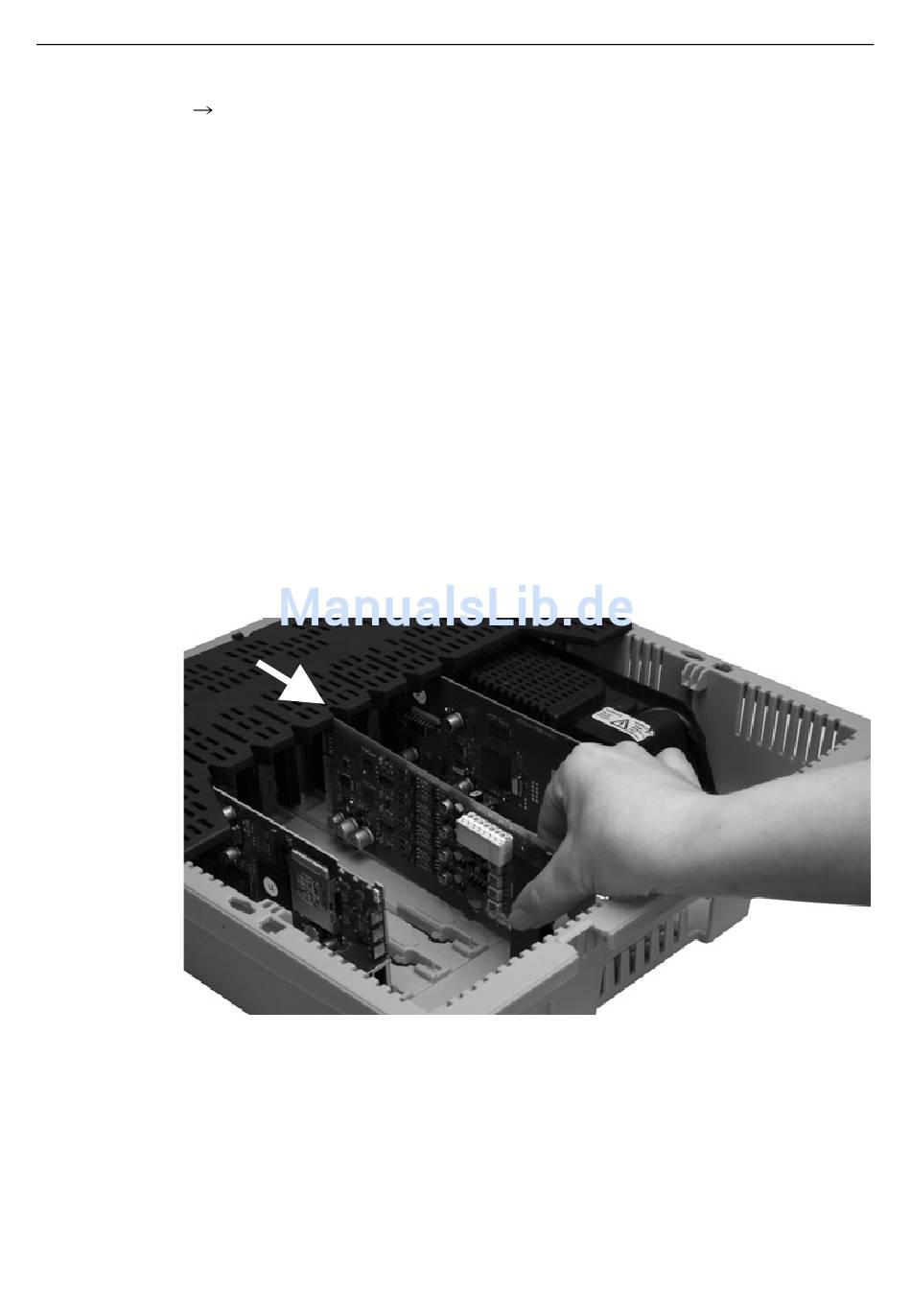

Fig. 12: Inserting a module (COMpact 5000)

Removing a Module

1.
Unlatch the board lock, for example with your right thumb. See
2.
Remove the module with your other hand. See
78
Discharge electrostatic charges from yourself before touching the circuit
boards with your hands or any tools. To do this, touch a (preferably
earthed) metal object, such as the PBX's earthing terminal or a com-
puter case.
Fig. 12. Also pay attention to the board guide on the cover.
Fig.
COMpact 5000/R - Firmware Version 6.2 - Setup V01 03/2014
Fig.
Fig. 13.
