Preparation (COMpact 5000R)

Removing a Module

1.
Unlatch the board lock, for example with your right thumb. See
2.
Remove the module with your other hand. See

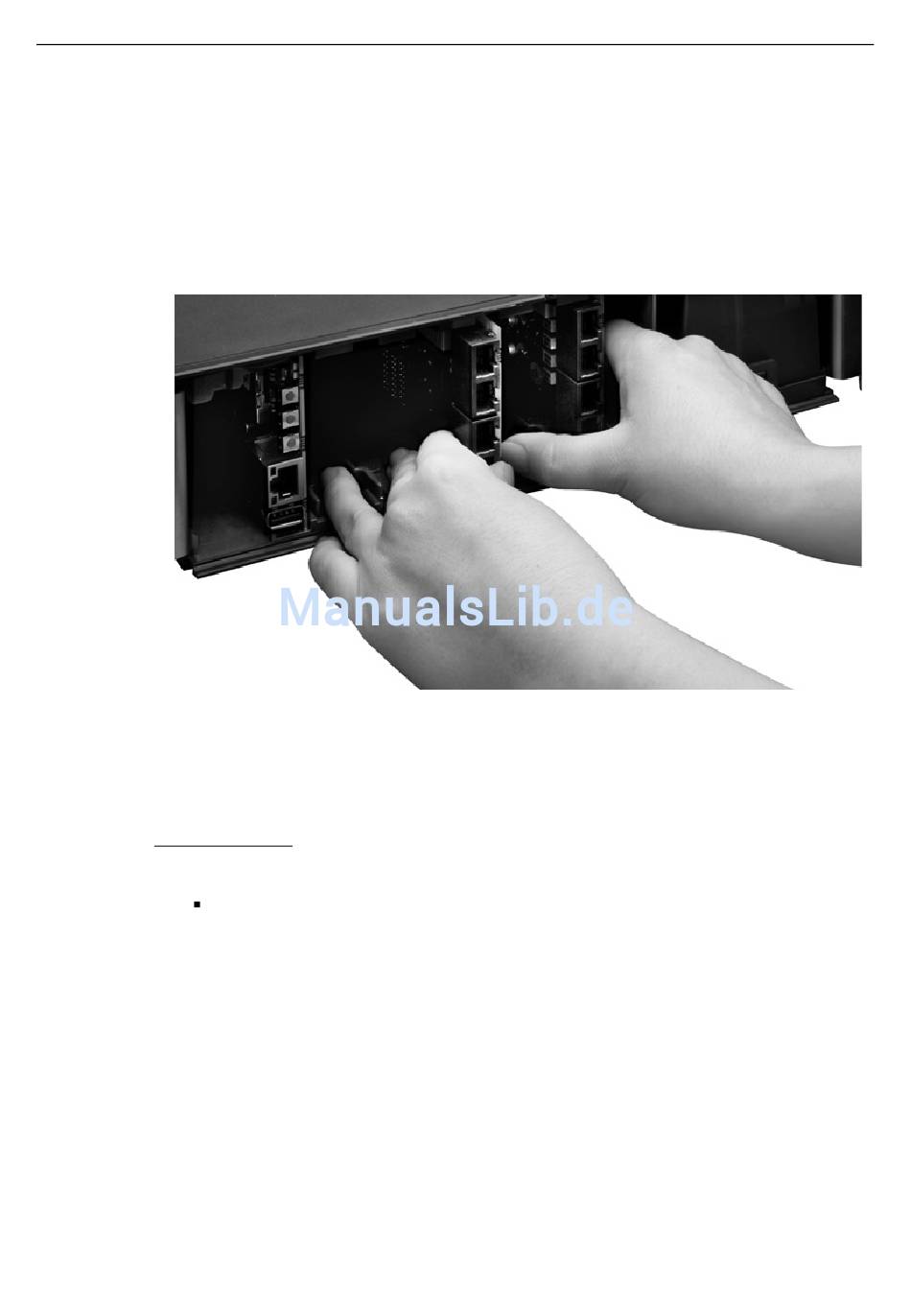

Fig. 17: Removing a module (COMpact 5000R)

Closing the Casing

Requirements
– Tools and material:
1.
Remove the dummy panels at those points where modules have been in-
serted by pressing them outward from the inside, for example with your
thumb. Siehe
Note: Dummy panels that have been removed can be reinserted any time.
For a COMpact 2FXO module with only two RJ-45 sockets you can break
a dummy panel into halves at intended breakpoint at the centre and reinsert
one of the halves.
2.
Place the front panel onto the casing.
3.
Secure the front panel with its four screws.
86
Screw driver (Phillips)
Fig. 18 on page
Fig.
87.
COMpact 5000/R - Firmware Version 6.2 - Setup V01 03/2014
Fig. 17.
17.
