Preparation (Modules)

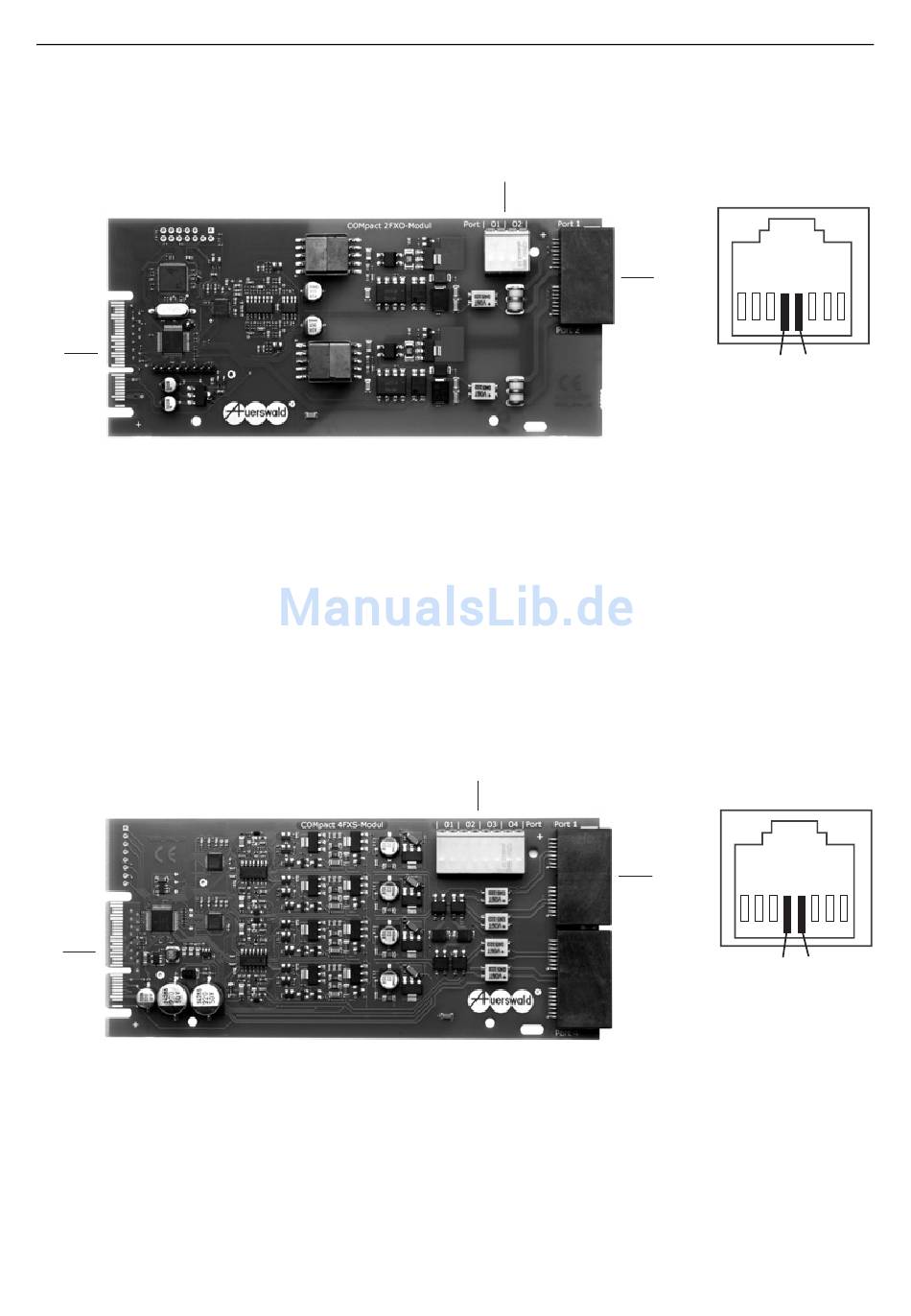

COMpact 2FXO Module Overview

C
A Two times two terminal clamps for the connection of analogue exchange
lines to the two external analogue ports
B Two RJ-45 sockets for the direct connection of analogue exchange lines to
the two external analogue ports
C Connector for attachment to the mainboard

COMpact 4FXS Module Overview

C
A Four times two terminal clamps for the connection of analogue end devices
to the four internal analogue ports
B Four RJ-45 sockets for the direct connection of analogue end devices to the
four internal analogue ports
C Connector for attachment to the mainboard
70
A
A
COMpact 5000/R - Firmware Version 6.2 - Setup V01 03/2014
B
B
8 7 6 5 4 3 2 1
b a
B B
8 7 6 5 4 3 2 1
b a
