Preparation (COMpact 5000)

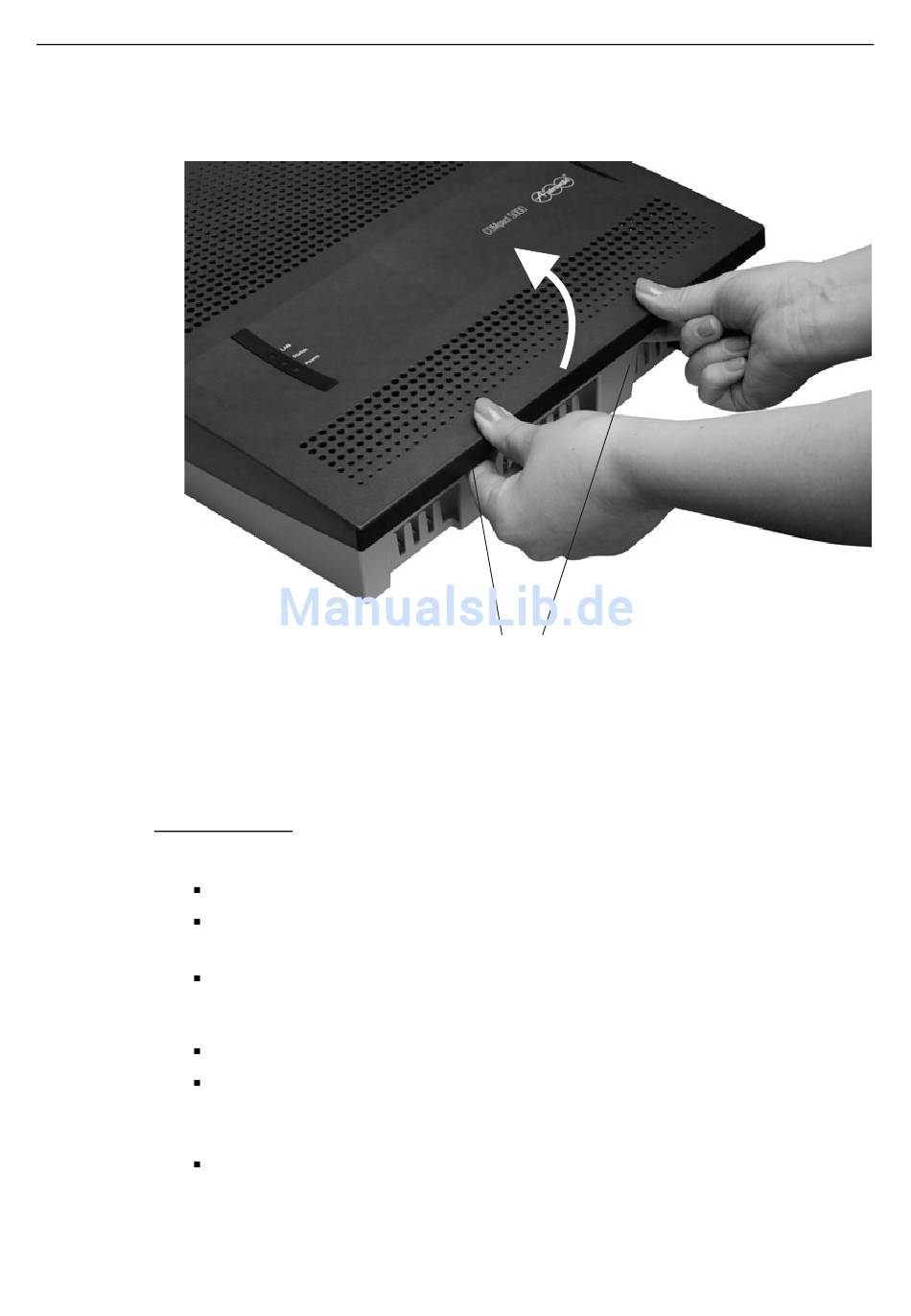

Fig. 10: Opening the casing

Wall Mounting of the PBX

Requirements
– Tools and material:
– Connections in the immediate vicinity of the installation site:
74
Drill and screw driver
The drilling template (see
ucts > PBX systems > COMpact 5000 > Documentation)
The screws and dowels included in the scope of delivery
Freely accessible 230 V Schuko socket
Wall socket or NT provided by the network provider; if the wall socket/NT
is relatively far away from the PBX, permanent cabling must first be laid
between the devices
Grounding conductor (potential compensation bar of the house installa-
tion or protective earth conductor)
Locks
