Installation Instruction

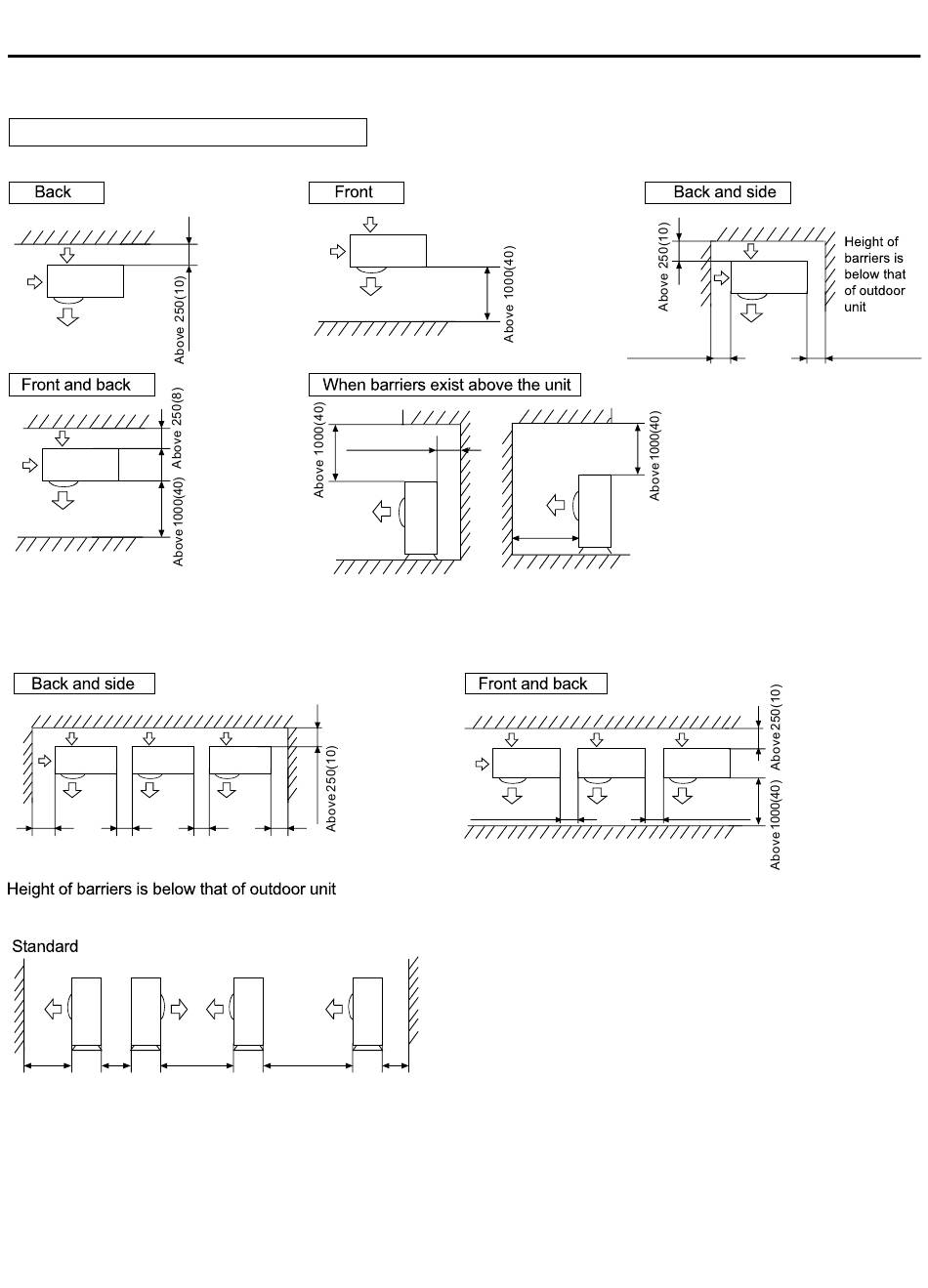

(2) Installation and maintenance space

Selection of installation location of outdoor

(1) Single-unit installation (unit: mm(in.))

The top and two side surfaces must be exposed to open space, and barriers on at least one side of the front and back

shall be lower than the outdoor unit.

(2) Multi-unit installation (unit: mm(in.))

(3) Multi-unit installation in front and back (unit: mm （in.))

• The installation service spaces shown in the illustrations are based on an air intake temperature of 95°F(35°C)(DB)

for COOL operation. In regions where the air intake temperature regularly exceeds 95°F(35°C)(DB), or if the heat load

of outdoor units is expected to regularly exceed the maximum operating capacity, reserve a larger space than that

indicated at the air intake side of units.

• Regarding the required air outlet space, position the units with consideration to the space required for the onsite water

pipe work as well. Consult your dealer if the work conditions do not match those in the drawings.

Above 500(20)

Above 2 000(80)

The top and two side surfaces must be exposed to open

space, and barriers on at least one side of the front and back

shall be lower than the outdoor unit.

Above 1 000(40)

Above 2 000(80)

Above 1 000(40)
