Assembly

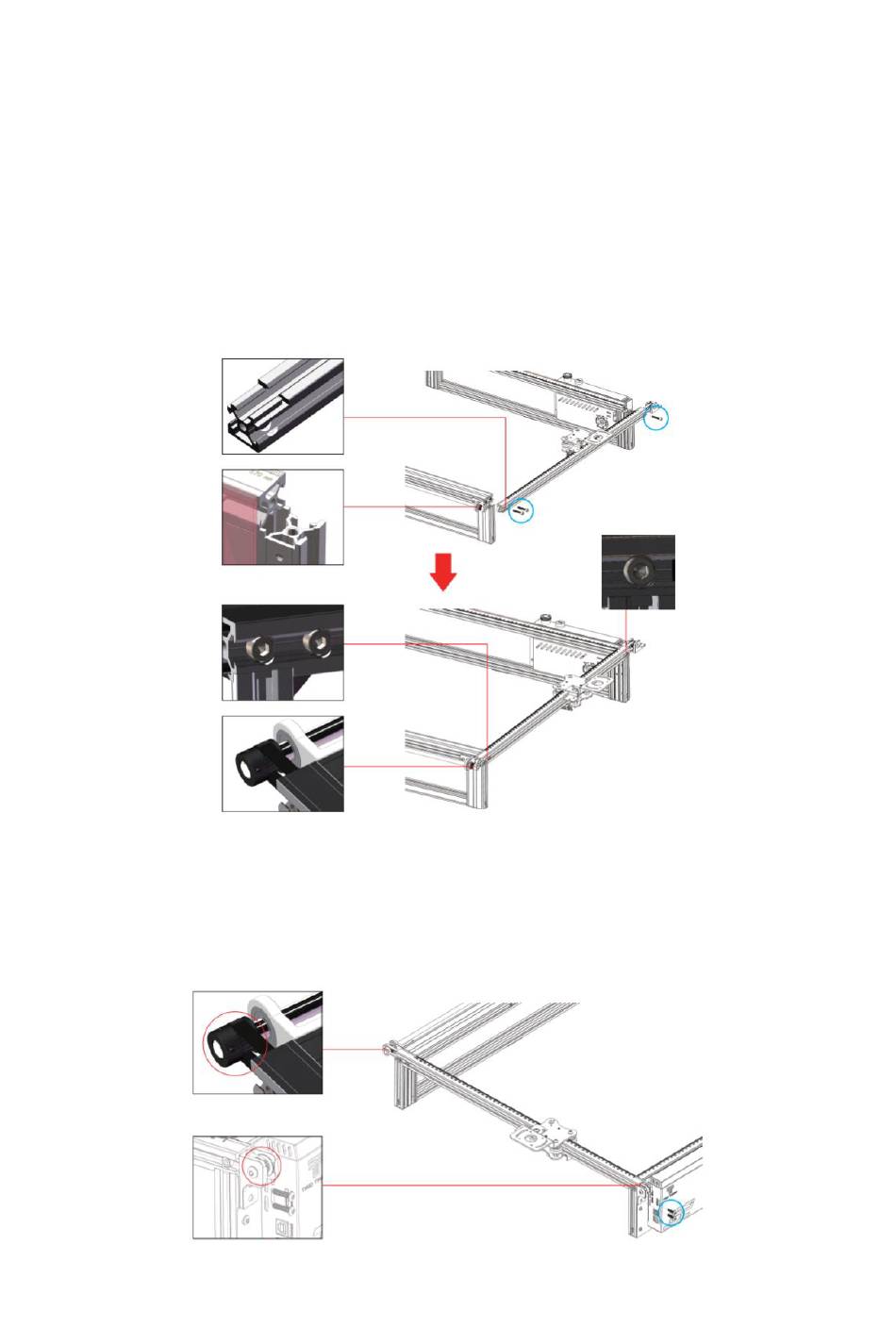

1.1 Install the Frames
Installation of Front Frame, Back Frame and Y-axis Left Frame
Front Frame x 1
Back Frame x 1
Y-axis Left Frame x 1
M5*25 Screw Bolt x 3
Please mind the buckle position of frame.
NOTE: Please set the Timing belt into Pulley groove and profile into buckle position
before tightening the screw bolts.
1.2 Installation of Y-axis Left Frame Timing belt & Idler Pulley
M4*16 Screw Bolt x 2
NOTE: Please set the Timing belt into Pulley groove before installing the Idler Pulley.
Synchronous wheel
Idler Pulley
